81 3G/HD/SD SDI to HDMI Converter
SDI Outputs
BrightEye 81 provides two SDI Output BNCs. When the SDI input receives 3G, HD or SD SDI, the
Out 1 and Out 2 BNCs output two identical copies of the input. When the input is HD Dual Link, using
both the Link A and Link B inputs, the HDMI output is HD 4:4:4 and two identical copies of 3G Dual
Link Level B are output on the Out 1 and Out 2 BNCs.
Connect to video destinations such as a router, production switcher, or broadcast monitor.
SDI Input
This BNC input accepts a 3 Gb/s HD SDI, 1.5 Gb/s HD SDI, or a SD SDI video signal.
Dual Link Inputs A and B
These BNC inputs accept a 1.5 Gb/s HD 1080i SDI Dual Link input.

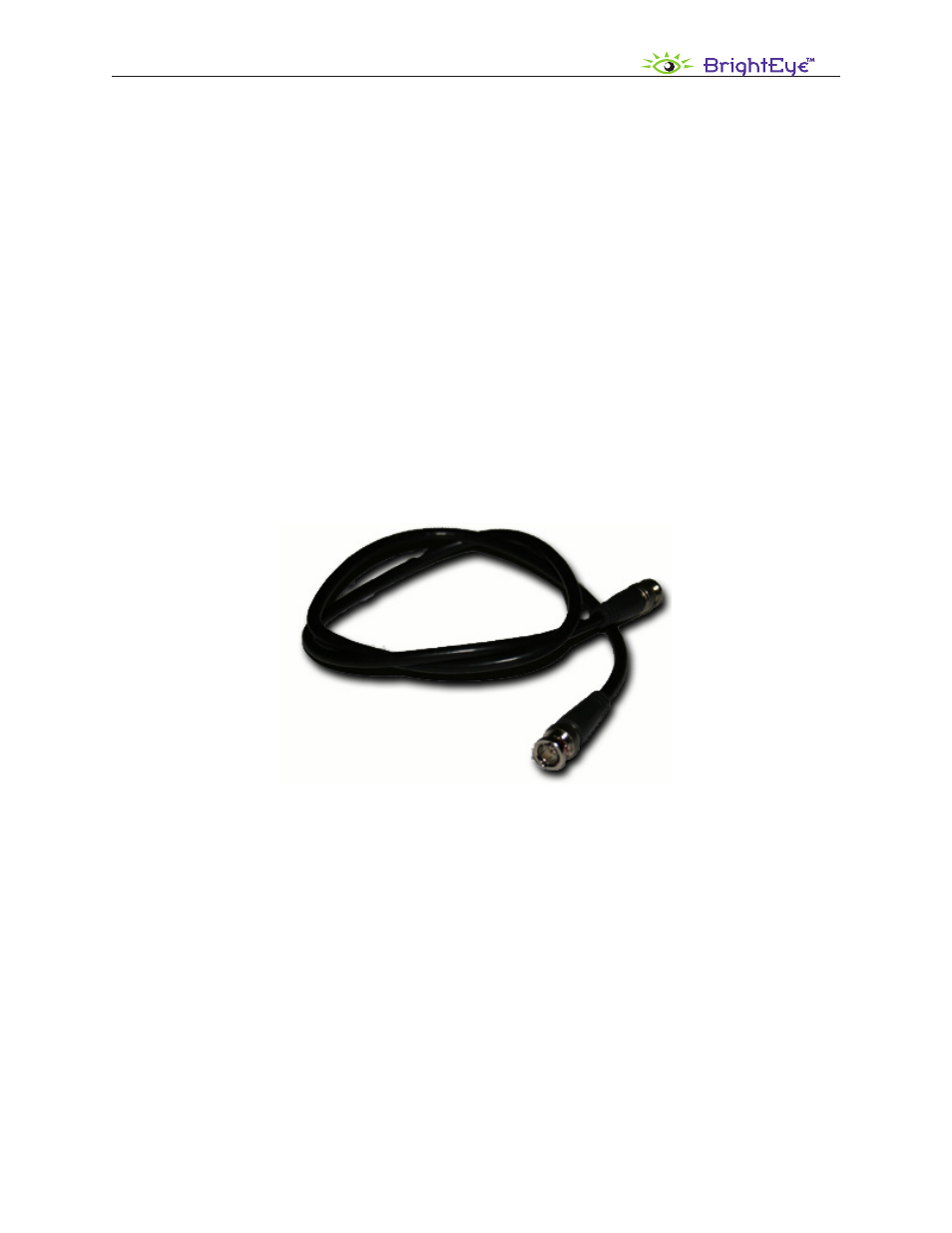

Example of a BNC cable
