Rear connectors – Ensemble Designs BrightEye 81 3G / HD / SD SDI to HDMI Converter User Manual
Page 7
www.ensembledesigns.com
BrightEye 81 - Page 7
81
3G/HD/SD SDI to HDMI Converter
Rear Connectors
All connections to the BrightEye 81 are made on the rear of the unit. Refer to the illustration below for
a snapshot reference. A more detailed explanation of the rear connectors follows.

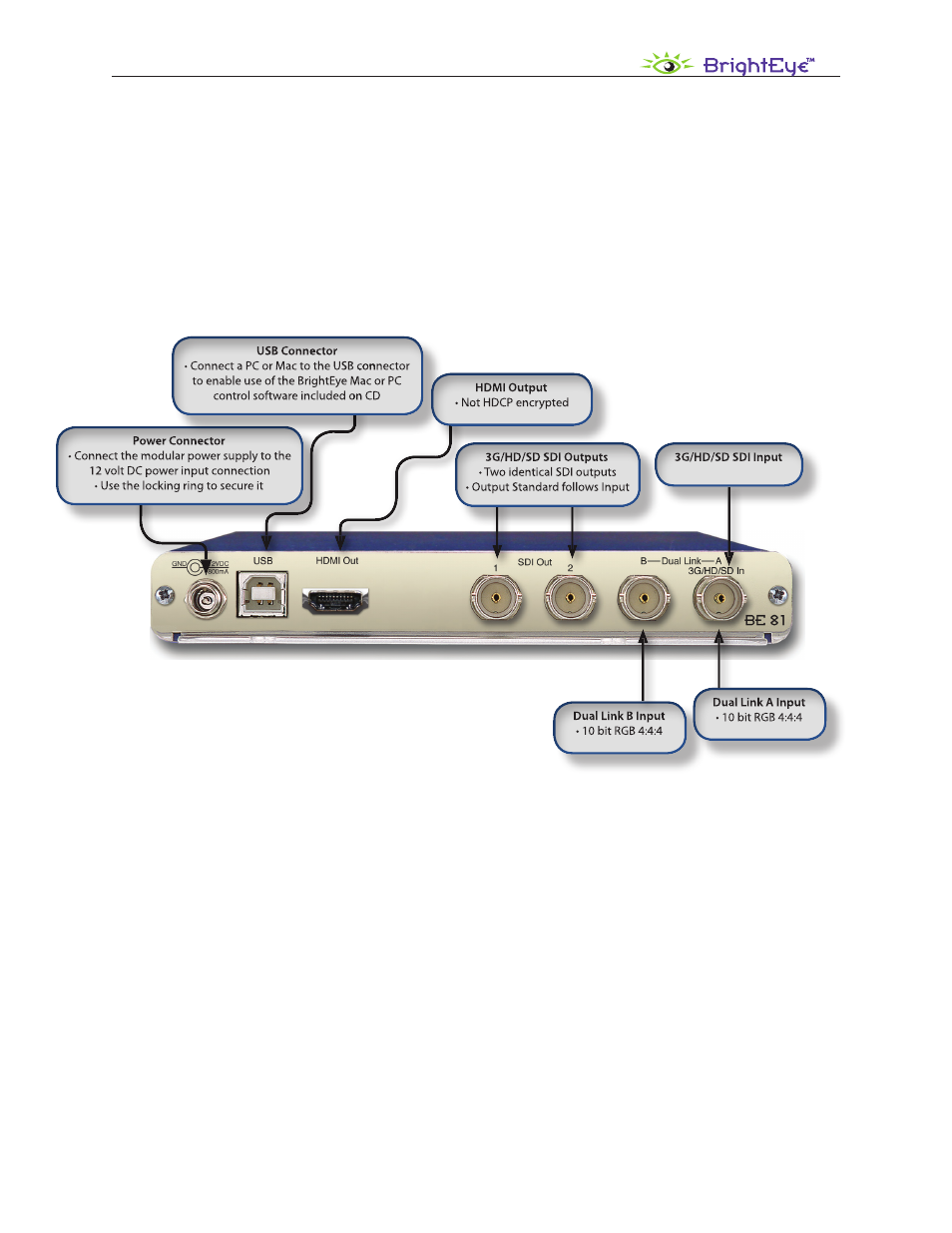

BrightEye 81 Rear View
