Model 7600 HD/SD AMD
7600-4
APPLICATIONS
There are four basic modes for using the 7600 module. Each of the modes is described
here.
8 Channels AES Audio in, Embedded HD or SD Out

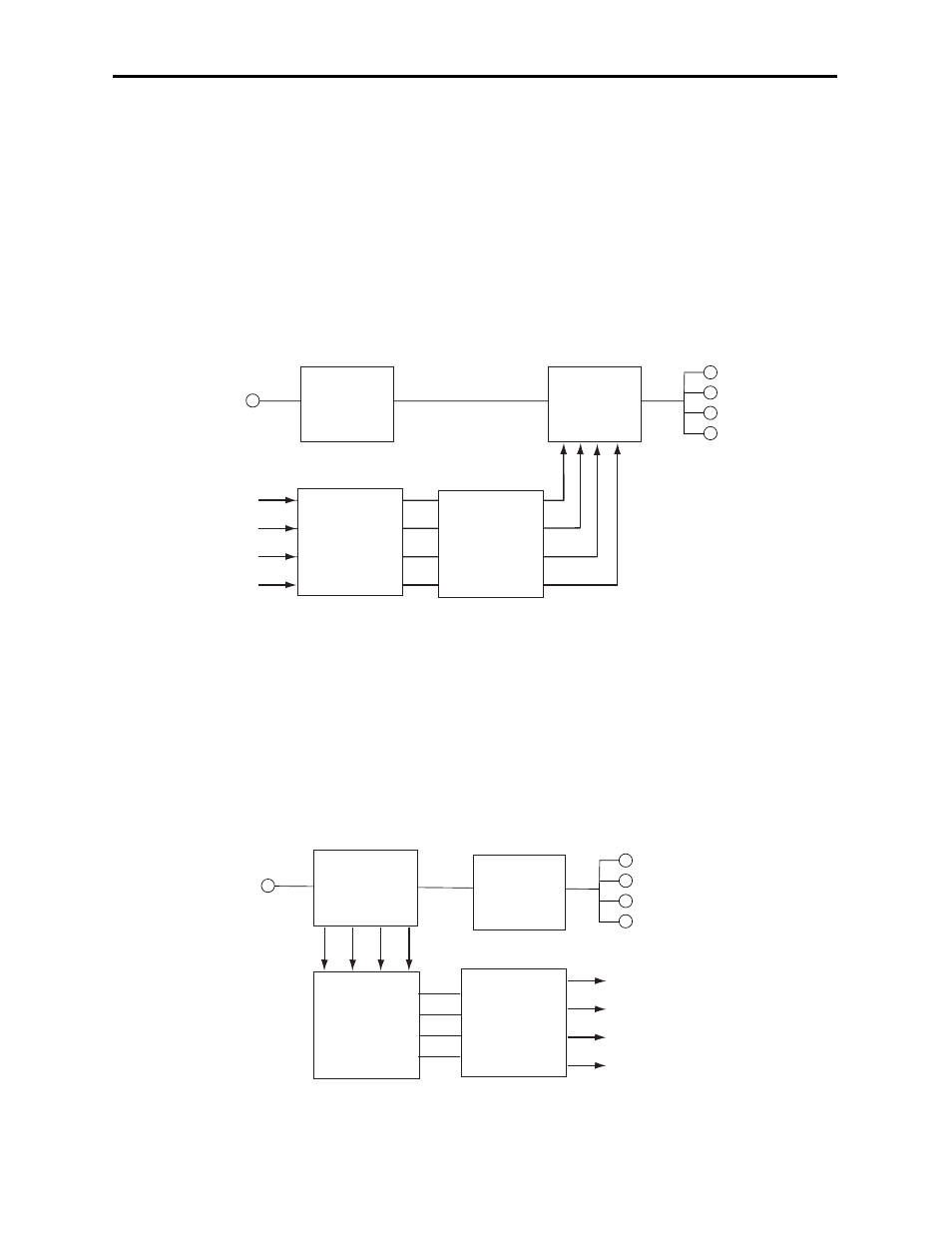

As shown in the block diagram below, the four AES audio input BNCs on the rear of the
frame can be used to input external audio which is then multiplexed into the HD or SD
output stream. To configure this mode, set the In 1/2, In 3/4, In 5/6, and In 7/8 controls in
the Aud In A and Aud In B menus to AES inputs. Inputs can be shuffled if desired using
the Aud Mix A and Aud Mix B menu. Inputs must be embedded into the output stream by
selecting the type of embedding and the audio group number in the Aud Out menu.
Embedded HD or SD Out, 8 Channels AES Audio Out
As shown in the block diagram below, the four AES audio input BNCs on the rear of the
frame can be used to output AES audio which has been disembedded from the HD or SD
input stream. To configure this mode, set the In 1/2, In 3/4, In 5/6, and In 7/8 controls in
the Aud In A and Aud In B menus to SDI inputs. Inputs can be shuffled if desired using
the Aud Mix A and Aud Mix B menus. Muxing must be set to Off in the Aud Out menu.
Ch 1/2
HD or SD
Video in
HD or SD
Video Out
Ch 3/4
Ch 5/6
Ch 7/8
2 Group
Embedder
2 Group
Disembedder
Rear
AES
BNCs
Audio Input
Selector
Audio Mixer
and
Output
Selector
8 Channels AES Audio In, Embedded HD or SD Out
Ch 1/2
HD or SD
Video in
HD or SD
Video Out
Ch 3/4
Ch 5/6
Ch 7/8
2 Group
Embedder
2 Group
Disembedder
Rear
AES
BNCs
Audio Input
Selector
Audio Mixer
and
Output
Selector
Embedded HD or SD Out, 8 Channels AES Audio Out
