4.)All Wiring To Be In Accordance With
Local And National Electrical Codes
And Specifications.
3.)Gasket Must Be Installed Under Cover
Plate To Provide Raintight Seal.
Rainwater Can Damage Sensor!
2.)Unused Conduit Opening(s) Must
Have Closure Plugs Installed And Must
Be Coated with Sealing Compound To
Provide Raintight Seal. Water Can
Damage Sensor!
1.)The Ambient Light Sensor Should
Be Installed Outdoors Where It Can
Sense The Ambient Light Level. Do
Not Mount In A Shady Area Or Near
Any Obstructions That Would Block
The Sensor Eye. The Ambient Light
Sensor Should Be Mounted On Its
Side In A Horizontal Position So
Water Will Not Puddle Around The
Sensor Eye.

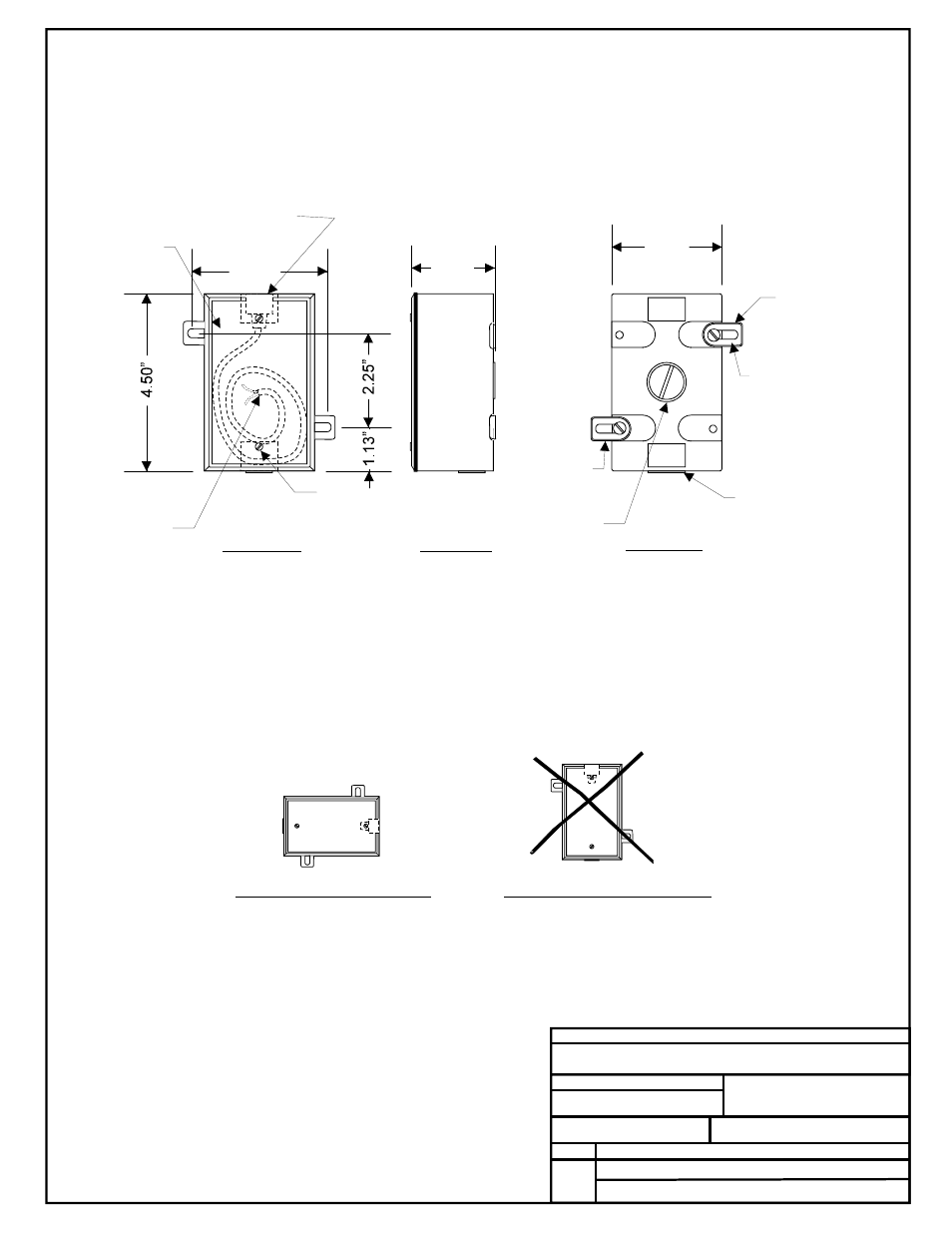

Ambient Light Sensor OE259
Notes:
Closure Plug
CAUTION!
See Note 2
Gasketed Cover
CAUTION!
See Note3
Ambient Light
Sensor Eye
Threaded Into
Water Proof
Enclosure
Cover
Mounting
Screw - Typ.
Sensor Wire
Leads Inside
Weather Proof
Enclosure
Mounting Tab
& Screw - Typ.
0.21" Dia. x 0.73
Lg. Slot - Typ.
3.00”
FILENAME
DATE: B. CREWS
DESCRIPTION: PAGE
DRAWN BY:
Ambient Light Sensor
1
JOB NAME
06/17/03
G-OE259-AmbLightSnsr1A.CDR
OE259
Front View Side View Back View
Correct Mounting Position Incorrect Mounting Position
Closure Plug
CAUTION!
See Note 2
Mounting Tab
& Screws - Typ.
2.70”
2.30”
The Ambient Light Sensor Is A Photo Sensitive Resistor Housed In A Water Proof Enclosure.
It Is Used In Conjunction With The OE310-21-LP Lighting Controller To Sense The Presence Or Absence
Of Ambient Light For The Control Of Lighting Circuits Connected To The Controller. The Sensor
Has A Resistance In Excess Of 1M Ohms In Darkness And Ranges Down To Less Than 1.5 K Ohms In
Bright Light. The Sensor Wire Connections Are Non-Polarized. See The OE310-21-LP Wiring Diagram For
Correct Wiring Connections. See Note 1 For Mounting Location Cautions.
