Form: WMS-OE415-IP-Link Ki-1A.doc
Page 1 of 1
VAV System
Description

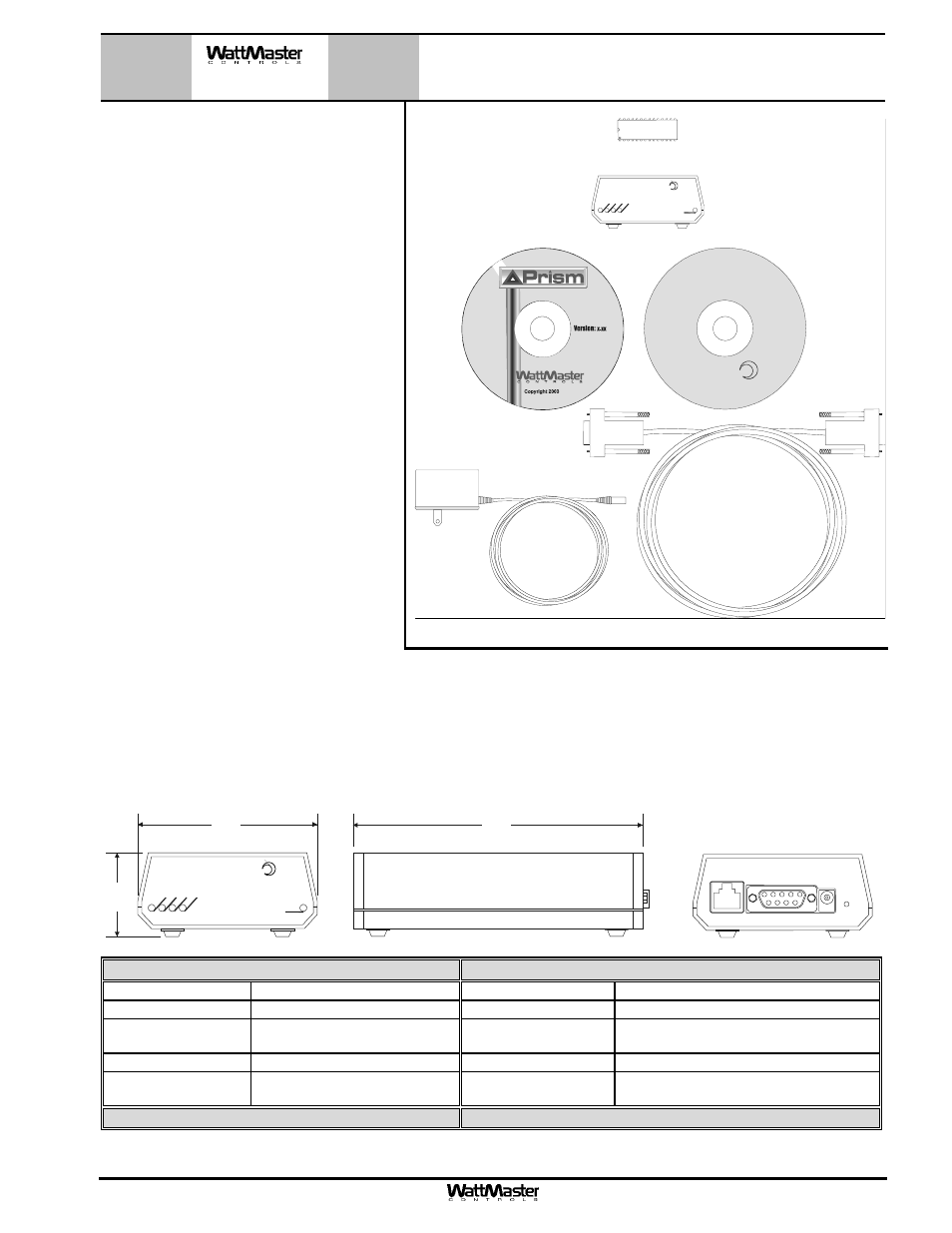

The OE415 IP-Link Kit is used to provide
TCP/IP Internet and/or intranet connec-
tion for Ethernet networked computer
systems allowing them to communicate
with the WattMaster VAV System through
the Commlink. The OE415 IP-Link Kit
Includes the IP-Link device with serial
cable, 110/9 Volt power supply, iLan
EPROM for the CommLink, WattMaster
Prism software CD and documentation,
Connect One firmware and documenta-
tion CD, and the IP-Link Technical Guide
and installation instructions.
The TCP/IP connection provided on the
IP-Link is a TCP connection on a single
port number and is static in nature.
Firewall and proxy servers can easily be
configured to allow traffic to and from the
IP-Link. The nature of the data is raw in
form and comprised of packets native to
WattMaster Prism software. The IP-Link
device will respond to ICMP traffic (PING)
for verification of proper configuration.
Prism software is required in order to
read and send data to the IP-Link and
through the CommLink to the WattMaster
VAV system. The CommLink must have
the included iLan EPROM chip installed to
communicate with the WattMaster VAV
system. The IP-Link connects to the CommLink via the supplied RS232 DB9 Serial Cable. The IP-Link connects
to the host Ethernet system by means of a 10BaseT, RJ-45 jack on the back of the IP-Link. Power is provided to
the IP-Link by the 110/9 Volt Power supply furnished in the kit. The kit also contains a firmware CD used for set-
ting up the IP-Link. Setup of the IP-Link requires a knowledgeable IT person familiar with configuring network
adapters and TCP/IP systems. WattMaster Prism software is included for installation to the local intranet or re-
mote Internet PC(s) that will be used to program and monitor the WattMaster VAV system.
PWR S E R R C V
L N K A C T
Connect ne
Computer Front End
Software & Manual
Connect ne
www.connectone.com
Firmware &
Documentation
Technical Data OE415 IP-Link Kit
Power Supply 9 Volt VDC, 350mA System Connection RS-232 DB9 Female Serial Port
Power Consumption 2 Watts Network Connection 10BaseT Ethernet – RJ-45 MDI Socket
Operating Temp 32
°
F to 158
°
F Internet Protocols ARP,IP,ICMP,UDP,TCP,DNS,DHCP,
SMTP, POP3, MIME, HTTP
Operating Humidity 90% RH Non-Condensing Standard Compliance Ethernet IEEE 802.3 10BaseT
Data Rate Up to 230 Kbps Flow Control Hardware (DTR, RTS, CTS, DCD) and
Software
1 Year Warranty WattMaster reserves the right to change specifications without notice
OE415 IP-Link Kit
PWR
S ER R C V
LN
K
A C T
Connect ne
9VDC
10BaseT
Serial
Mode
1.
50
”
3.25” 5.25”
