23

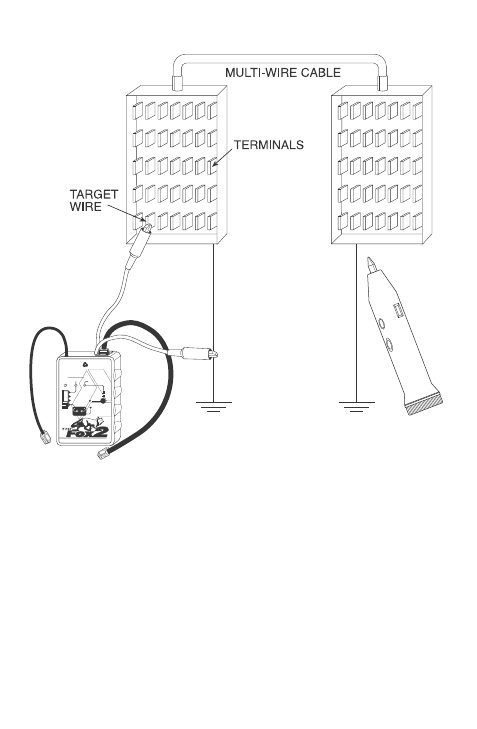

Figure 4
Helpful Hints:
Extension pieces of wire, or long clip leads, can be used to
connect the FOX 2 to a ground or fake ground. The exten-
sion wire can be hundreds of feet long if necessary.
To test a fake ground to see if it can be used for wire tracing,
connect one clip from the FOX 2 to the candidate object (like
a metal desk) and the other clip of the FOX 2 to the target
wire. Hold a HOUND or HOUND 2 near the object. A “good”
TRACER TONE
VISUAL CONT.
TALK
OFF / POLARITY
AUDIBLE CONT.
WARBLE PULSE
CORDLESS
INTERFACE
OVERLOAD PROTECTED
UNLOCK BATTERY TEST
AC / RING
TRIPLETT
REV NORM
PUSH
ON/OFF
– V O LU M E +
Grounded Method
(Line to Ground)
