To use the Cordless Interface, simply plug the Cordless
Interface’s RJ-11 plug into the base station of the cordless
phone to be used (see Figure 2). A modular extension cord
can be used if the cordless base station cannot be positioned
next to the FOX 2. Test the setup by setting the FOX 2 to
TRACER TONE, and turning on the cordless handset. The
tracer tone should be heard clearly in the handset. Momen-
tarily short the clip leads of the FOX 2 together. The cadence
of the tracer tone should change. Connect the clip leads to
the wires of interest. Proceed to other end of the cable, tak-
ing the cordless phone with you, and locate the target wires
by momentarily shorting the suspect wires together until the
cadence of the tracer tone heard on the handset changes.

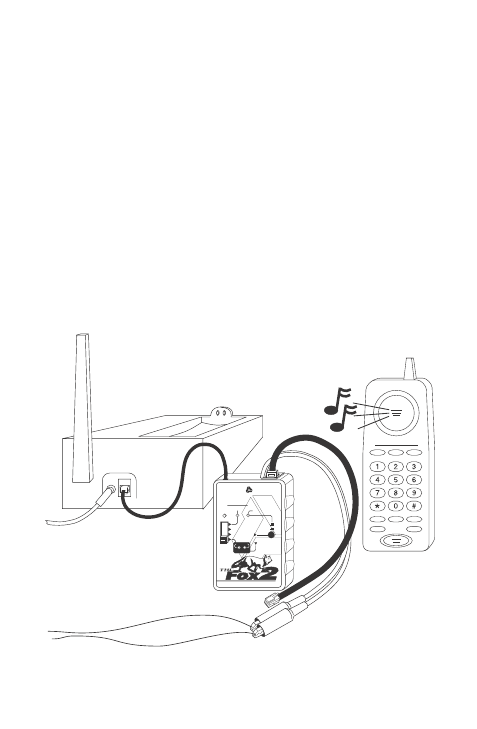

Figure 2
TRACER TONE
VISUAL CONT.
TALK
OFF / POLARITY
AUDIBLE CONT.
WARBLE
PULSE
CORDLESS
INTERFACE
OVERLOAD PROTECTED
UNLOCK BATTERY TEST
AC / RING
TRIPLETT
REV NORM
Cordless Interface
