17
Model 642SB Low Profile Clamshell
92-0612 Rev. 131230

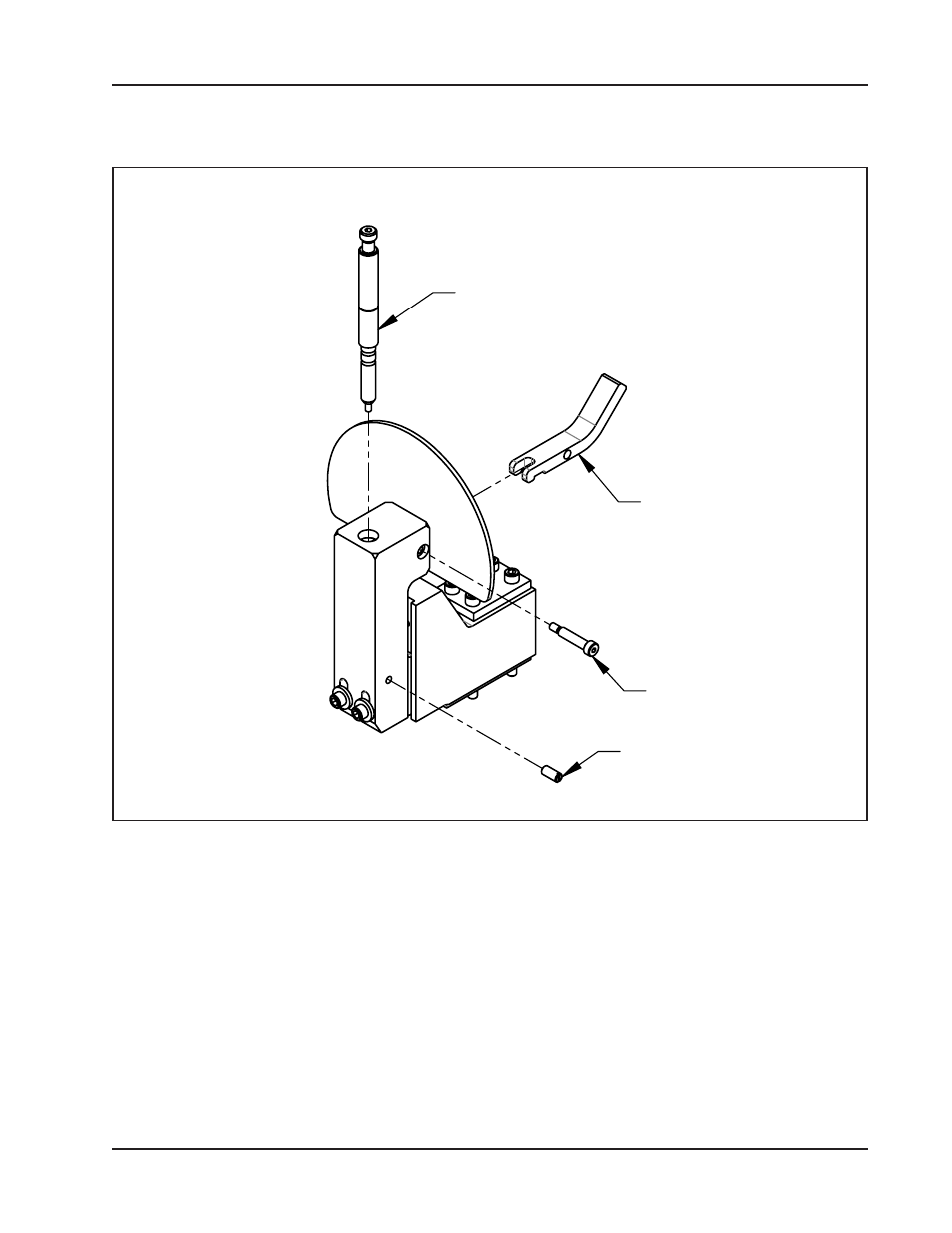

Tripper Shaft Installation
TRIPPER
LEVER
SHOULDER
BOLT
BALL PLUNGER
SET SCREW
TRIPPER SHAFT
ASSEMBLY
TRIPPER BLOCK ASSY LUBRICATION AND TRIPPER SHAFT ADJUSTMENT
Back off the Ball Plunger Set Screw until it disengages from the Tripper Shaft
Assembly.
Remove the Shoulder Bolt, and then remove the Tripper Lever.
Remove the Tripper Shaft Assembly from the block, and then degrease and clean all
parts.
Apply fresh lubrication to the Tripper Shaft Assembly and to the Shoulder Bolt.
Reassemble in reverse order.
