Pr
oduct
Information
11

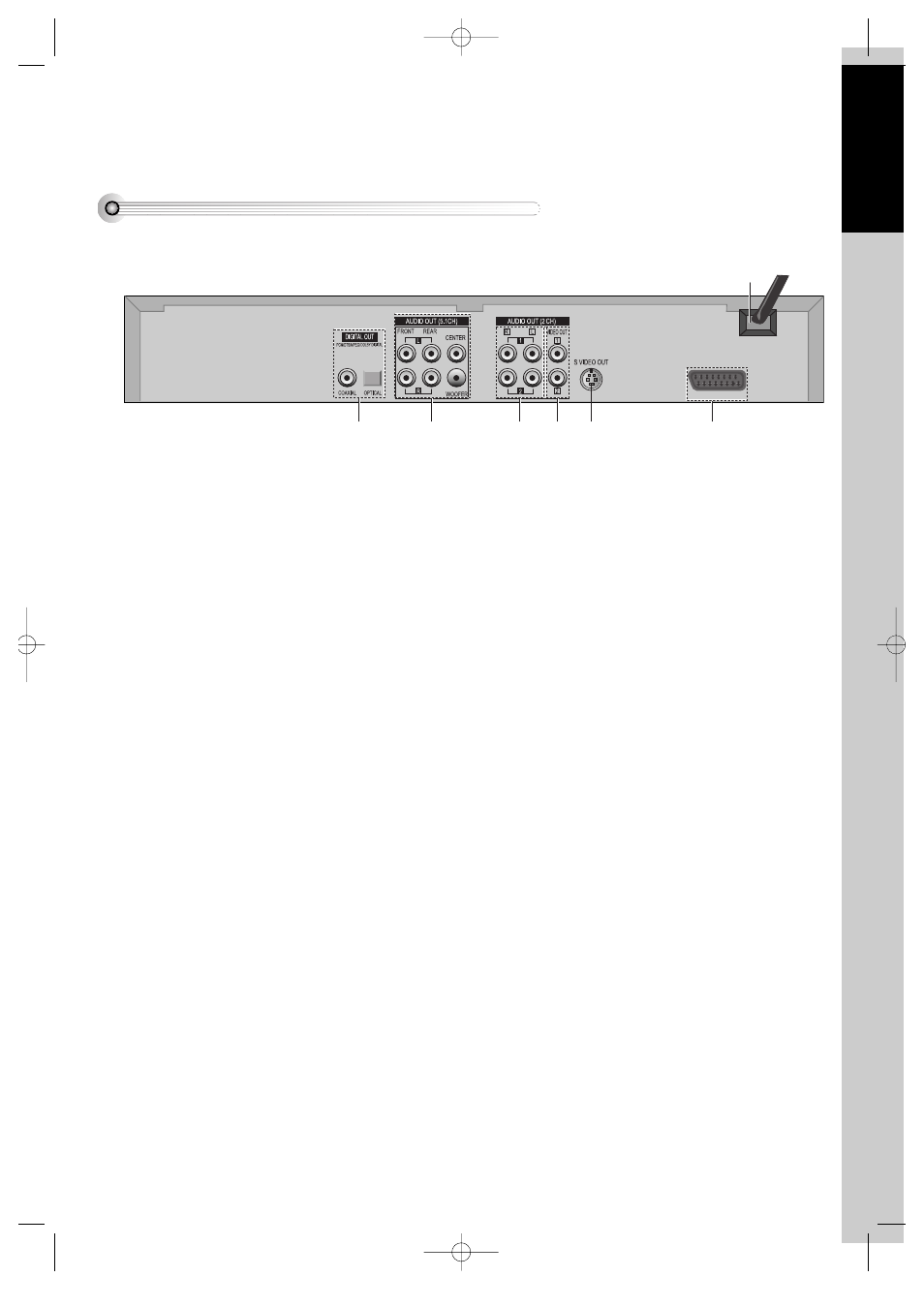

Main body (Rear Panel)
EURO AV
! % @ # $
&
^
! DIGITAL OUTPUT (COAXIAL, OPTICAL)
Jack
To enjoy sound quality of theatre level in home,
connect this jack with amp or unit embedded with
digital audio decoder.
@ 5.1 CHANNEL ANALOG AUDIO OUT
Jack
For Dolby digital and dts, total 6 channels are used; 3
channels for the front panel, 2 channels for surround,
and 1 channel for subwoofer.
These channels are located in right, left, centre of front
panel for 3 channels, right and left of rear panel for 2
channels, and centre of front panel for a channel. L
and R means left side and right side respectively,
CENTRE means central side, and SUB means
subwoofer.
# 2 CHANNEL (DOWNMIX) AUDIO OUT
Jack
$ VIDEO OUTPUT Jack
% S-VIDEO OUT Jack
To obtain better screen quality, connect and use the
unit to TV or monitor inputted from S-VIDEO.
^SCART Jack
& POWER CORD
It is a jack for supplying power to the unit. Connect to
outlet in a wall.
