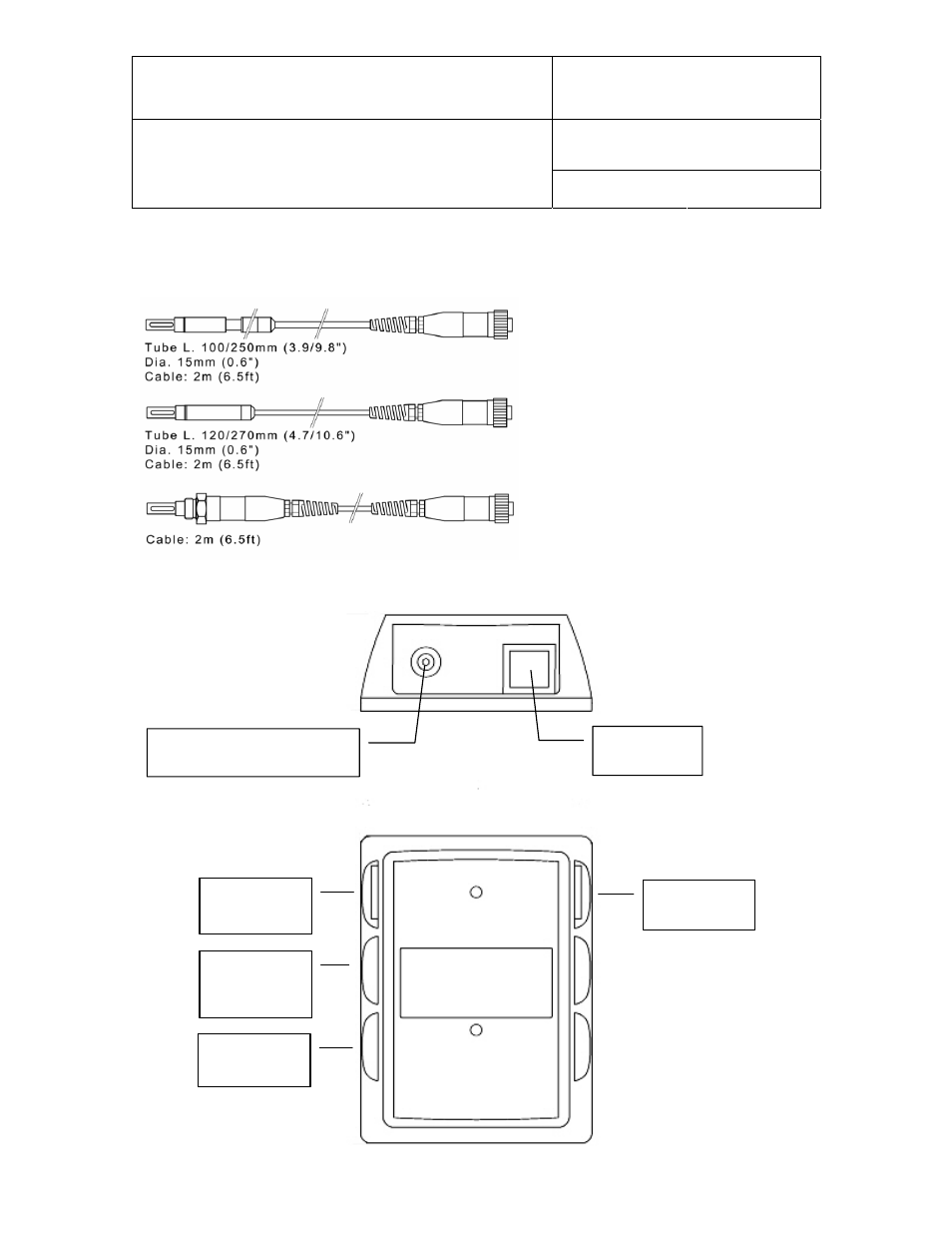

The following probes have a 7-pin connector. An adapter cable such as the T7-03-B5 is required
for connection to the HygroClip DI (see Accessories). Extension cable model AC1616 is not
compatible with the HygroClip DI.
HygroClip IC-1 (100mm) / IC-3 (250mm)
for through-wall installation
max. 200
°C (392°F) - wire mesh filter
HygroClip IM-1 (120mm) / IM-3 (270mm)
for through-wall installation in high humidity
applications
max. 200
°C (392°F) - wire mesh filter
HygroClip IE-1 (G ½”) / IE-3 (NPT ½”)
for compressed air (max. 50 bar / 725 PSI)
max. 85
°C (185°F) – sintered steel filter
to avoid errors, temperature should be the
same on both sides of the mounting wall
5. Connector identification
Receptacle for AC Adapter
(+ center) USB Port
(DI-3)
Input 2
(P6) Input 1
(P4)
RJ45 (DI-4)
Antenna
(DI-4-WL)
RS-485
