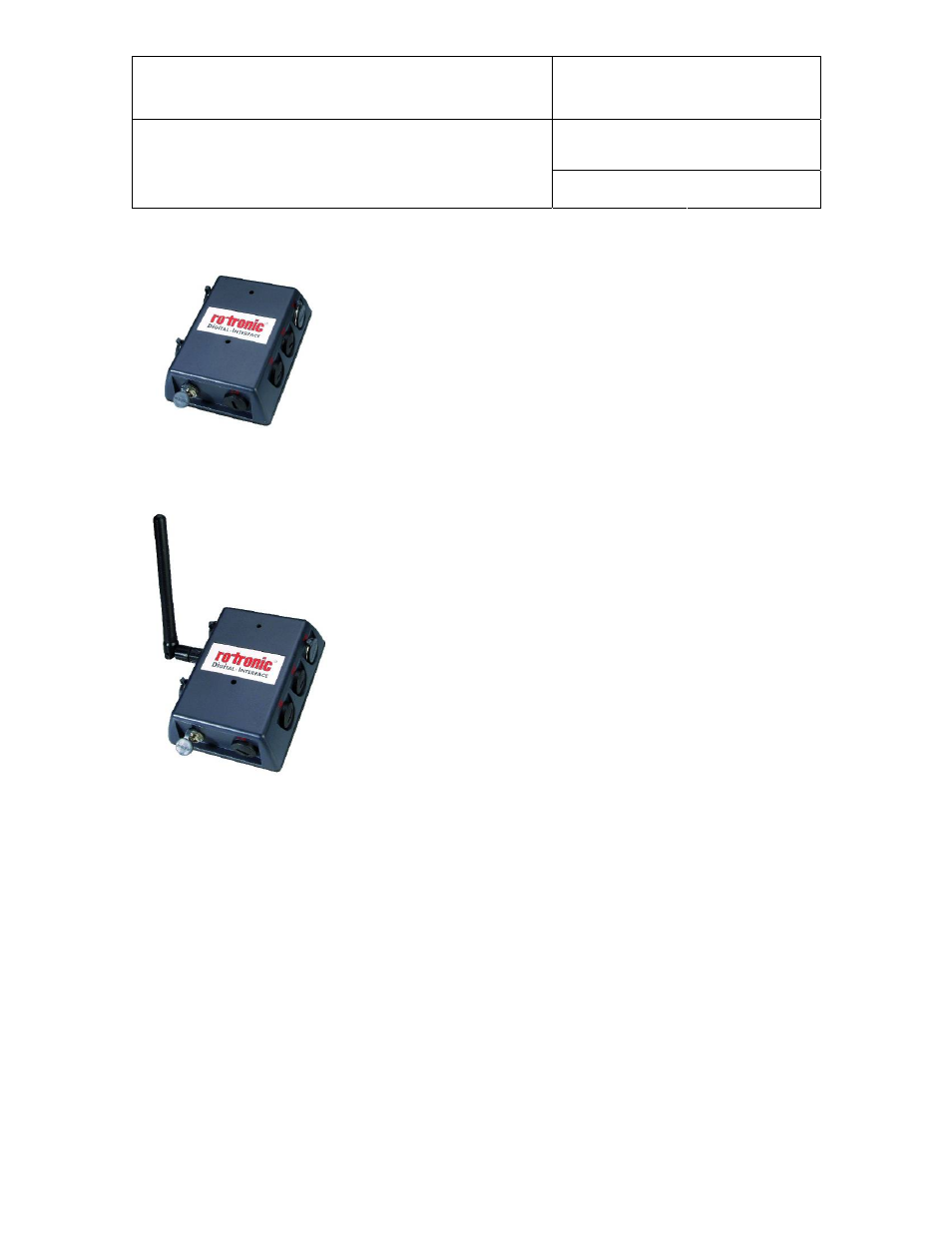

HygroClip DI-4
• RJ45 port (wired Ethernet LAN)
• Two probe inputs (HygroClip probes)
• RS-485 port (4-pin connector: TX +, TX - , DC in, GND)
• Receptacle for AC adapter
HygroClip DI-4-WL
• Wireless TCP/IP interface
• Two probe inputs (HygroClip probes)
• RS-485 port (4-pin connector: TX +, TX - , DC in, GND)
• Receptacle for AC adapter
3. Power supply
The HygroClip DI is shipped with a regulated 12 VDC / 100…240 VAC adapter (170 mA).
4. Probes
The HygroClip DI is designed for use with the ROTRONIC HygroClip digital humidity temperature
probes. These are highly accurate probes which are adjusted entirely by means of software (no
potentiometers). Because calibration and other data are stored in the probe non-volatile memory,
the probes are fully interchangeable. When a probe requires adjustment / calibration or has to be
repaired, it can be replaced with another probe in a few seconds.
The ROTRONIC HygroClip digital probes are available in different configurations so as to meet
the requirements of each application.
The following probes have a 5-pin DAT-05 connector. An extension cable such as the MOK-02-
B5 is required to connect these probes to the HygroClip DI (see Accessories):
