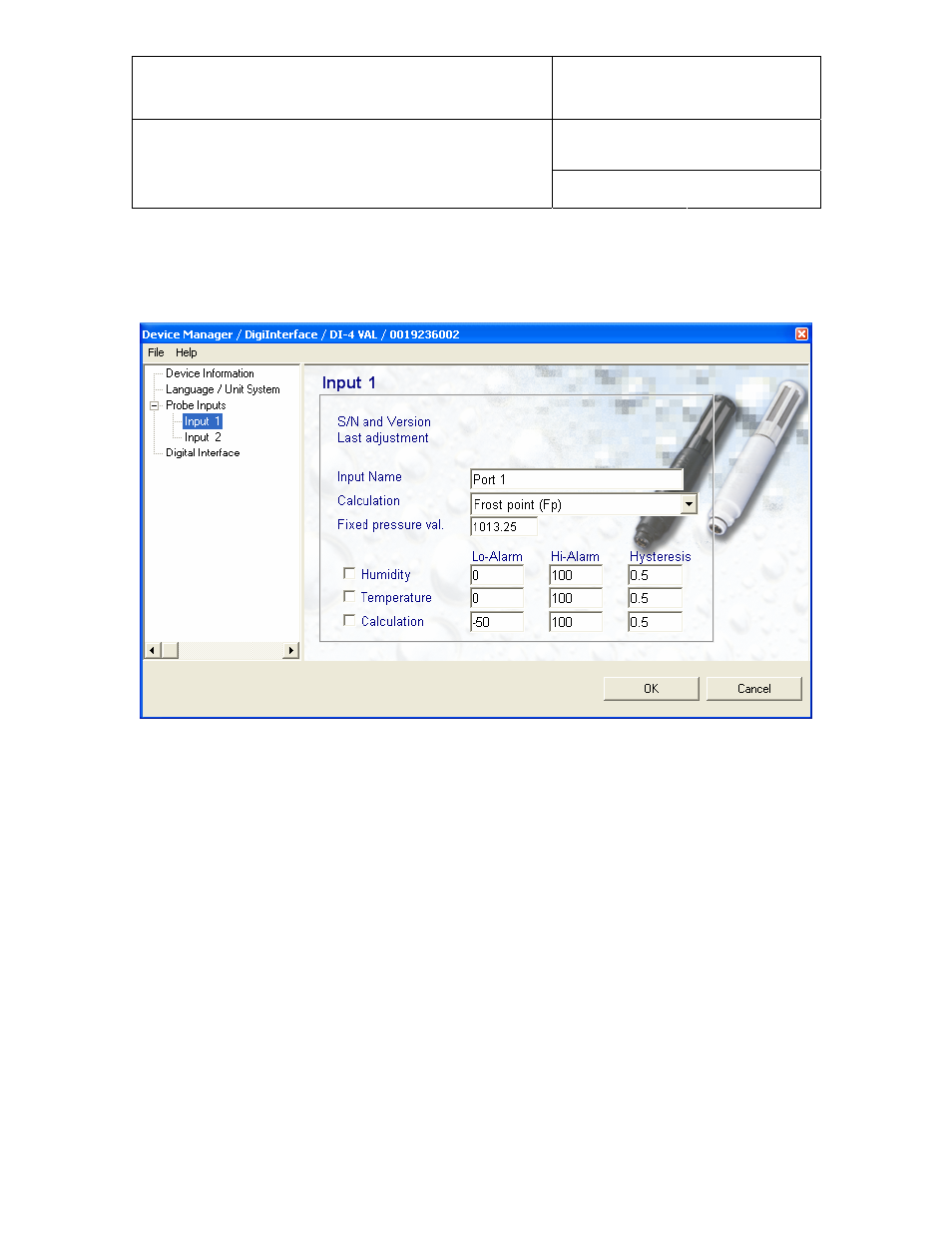

Probe Inputs
Clicking on the plus sign to the left of “Probe Inputs” expands the tree and displays probe inputs 1
and 2.
Note: the HygroClip DI accepts HygroClip probes only.
● Input Name: use a maximum of 12 characters
● Calculation: Each probe input of the HygroClip DI can be set to compute one of the
following psychrometric parameters:
Dew point (Dp)
Frost point (Fp)
Wet bulb temperature (Tw)
Enthalpy (H)
Vapor concentration (Dv)
Specific humidity (Q)
Mixing ratio by weight (R)
Vapor concentration at saturation (Dvs)
Vapor partial pressure (E)
Vapor saturation pressure (Ew)
Left click on the arrow to the right of the list box and select the parameter to be calculated by
the HygroClip DI for this particular probe. This is also the calculated parameter that HW4 will
display for this probe.
