Preparing Solution for Touch Screen
There are two main ways to prepare the Solution to be run on the SSi touch screen:
1. Sending the Solution from Compact HMI Editor directly to the touch screen device; and
2. Exporting the device files to a storage device and copying the device files to the
CompactRealtime on the touch screen’s storage medium.
These methods are described in more detail in the Exporting for the Touch Screen and
Interacting with the Touch Screen sections.
Once the designer has verified that all of the Panels have been set up properly, the designer can
prepare the Solution for use on an SSi touch screen. (The Solution can also be implemented on
the touch screen for testing purposes, when needed.)
Suppose the designer decides to utilize method #2 (exporting and copying the device files to the
touch screen’s storage medium). The designer follows these steps:
1. Save Solution in Compact HMI Editor (using File  Save or File  Save As).
2. Using the Tools  Export Device Files option, export the device files to a USB drive or
other storage medium. This process is depicted in Figure 55.

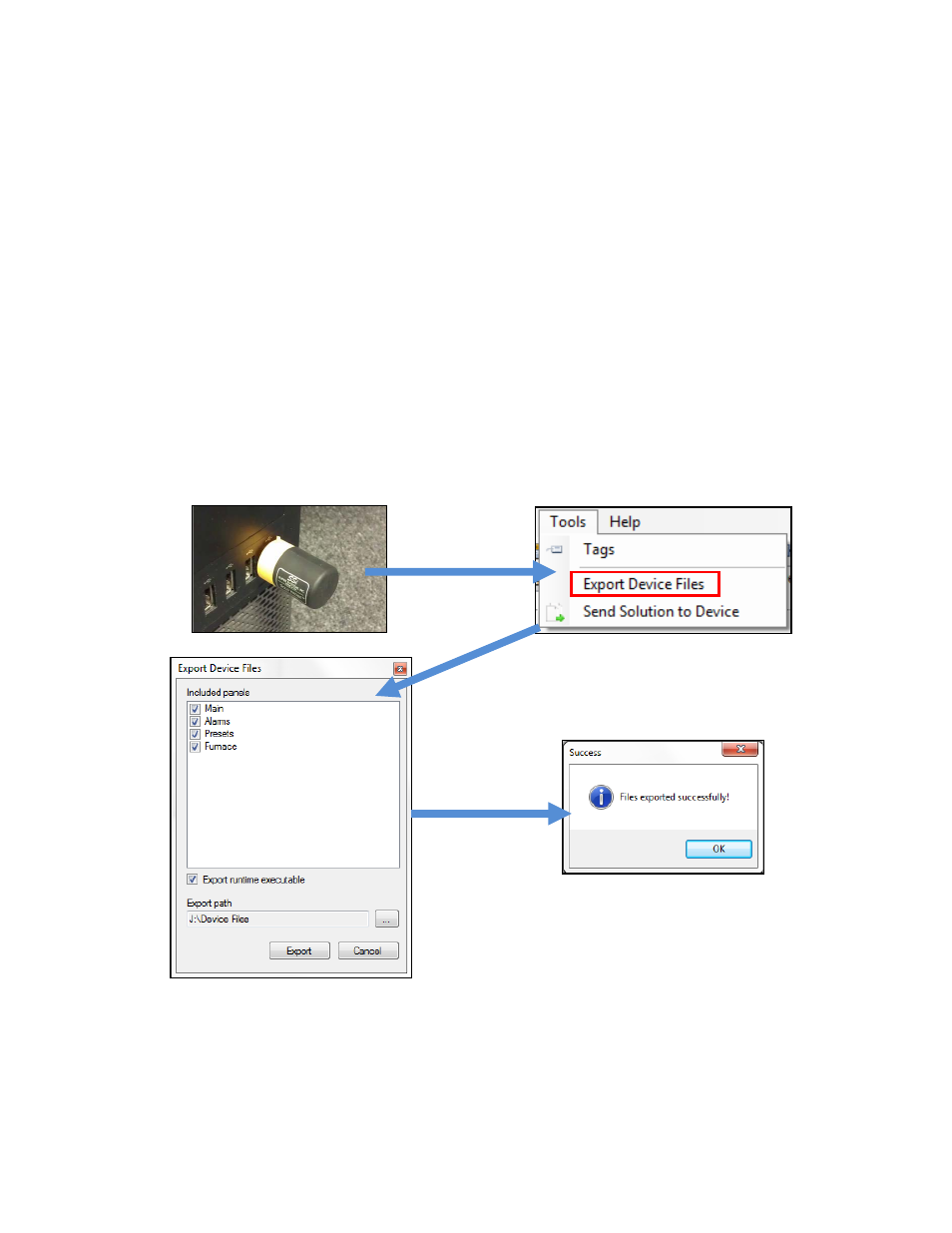

Figure 55 - Exporting Device Files
