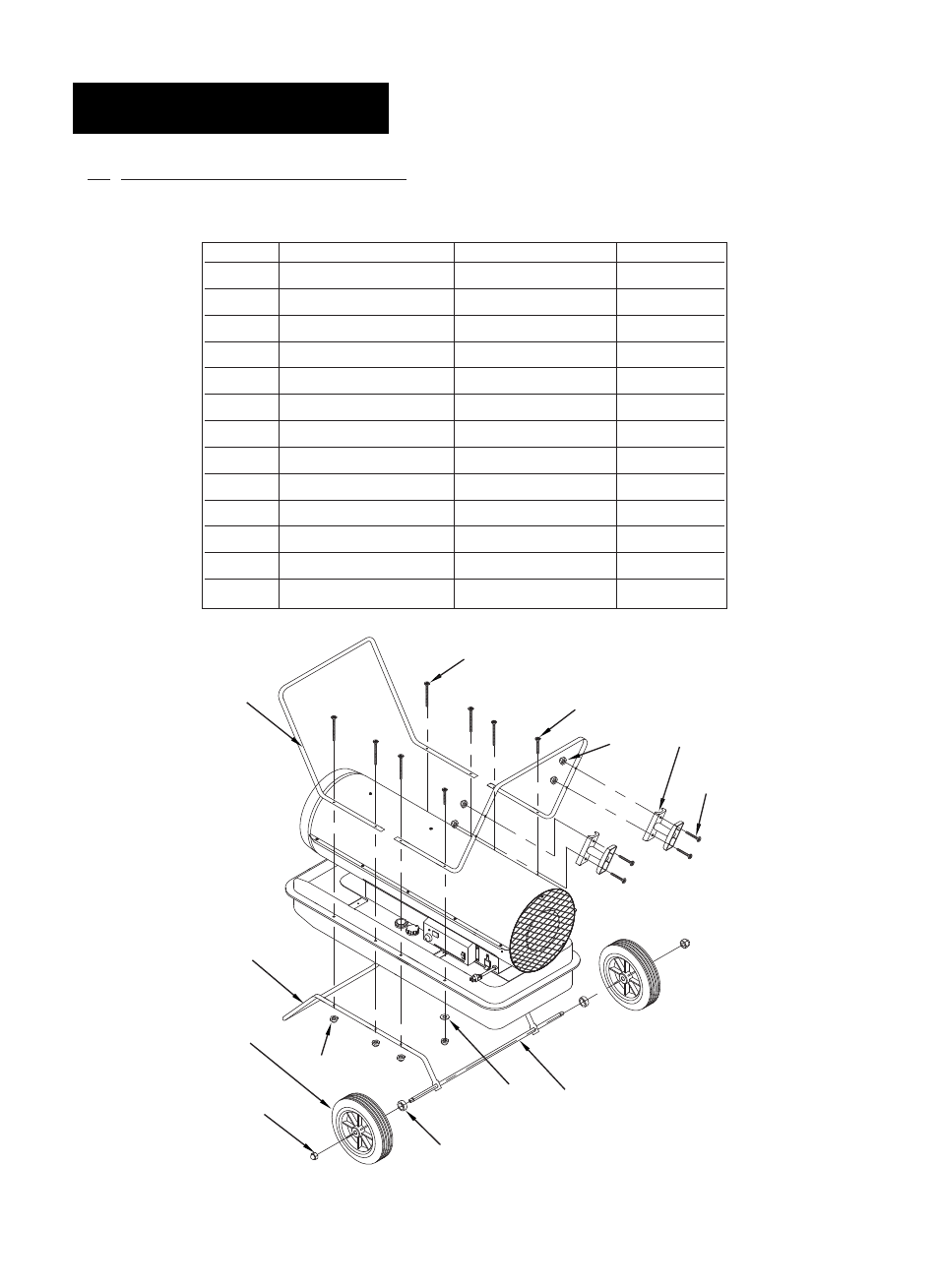

15 . PARTS LIST (Wheel and Handle)
NOTE: SPECIFY MODEL NUMBER AND PART NUMBER WHEN ORDERING PARTS.
KEY NO. DESCRIPTION PART NO. QTY
1 Wheel Support Frame 3551-0098-00 1
2 Handle 3551-0036-00 2
3 Cord Wrap 3221-0052-00 2
4 Threaded Axle 3541-0096-00 1
5 Wheel 3720-0004-00 2
6 Hardware Kit HW-KFA1019 1
6-1 Screw (L) INCLUDED IN HARDWARE KIT 6
6-2 Screw (S) INCLUDED IN HARDWARE KIT 6
6-3 Nut INCLUDED IN HARDWARE KIT 8
6-4 Cap Nut(S) INCLUDED IN HARDWARE KIT 4
6-5 Bushing INCLUDED IN HARDWARE KIT 2
6-6 Flat Washer INCLUDED IN HARDWARE KIT 2
6-7 Cap Nut(L) INCLUDED IN HARDWARE KIT 2
21
6-6
6-4
6-5
5
1
6-3
2
6-1
4
6-3
6-2
6-2
3
