NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
G.) FUEL FILTER
CLEAN TWICE PER HEATING SEASON OR AS NEEDED.
Tank Fuel Filter
Pump Fuel Filter
- Remove fan guard.(See page 11)
- Unscrew (C.W) filter bottom from filter top
with adjustble pliers.
- Remove fuel filter, gasket, magnet from filter
bottom.(See Figure 15)
- Wash filter bottom with clean kerosene .
- Wipe inside of filter bottom dry with clean cloth.
- Wash Fuel filter in clean kerosene.
- Remove dirt attached magnet.
- Put clean magnet, fuel filter and gasket back in
filter bottom.
- Tighten firmly.
FILTER BOTTOM
MAGNET
FUEL FILTER
GASKET
FILTER TOP

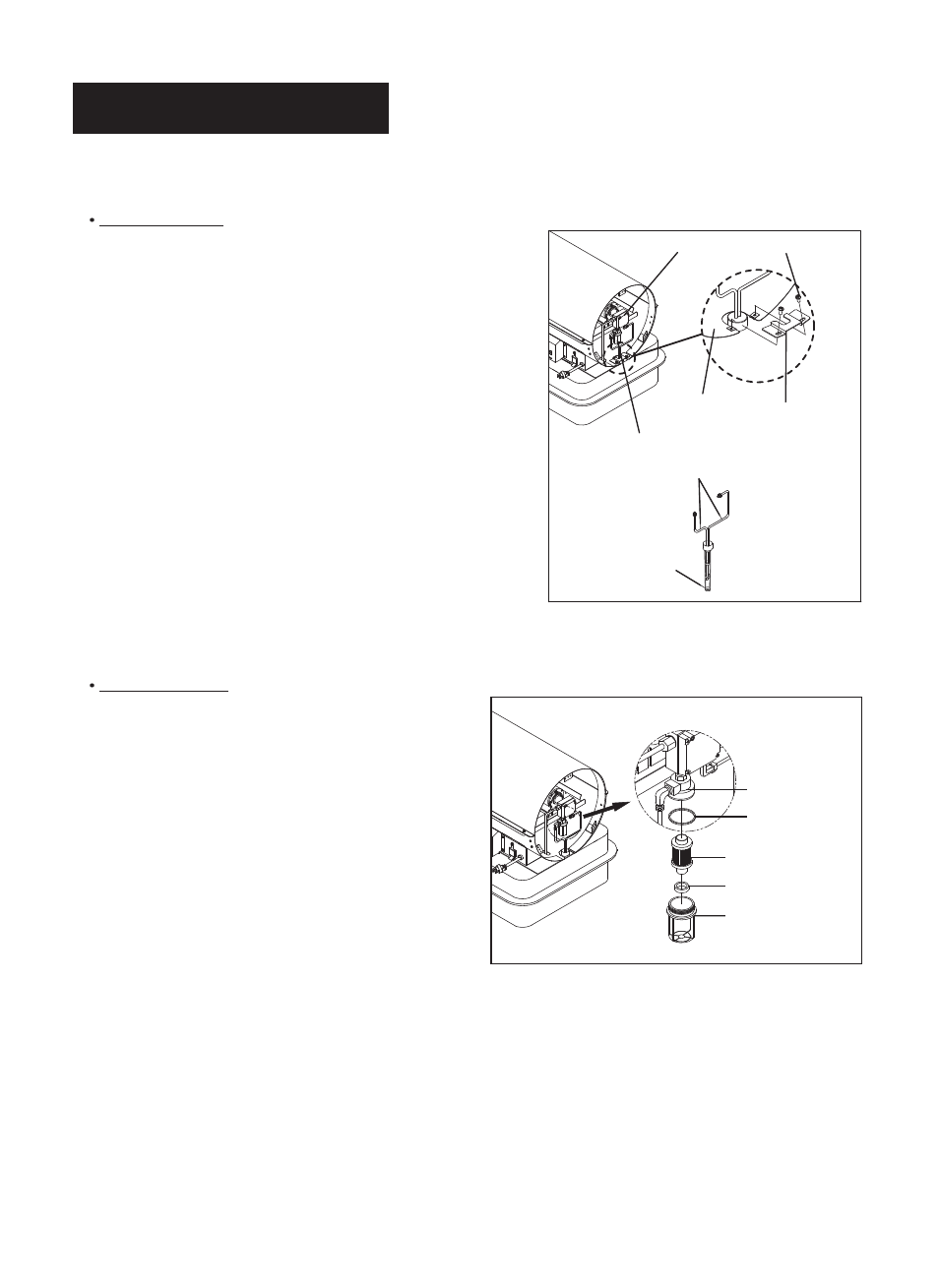

Figure 14. Remove Tank Fuel Filter
Figure 15. Fuel Pump Filter
- Remove fan guard (See Figure 11).
- Disconnect fuel line (B) from pumpand pump
fuel filter assembly with3/8” wrench (See Figure
14).
- Remove two screws that fix bracket-filter to shell
lower and remove bracket-filter.
- Carefully pry fuel filter loose from fueltank with
flat end of screwdriver.
- Wash fuel lines and fuel filter with clean
kerosene.
- Replace fuel filter into fuel tank.
- Replace bracket-filter to shell lower.
- Connect fuel lines (B) to pump and pump fuel
filter assembly.
- Reinstall fan guard.
SHELL LOWER
BRACKET-FILTER
SCREW PUMP
PUMP FUEL FILTER ASSEMBLY
FUEL LINE(B)
FUEL FILTER
