Removing the Display Hinges

1.

Follow the procedures in

Before Working Inside Your Computer

.

2. Remove:

a.

battery

b.

optical-disk drive

c.

access panel

d.

hard drive

e.

memory module

f.

keyboard

g.

system board

h.

display assembly

i.

display bezel

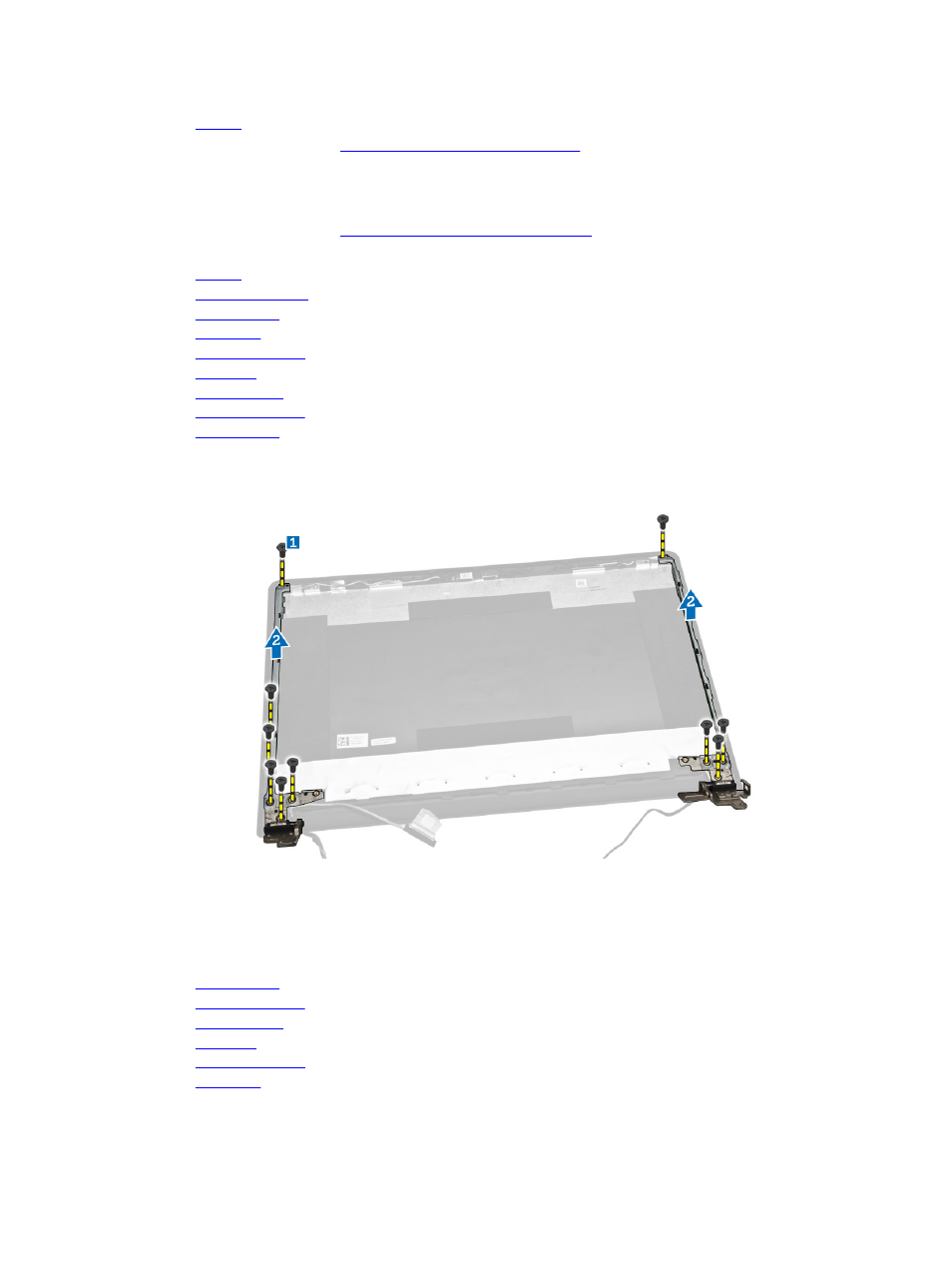

3. Perform the following steps as shown in the illustration:

a. Remove the screws that secure the display hinges to the display assembly [1].
b. Remove the display hinges [2].

Installing the Display Hinges

1.

Tighten the screws to secure the display hinges to the display assembly.

2. Install:

a.

display bezel

b.

display assembly

c.

system board

d.

keyboard

e.

memory module

f.

hard drive
