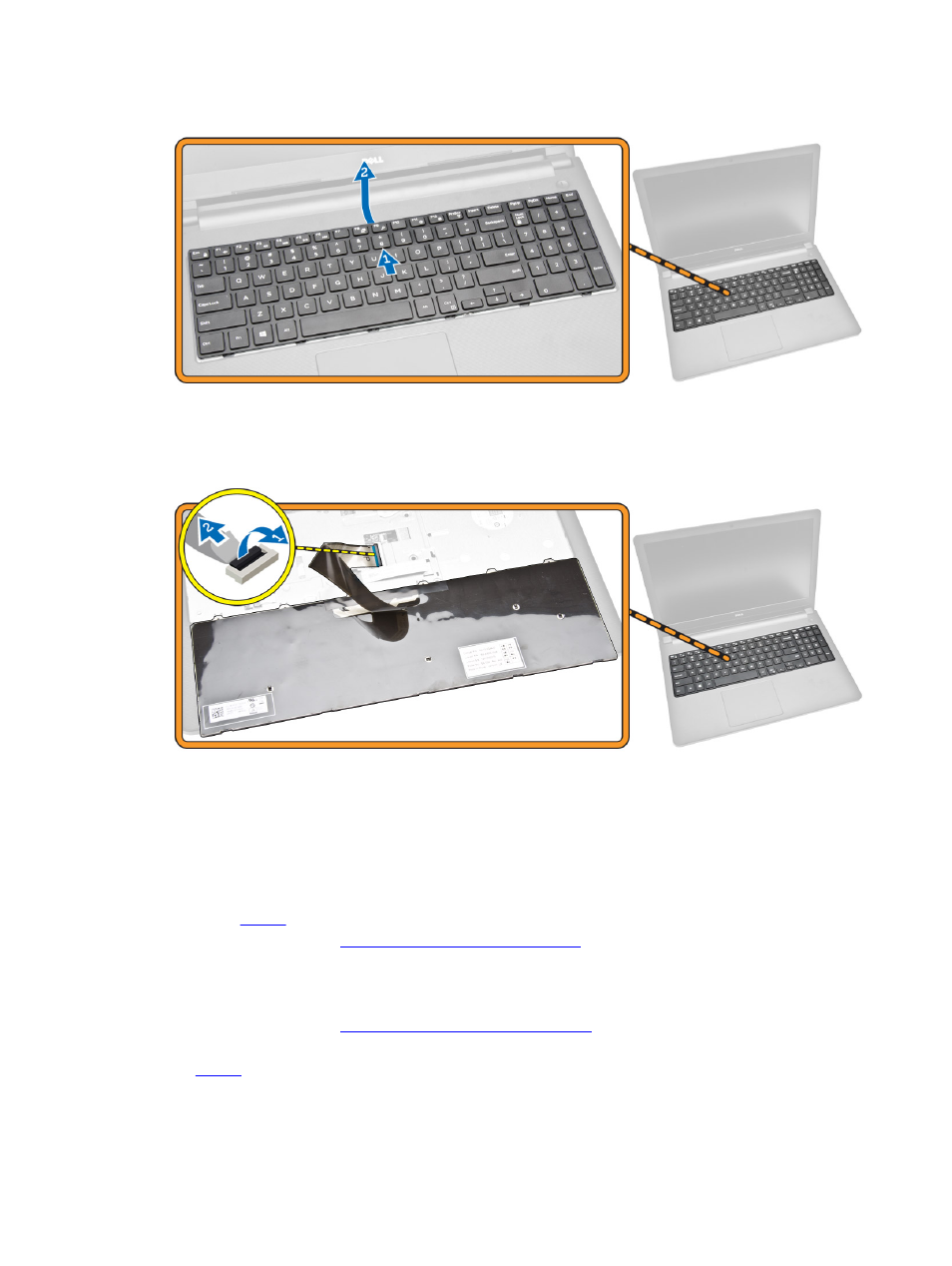

5. Perform the following steps as shown in the illustration:
a. Disconnect the keyboard cable from the system board [1].
b. Lift the keyboard cable to remove it from the computer [2].
Installing the Keyboard
1.
Connect the keyboard cable to the connector on the system board.
2. Slide the keyboard into the retention slots.
3. Press along the top edges to lock the keyboard in place.
4. Install the
After Working Inside Your computer
Removing the Base Cover
1.
Before Working Inside Your Computer
2. Remove:
a.
15
