Scotsman FDE474 - Manual (Page 7)

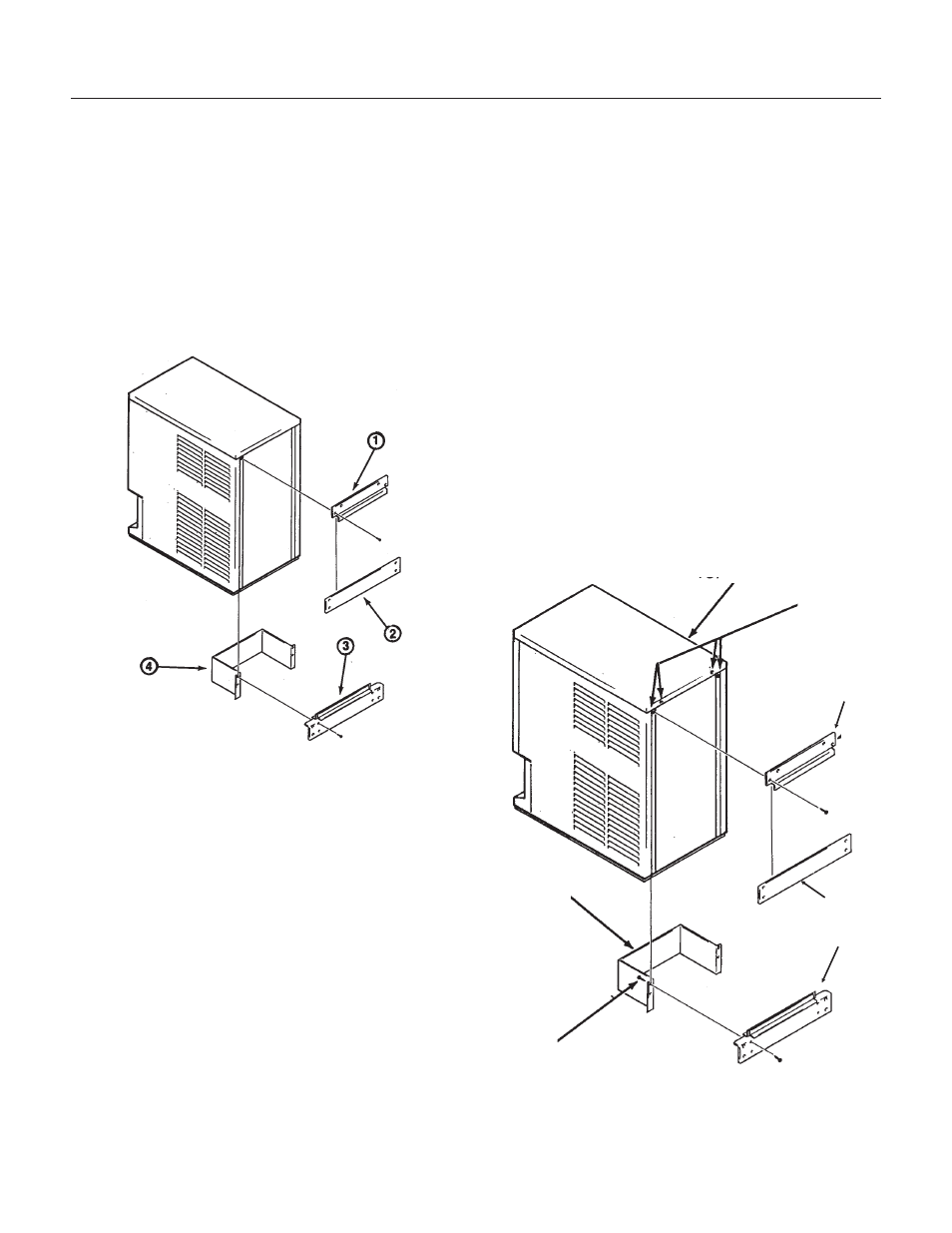

Wall Mount Kit (KWB1):
Contents:
1. Top Case Hanger Bracket: Attaches to the frame
of the dispenser.
2. Top Wall Bracket: Mounts to the wall and
engages the top case hanger bracket to support
the dispenser.
3. Bottom Wall Bracket: Mounts to the wall and
spaces the base of the dispenser away from the
wall.
4. Bottom Fittings Cover: Fastened to the bottom
wall bracket to hide the utility connections.
Installation: Check building wall for the strength
required to support a machine of the FDE474’s
weight and size. Note that if at least 6" of space is
not left above the machine, cleaning and most
service of the machine will require removal of the
machine from the wall mounts. All utilities are to be
routed thru the base. The back panel is not used
when the machine is hung from the wall.
Top Case Hanger Bracket
1. Remove top panel.
2. Remove back cover and save the 4 screws for
mounting the bracket.
3. Drill out the holes (as marked in the illustration)
in the back of the frame with a 3/16" drill bit.
4. Place top hanger bracket on the inside of the
frame and fasten to the frame with the four
screws removed in step 2.
Top Wall Bracket:
1. Hold the bracket on the wall where it will be
mounted.
2. Mark on the wall the positions of the holes in the
bracket.
3. If needed, drill pilot holes for the fasteners.
4. Secure the bracket to the wall with fasteners of
sufficient strength to hold up the FDE474.
Bottom Wall Bracket:
1. Lift up and hang the dispenser from the top wall
bracket.
2. Position the bottom wall bracket so that the
molding on the dispenser base bottoms in the
channel of the wall bracket.
3. Secure the bracket to the wall.
Bottom Fitting Cover:
1. Connect electrical power, water inlet, bin drain
and sink drain of the dispenser thru the bottom of
the case.
2. Secure bottom fitting cover to the bottom wall
bracket with the four sheet metal screws provided
in this kit.
FDE474
March 2000
Page 7
Wall
Brackets
Secure With
Screws
Bottom
Cover
Enlarge Holes
Top Case
Bracket
Top Panel
