ELECTRICAL CHARACTERISTICS CURVES (CON.)

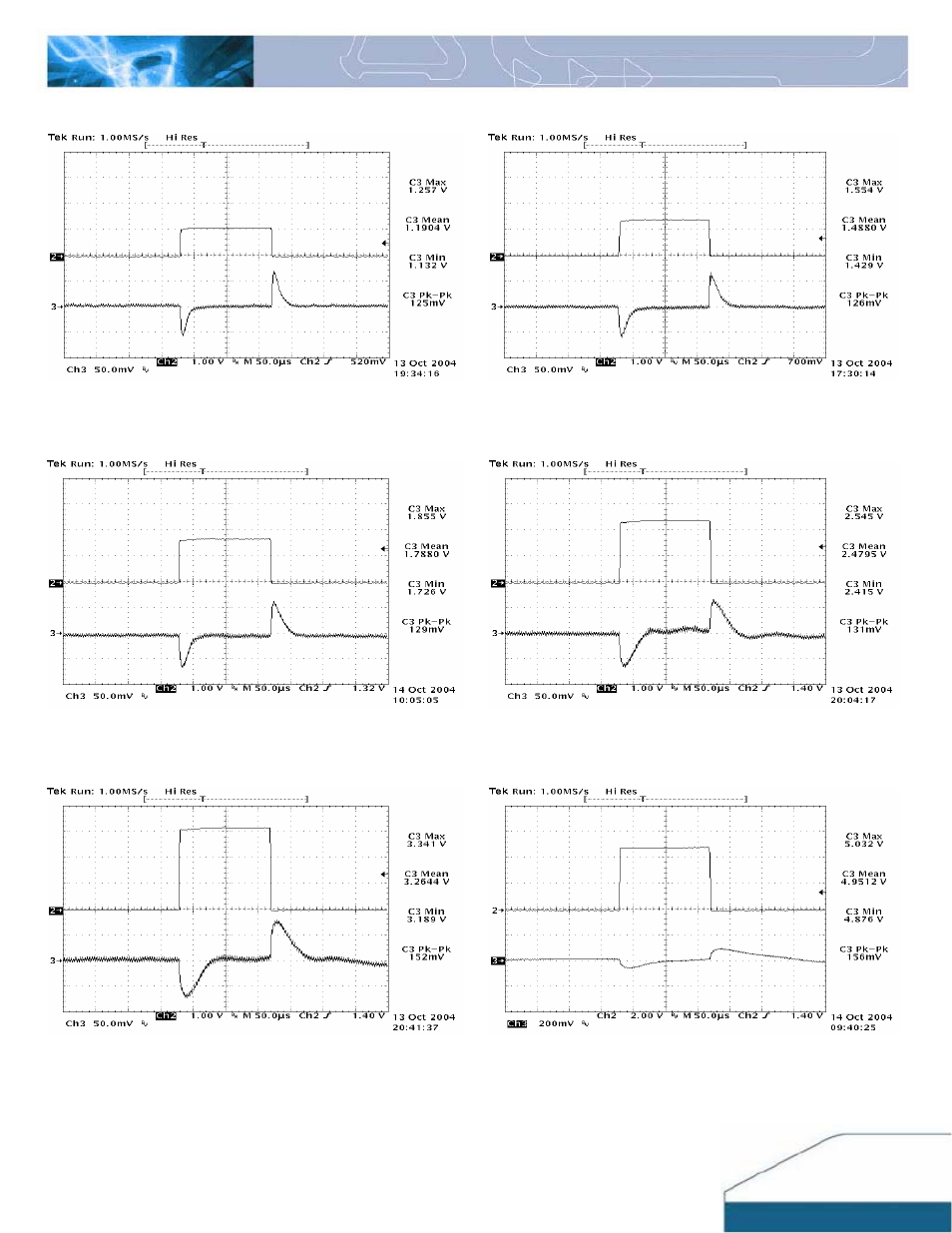

Figure 19:
Typical transient response to step load change at
10A/μS from 75% to 50% of Io, max at 12Vin, 1.2V out (Cout =
1uF ceramic, 10μF tantalum)
Figure 20:
Typical transient response to step load change at
10A/μS from 75% to 50% of Io, max at 12Vin, 1.5V out (Cout =
1uF ceramic, 10μF tantalum)
Figure 21:
Typical transient response to step load change at
10A/μS from 75% to 50% of Io, max at 12Vin, 1.8V out (Cout =
1uF ceramic, 10μF tantalum)
Figure 22:
Typical transient response to step load change at
10A/μS from 75% to 50% of Io, max at 12Vin, 2.5V out (Cout =
1uF ceramic, 10μF tantalum)
Figure 23:
Typical transient response to step load change at
10A/μS from 75% to 50% of Io, max at 12Vin, 3.3V out (Cout =
1uF ceramic, 10μF tantalum)
Figure 24:
Typical transient response to step load change at
10A/μS from 75% to 50% of Io, max at 12Vin, 5.0V out (Cout =
1uF ceramic, 10μF tantalum)
