Electrical characteristics curves (con.) – Delta Electronics Delphi NC30 User Manual
Page 5
DS_NC12S30A_05222008
5

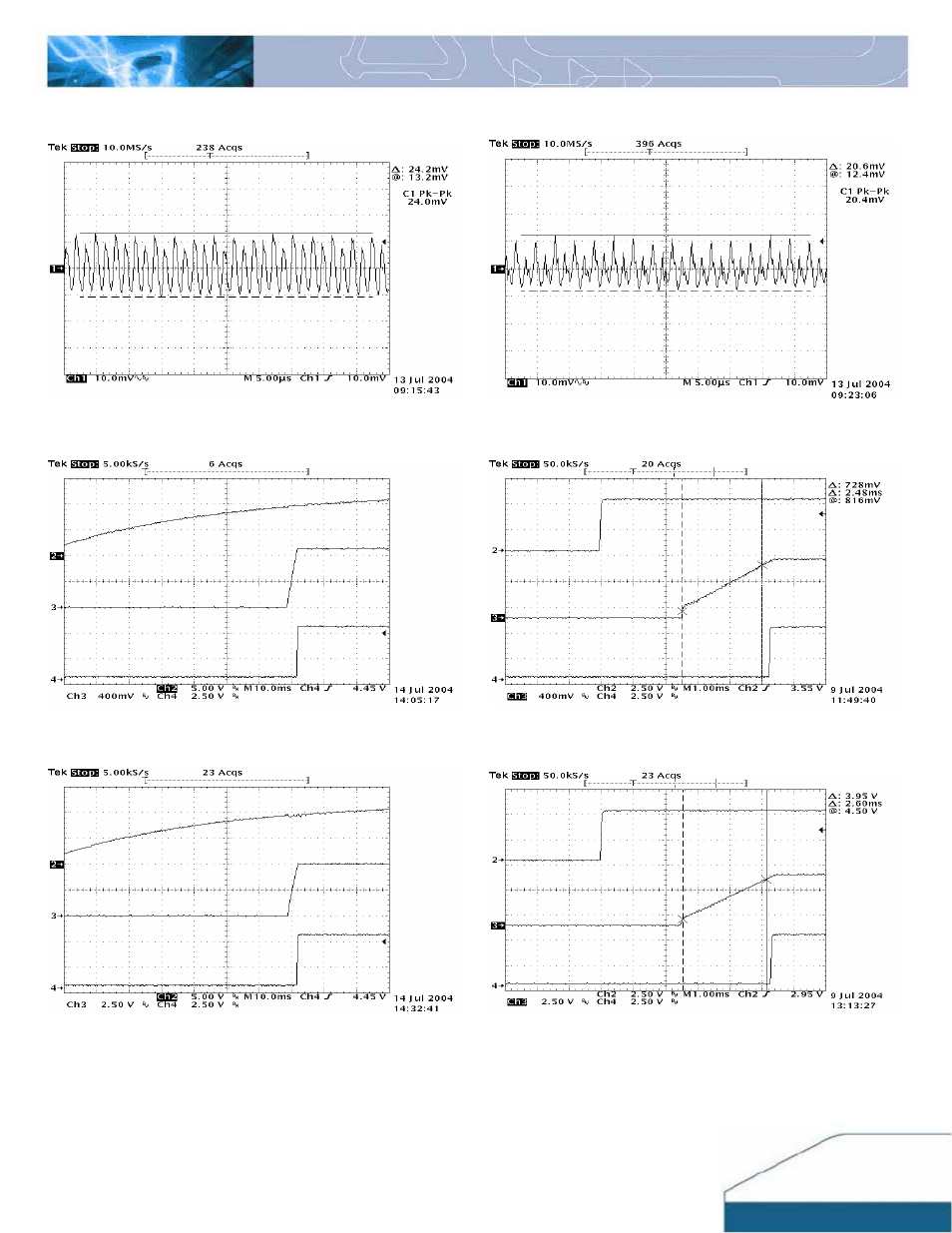

ELECTRICAL CHARACTERISTICS CURVES (CON.)
Figure 13:
Output ripple & noise at 12Vin, 3.3V/30A out
Figure 14:
Output ripple & noise at 12Vin, 5.0V/30A out
Figure 15:
Turn on delay time at Vin On/Off, 0.9V/30A out
Ch2:Vin Ch3:Vout Ch4:PWRGD
Figure 16:
Turn on delay time at Remote On/Off, 0.9V/30A out
Ch2:ENABLE Ch3:Vout Ch4:PWRGD
Figure 17:
Turn on delay time at 12vin, 5.0V/30A out
Ch2:Vin Ch3:Vout Ch4:PWRGD
Figure 18:
Turn on delay time at Remote On/Off, 5.0V/30A out
Ch2: ENABLE Ch3:Vout Ch4:PWRGD
