MODEL NO. RV4700 DTS-ES
AUDIO/ VIDEO RECEIVER
DESIGNED IN USA ASSEMBLED IN KOREA
AC INLET 230V~50Hz 370W
• The COAXIAL or the OPTICAL DIGITAL OUTs of the
components that are connected to CD, TAPE MONITOR
and VIDEO 1 - VIDEO 4 of this unit can be connected to
these DIGITAL INs.
• After making digital connections, be sure to match the
DIGITAL INs to the corresponding input source respectively.
(For details, refer to "When selecting the DIGITAL IN
SETUP" on page 39.)
• A digital input should be connected to the
components such as LD player, CD player or DVD
player, etc. capable of outputting DTS, Dolby Digital
or PCM format digital signals,etc.
• If the component with OPTICAL IN jack is connected
to the OPTICAL OUT jack of this unit, you can record
the high quality sound of CDs etc. without
degradation.
• For details, refer to the operating instructions of the
component connected.
• When making the COAXIAL DIGITAL connection, be
sure to use a 75
Ω COAXIAL cord, not a conventional
AUDIO cord.
• All of the commercially available optical fiber cords
cannot be used for the equipment. If there is an
optical fiber cord which cannot be connected to your
equipment, consult your dealer or nearest service
organization.

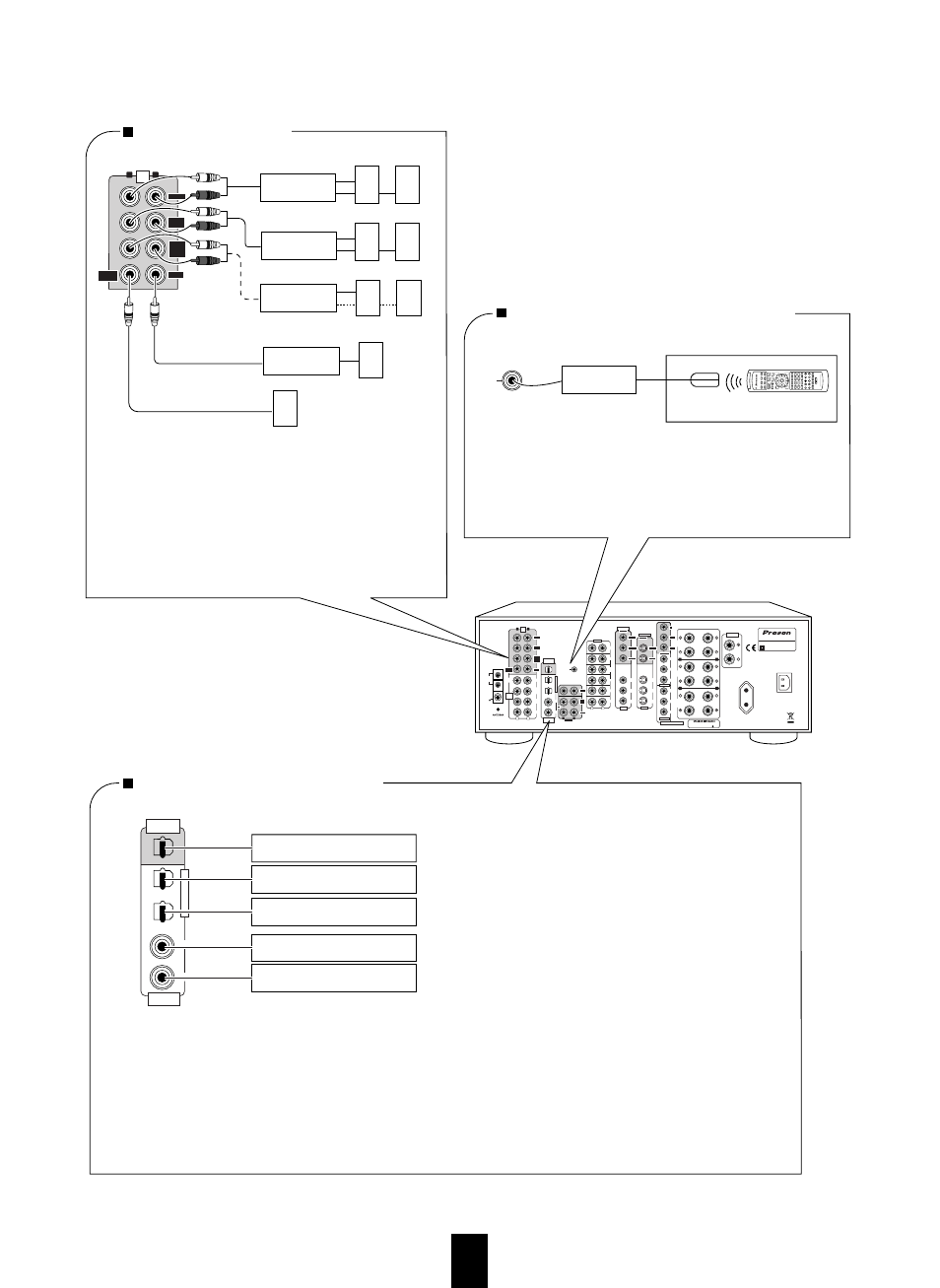

CONNECTING DIGITAL INs and OUT
• Use these jacks when adding additional amplifiers.
• Connect the PRE OUT jacks to the powered speakers or
the power amplifiers connected to speakers respectively.
• To emphasize the deep bass sounds, connect a powered
subwoofer.
• Only when enjoying 6.1 or 7.1 channel surround playback,
make the surround back connections between the audio
equipment.
Front speakers
Power amplifier
Surround speakers
Power amplifier
Surround back
speakers
Power amplifier
Front center
speaker
Powered subwoofer
PRE OUT connections
Power amplifier
FRONT
CENTER
SUR-
ROUND
SUR-
ROUND
BACK
PRE
OUT
SUB
WOOFER
R L
OPT 1
OPT 2
COAX1
COAX2
COAXIAL
IN
OPTICAL IN
OPTICAL
OUT
• To control this unit from a remote location, connect this jack
to the output of the multi-room adaptor.
For information on the multi-room system kit, contact the
Xantech corporation at www.xantech.com.
CONNECTING MULTI-ROOM SYSTEM KIT
OUT
Another room
IR receiver
(Multi-room system kit) Remote control unit
MULTI
Adaptor
(Multi-room system kit)
Component(such as an MD recorder,
CD recorder) with OPTICAL DIGIAL IN
Component with
OPTICAL DIGITAL OUT
Component with
OPTICAL DIGITAL OUT
Component with
COAXIAL DIGITAL OUT
Component with
COAXIAL DIGITAL OUT
