36
• After you have installed this unit and connected all the components, you first perform the speaker setup settings for the
optimum sound acoustics according to your environment and speaker layout.
Depending on your speaker type, you can select one of these following speaker types.
Yes/No : Select the desired depending on whether a subwoofer is connected or not.
Large : Select this when connecting speakers that can fully reproduce sounds below 80 Hz.
Small : Select this when connecting speakers that cannot fully reproduce sounds below 80
Hz. When this is selected, sounds below 80 Hz are sent to the subwoofer.
None : Select this when no speakers are connected.
When this is selected, sounds are sent to the front speakers.
2CH/1CH : Select the desired depending on the number of surround back speakers.
• Each time these buttons are pressed, “ ” and “ ” are
moved to the corresponding speaker mode.
Notes :
• When “FRONT’ is set to “Small”, “SUBWOOFER” is automatically set to “Yes”, and when “SUBWOOFER” is
set to “No”, “FRONT” is automatically set to “Large”.
• When “FRONT” is set to “Small”, “CENTER”, “SURROUND” and “S/B CH” cannot be set to “Large”.
• When “SURROUND” is set to “None”, “SURR. BACK” cannot be selected.
• When “CENTER” is set to “None”, “SURROUND” cannot be set to “None” and vice versa.
• When “SURROUND” is set to “Small”, “S/B CH” cannot be set to “Large”.
S P E A K E R C O N F I G
R E T U R N : B a c k , : S e l e c t
S U B W O O F E R :
F R O N T
:
C E N T E R :
S U R R O U N D :
S U R R . B A C K :
S / B C H :
Large
Yes
Large
Large
2CH
Small
DVD
VOL. CH LEVEL
CH SEL
DSP MODE
AUTO
ST CENTER MODE TEST TONE DISC P.SCAN
TUNER CD T1/MON AUX PHONO
VID1 VID2 VID3 VID4 VID5
SYS DISP SLEEP DIRECT IN ROOM2
INTRO
RETURN
B RPT A
7.1 SURR TITLE
ENTER
ENTER
HOME THEATER MASTER RV4700 DTS-ES
DVD
VOL. CH LEVEL
CH SEL
DSP MODE
AUTO
ST CENTER MODE TEST TONE DISC P.SCAN
TUNER CD T1/MON AUX PHONO
VID1 VID2 VID3 VID4 VID5
SYS DISP SLEEP DIRECT IN ROOM2
INTRO
RETURN
B RPT A
7.1 SURR TITLE
ENTER
HOME THEATER MASTER RV4700 DTS-ES
DVD
VOL. CH LEVEL
CH SEL
DSP MODE
AUTO
ST CENTER MODE TEST TONE DISC P.SCAN
TUNER CD T1/MON AUX PHONO
VID1 VID2 VID3 VID4 VID5
SYS DISP SLEEP DIRECT IN ROOM2
INTRO
RETURN
B RPT A
7.1 SURR TITLE
ENTER
HOME THEATER MASTER RV4700 DTS-ES
S P E A K E R S E T U P
R E T U R N : B a c k E N T E R : S e l e c t
S P E A K E R C O N F I G
S P E A K E R D I S T A N C E
L F E L E V E L C O N T R O L
To select the sizes of the speakers that are connected.
To enter the distance between the listening position and
each speaker to set the delay time automatically for
the optimum surround playback.
To adjust LFE(Low Frequency Effect) levels included in
Dolby Digital, DTS and MPEG program sources.

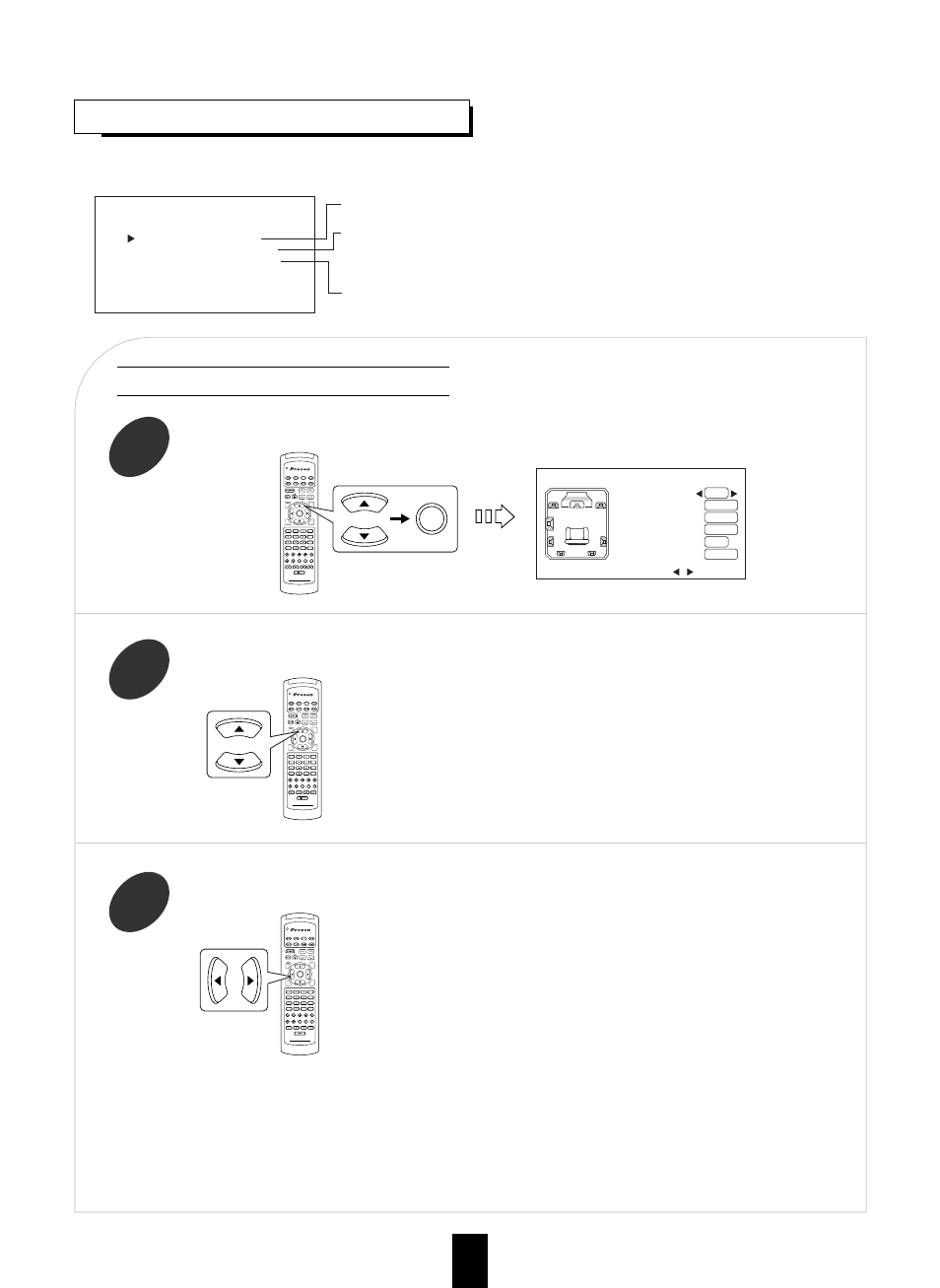

Press the CURSOR UP( )/DOWN( ) buttons to select the SPEAKER CONFIG, then press the ENTER
button. 1
Press the CURSOR UP( )/DOWN( ) buttons to select the desired speaker.
2
Press the CURSOR LEFT( )/RIGHT( ) buttons to select the desired mode.
3
SETTING THE SPEAKER SETUP
When selecting the SPEAKER CONFIG
