2. Hardware Orientation

Interface Description

MSP 200 User Manual 23

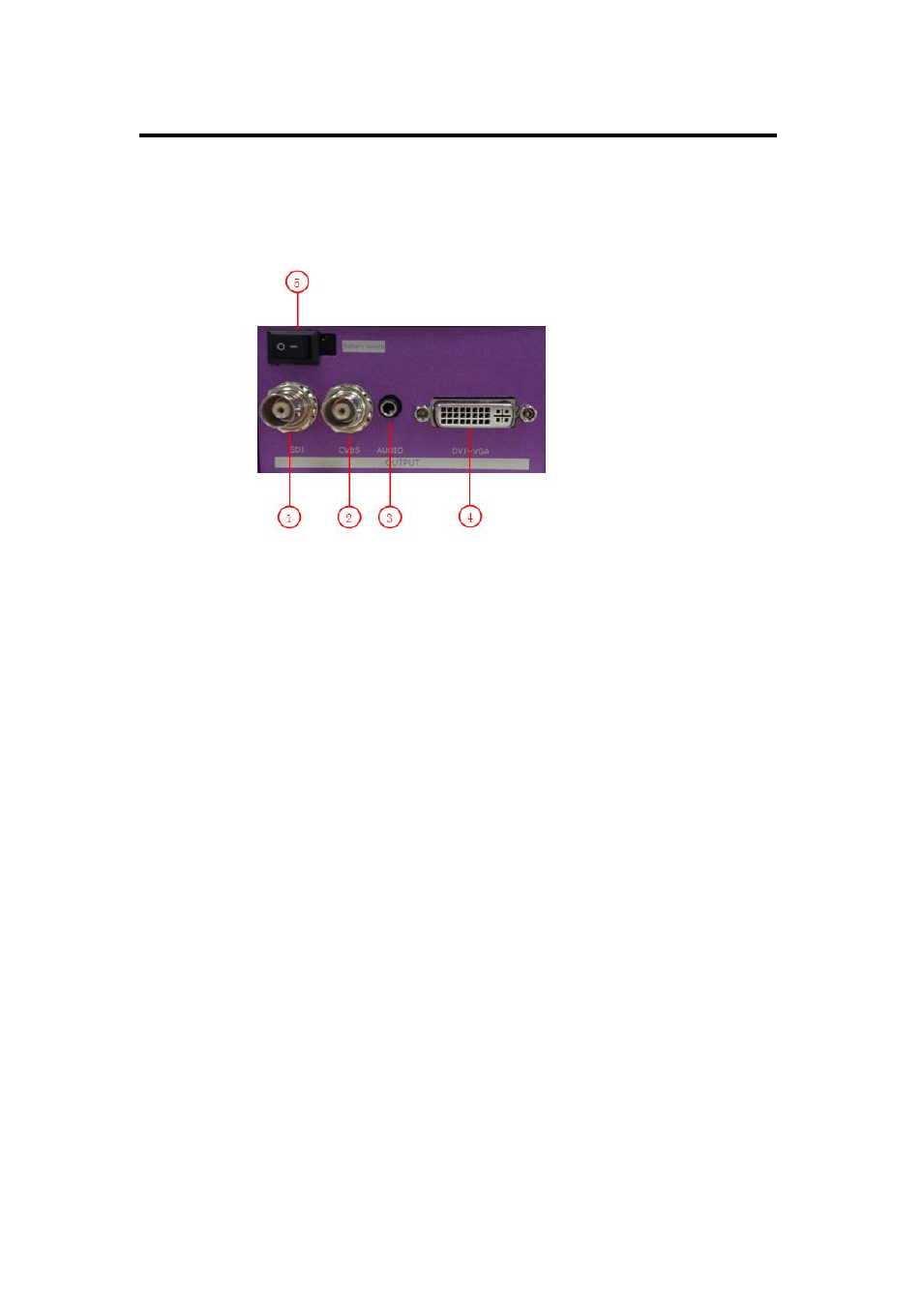

The figure below illustrates the professional interface of MSP 200.

1: SDI Output

SDI output interface, can connect the next level device with SDI interface.

2: CVBS Output

CVBS Output interface, can connect standard video signal from players,

cameras etc.

3: Audio Output

Audio output, connect to the speakers or audio power amplifier system.

4: DVI +VGA DVI Output

DVI +VGA output via DVI connector connect to the monitor or LED screen

which has DVI interface.

(This DVI connector does not support hot-plugging).

DVI +VGA, VGA output connector can be connected to monitor or projector

which has VGA interface.
