The following table depicts the usage of all the ports under service window.
However, it is highly recommended only the trained or certified technician
should configure the DIP switch, for incorrect configurations might cause
unexpected results or even damage the terminal.
Label Description
LPT Connects to the parallel device via a conversion cable.
SATA1 Connects to eternal SATA HDD.
PWR1 Connects to external SATA HDD for supplying power.
DIP Switch Description
1 On 2 Off Default
1 Off 2 On Clear CMOS
Off Linux or WinCE 3
On Windows OS (Default)
Off Fujitsu Touch Panel 4
On ELO Touch Panel or ABON Touch Panel
Off Windows/Linux/Win CE (Default) 5
On MS-DOS
Off Enable On Board USB Touch 6
On Disable On Board USB Touch
Off Reserved 7
On Reserved
8 Off Reserved

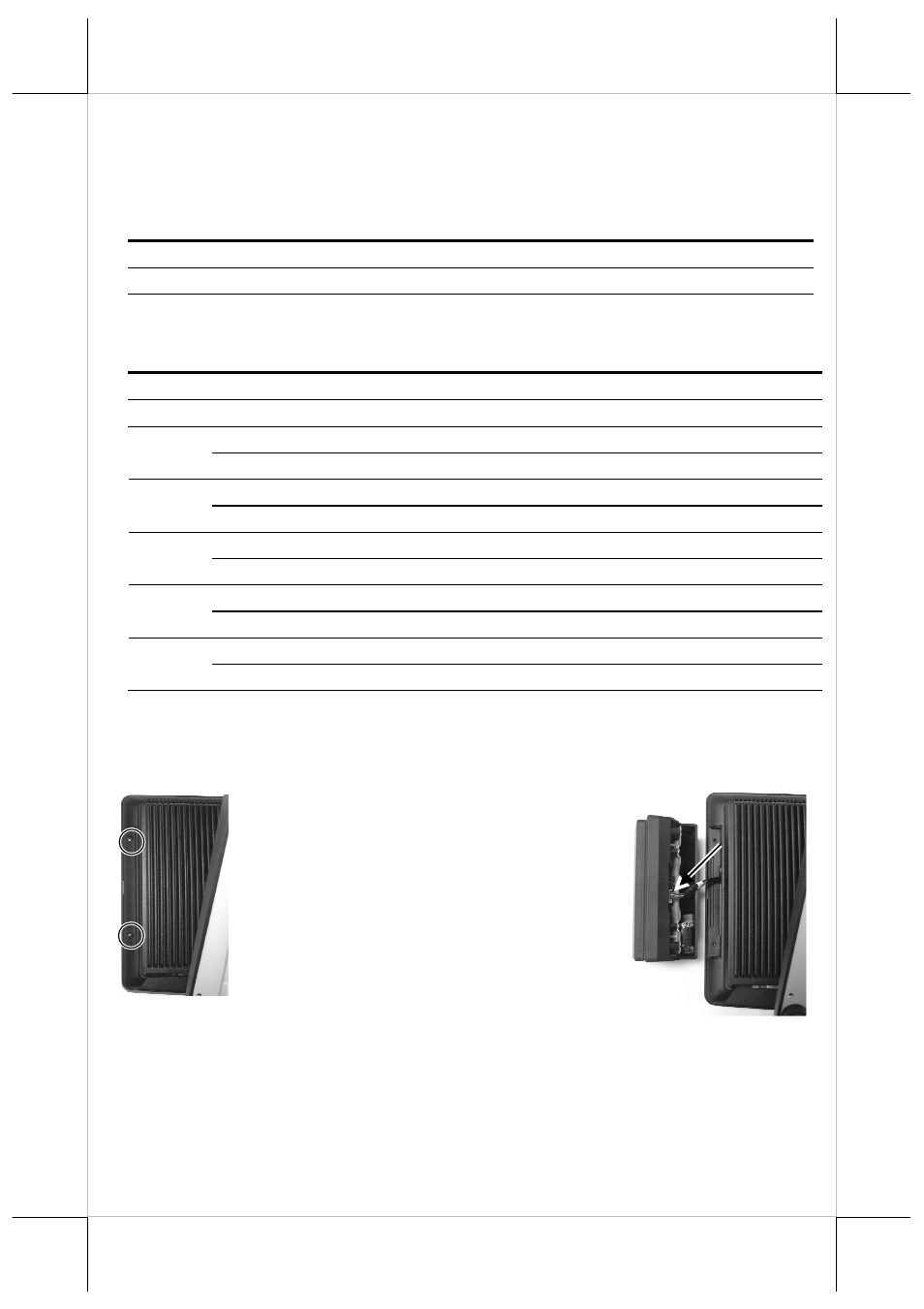

SIDE MOUNT UPGRADE KIT (OPTION)
Remove the 2 screws circled in the left
picture to remove the cover for side
mount upgrade kit. Take out the cable
inside this cover and connect it to the
white connector inside the side mount
upgrade kit like SD-500 series as
arrowed in the right picture. Gently
arrange the excessive length of this cable
back in the hole and screw-fit it back to
the position originally occupied by the cover. Please
reserve the cover if there is chance to have the side mount kit removed in the
future.
