Zone Controller Expansion Module Wiring

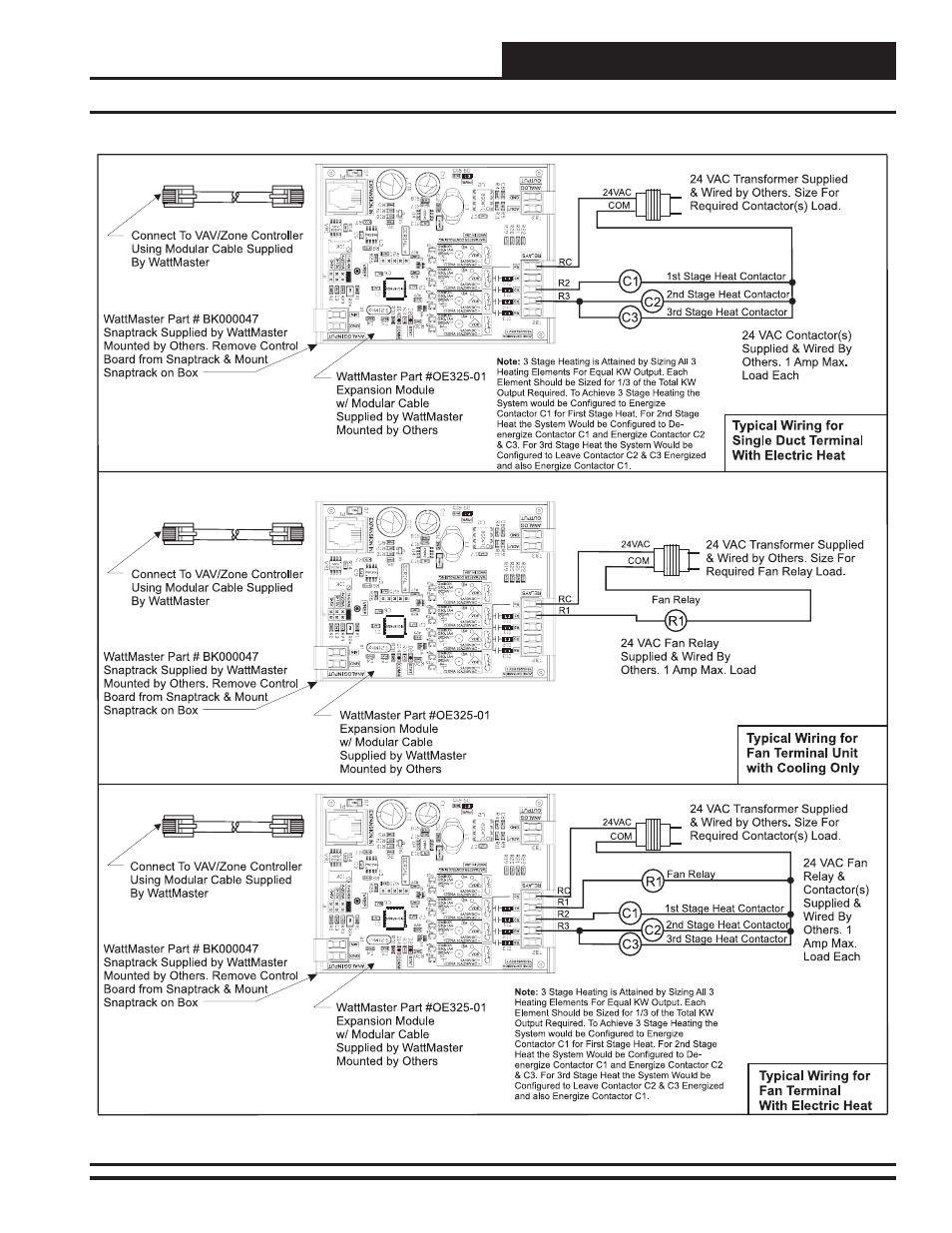

Figure 8: Zone Controller Expansion Module Wiring - Fan Terminals And/Or Staged Electric Heat

11

Modular ZCAP Technical Guide

Installation & Wiring
