Controller installation & wiring, General, Controller mounting – Orion System Modular VAV/Zone Controller User Manual

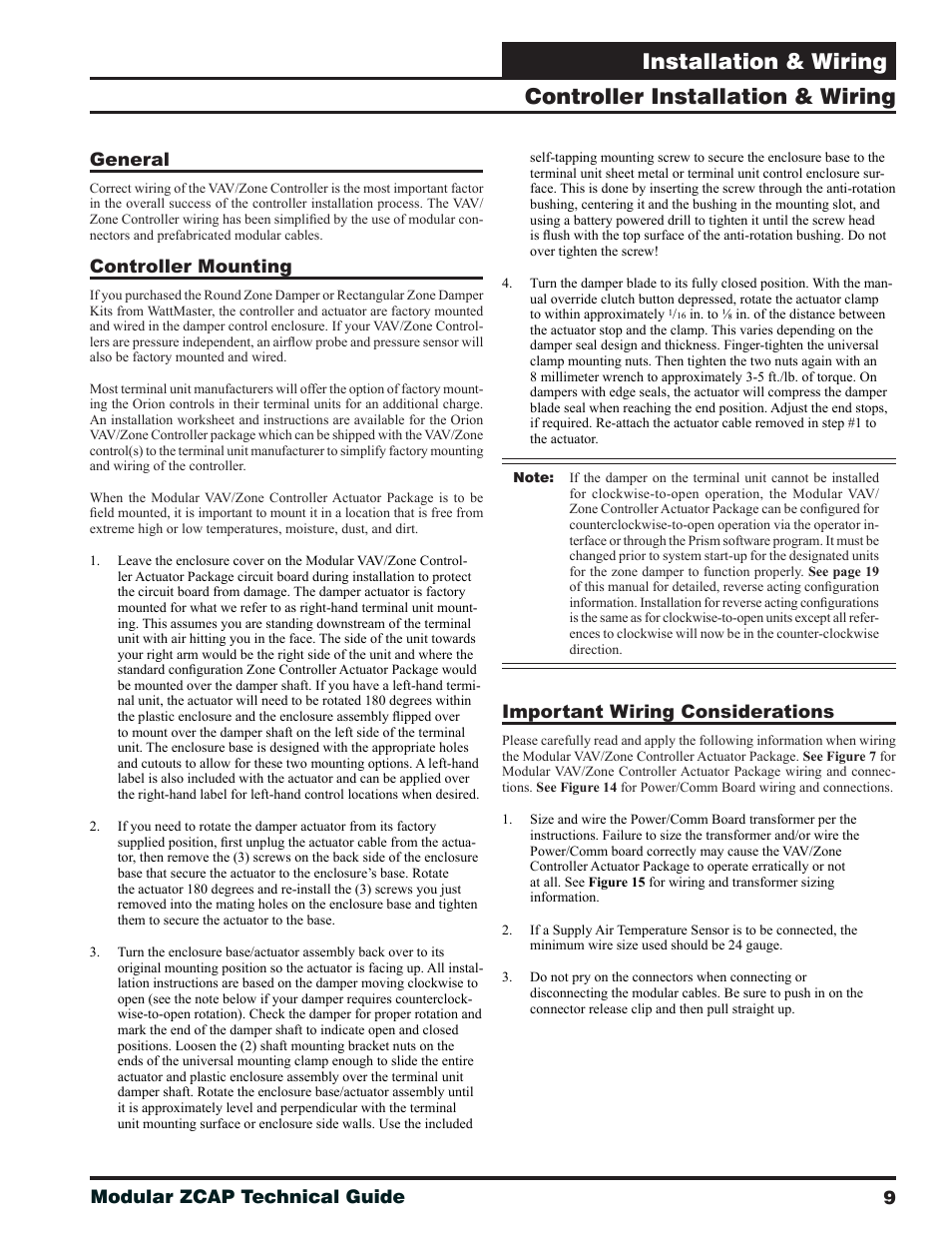

Page 9: Important wiring considerations, Installation & wiring, 9modular zcap technical guide
