INSTALLATION & WIRING
VCM-X Modular E-BUS Controller Technical Guide 34

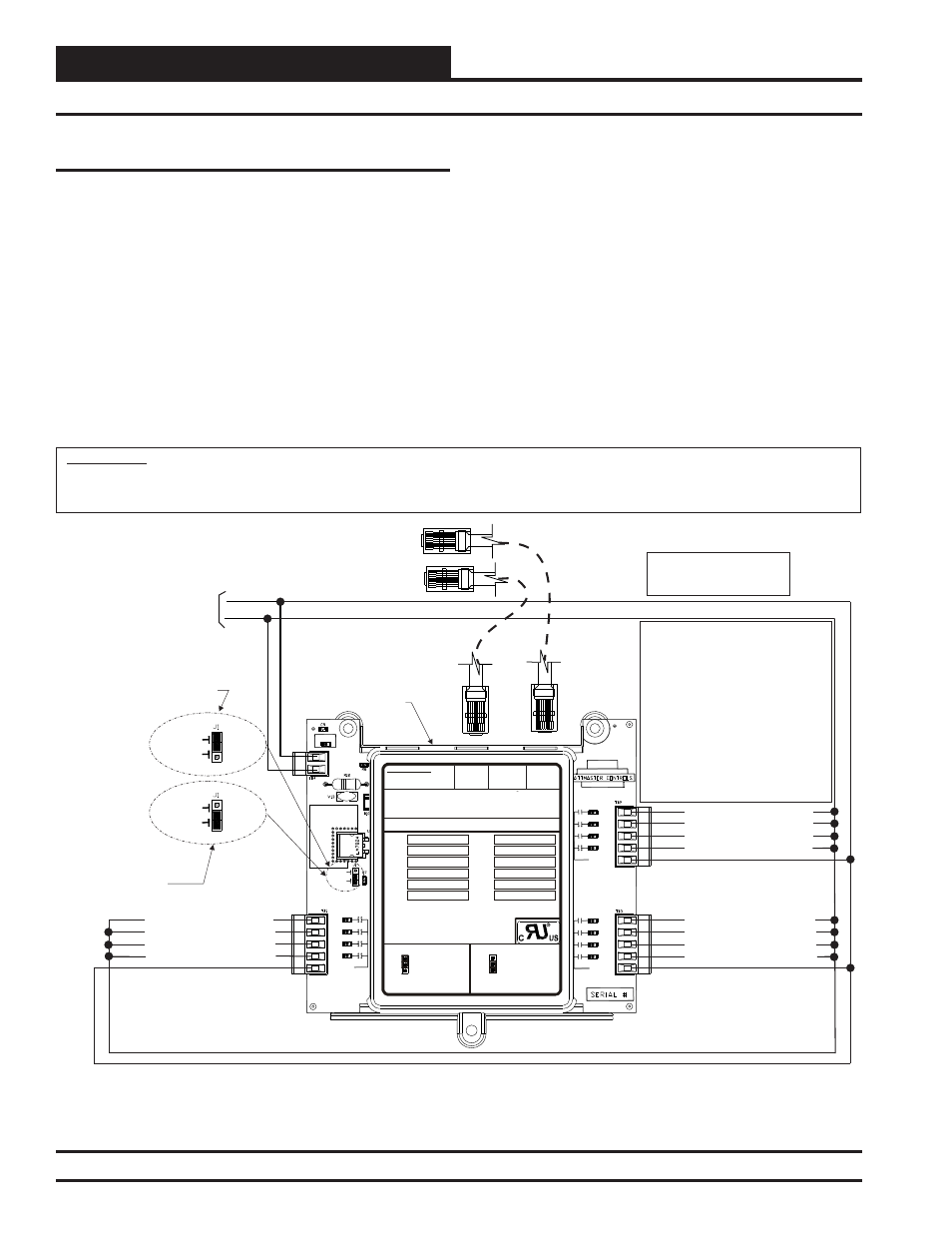

Figure 31: OE358-23-12R – 12-Relay Expansion Module Wiring and Jumper Settings
12-Relay Expansion Module
Three different Expansion Modules are available for use with the VCM-X
E-BUS Controller to provide additional inputs and outputs beyond those
found on the VCM-X E-BUS Controller. They are the VCM-X Expan-
sion Module (OE333-23-EM), the 4 Binary Input Expansion Module
( OE356-01-BI) which can be used in place of the VCM-X Expansion
Module if your system does not need any other inputs or outputs, and
the 12-Relay Expansion Module ( OE358-23-12R).
The 12-Relay Expansion Module provides for 12 Dry Contact Confi gu-
rable Relay Outputs. See Figure 31 below for complete wiring details.
The expansion modules can be used individually or together to provide
the required inputs and outputs for your specifi c applications.
When using the 12-Relay Expansion Module, you must correctly confi g-
ure a set of jumpers on the board depending on whether it will be used
by itself or in addition to the VCM-X Expansion Module.
The jumpers are located on the edge of the 12-Relay Expansion Module
on the same side of the module as the power connection. See Figure
31 below for details regarding setting the switch correctly for your
application.
12-Relay Expansion Module Wiring and Jumper Settings
EXP1
EXP1
EXP2
EXP2
Set Jumper As Shown
Above When Both The 12
Relay & VCM-X Expansion
Module Are Used
12-Relay
Expansion Module
Set Jumper As Shown Below
When Only The 12 Relay
Expansion Module Is Used
POWER
RLY1
RLY2
RLY3
RLY4
RLY COM
EXP1
EXP2
24VAC
GND EXPANSION BOARD
YS102228 REV 1
RELAY
RLY5
RLY6
RLY7
RLY8
RLY COM
RLY9
RLY10
RLY11
RLY12
RLY COM
MADE IN USA
SET JUMPER AS
SHOWN WHEN
THE 12 RELAY
EXPANSION MODULE
IS USED
ONLY
SET JUMPER AS
SHOWN WHEN BOTH
THE VCM EXPANSION
MODULE AND THE
RELAY EXPANSION
MODULE ARE USED
J1 J1
EXP1 EXP1
EXP2 EXP2
NOTE:
IT IS RECOMMENDED THAT YOU WRITE THE
DESCRIPTION OF THE RELAY OUTPUTS YOU
ARE CONNECTING TO THE RELAY EXPANSION
MODULE IN THE BOXES PROVIDED ABOVE
USING A PERMANENT MARKER (SHARPIE)
FOR FUTURE REFERENCE.
®
WattMaster Label
#LB102043
I2C
EXPANSION
I2C
EXPANSION
24 VAC POWER ONLY
WARNING! POLARITY MUST BE
OBSERVED OR THE BOARD
WILL BE DAMAGED
www.orioncontrols.com
RLY 1 = RLY 7 =
RLY 2 = RLY 8 =
RLY 3 = RLY 9 =
RLY 4 = RLY 10 =
RLY 5 = RLY 11 =
RLY 6 = RLY 12 =
OE358-23-12R-A 12 RELAY EXPANSION MODULE
Configurable Relay Output #9 Configurable Relay Output #1
Configurable Relay Output #5
R9 R1
R5
R10 R2
R6
R11 R3
R7
R12 R4
R8
Configurable Relay Output #10 Configurable Relay Output #2
Configurable Relay Output #6
Configurable Relay Output #11 Configurable Relay Output #3
Configurable Relay Output #7
Configurable Relay Output #12 Configurable Relay Output #4
Configurable Relay Output #8
Relay Output Contacts R1 Through R12 May Be
User-Configured For The Following:
Note:
-
1 - Heating Stages
2 - Cooling Stages
3 - Warm-up Mode Command (VAV Boxes)
4 - Reversing Valve (Heat Pumps)
5 - Reheat Control (Dehumidification)
6 - Exhaust Fan Interlock
7 - Preheater For Low Ambient Protection
8 - Alarm
9 - Override
10 - Occupied
11 - OA Damper
12 - Heat Wheel
13 - Emergency Heat
A Total Of 20 Relays Are Available By Adding
Relay Expansion Modules. All Expansion Module
Relay Outputs Are User Configurable As Listed
Above.
Modular Cable
Connect To VCM-X E-BUS Controller
Modular Cable
Connect To Next Expansion Board
(When Used)
24 VAC
GND
15 VA Minimum Power
Required For
OE358-23-12R
12 Relay Expansion Module
WARNING!!
Observe Polarity! All boards must be wired with GND-to-GND and 24VAC-to-24VAC. Failure to observe polarity will result in damage to one or
more of the boards. Expansion Modules must be wired in such a way that the expansion modules and the controller are always powered
together. Loss of power to the expansion module will cause the controller to become inoperative until power is restored to the expansion module.
Note:
All Relay Outputs Are Normally Open
And Rated For 24 VAC Power Only.
1 Amp Maximum Load.
