INSPECTION & MAINTENANCE (cont.)
Water Regulating Valve (cont.)
Adjustment of Water Regulating Valve Setting (cont.)
7. Write the value setting with a permanent marker on the adjustment record
table on the inside panel of the unit.
Note: Recording the value setting is very important for reference when making
future adjustments.

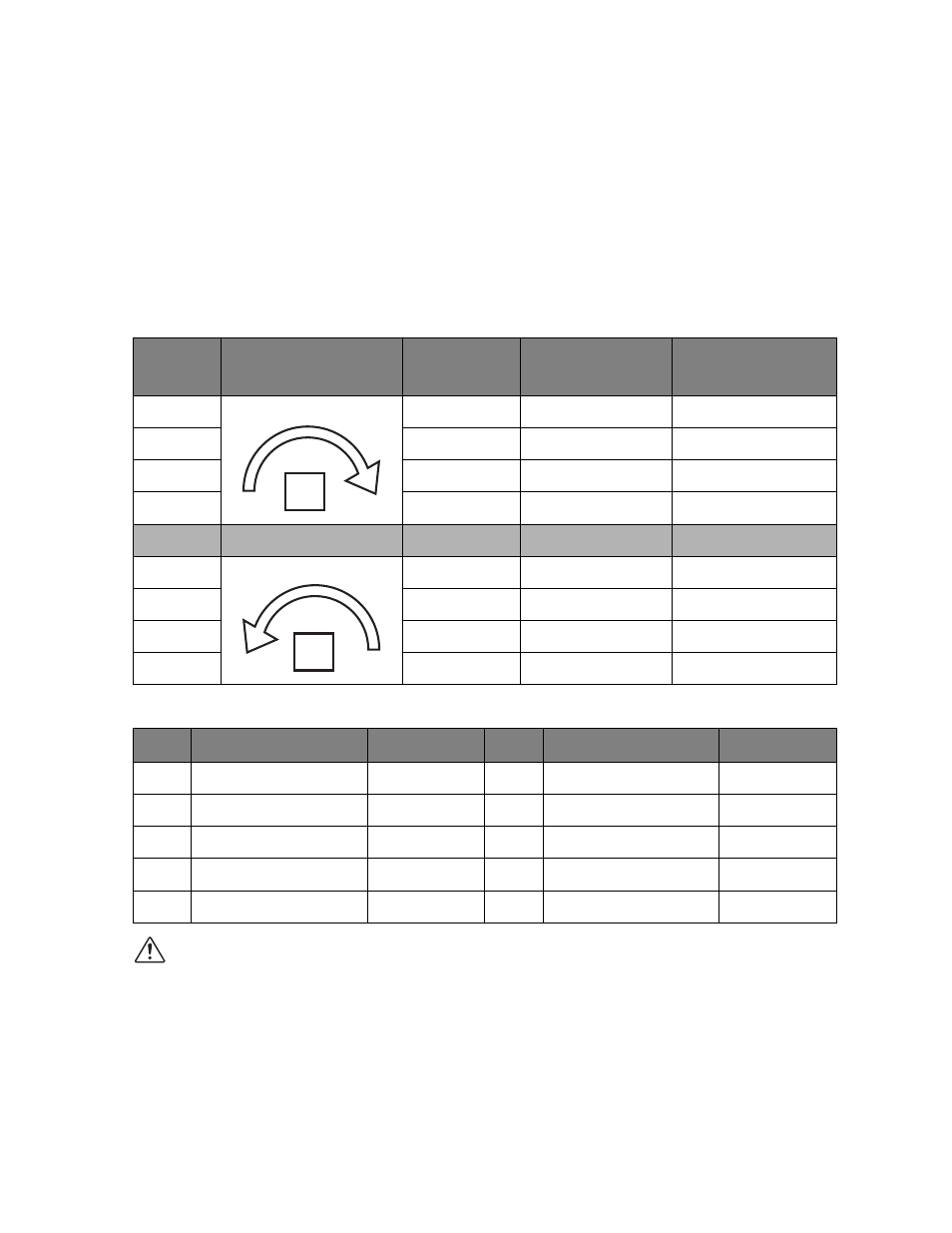

Valve Setting Guide Table
Adjustment Record (Example)
CAUTION: Do not forget to write down the value setting with a
permanent marker on the adjustment record table. This is the only
way to know the current valve setting. It is difficult to exactly adjust
the valve without the current valve setting. Failure to adjust the
valve may damage the unit and void the warranty. Contact a
qualified technician for details.
SETTING
DIRECTION OF
VALVE ROTATION
NUMBER OF
ROTATION
VALVE OPENING
TEMPERATURE
MINIMUM WATER
TEMPERATURE
A Clockwise 4 72 °F (22 °C) 40 °F (4.4 °C)
B 3 75 °F (24 °C) 47 °F (8 °C)
C 2 79 °F (26 °C) 54 °F (12 °C)
D 1 82 °F (28 °C) 61 °F (16 °C)
E Default Setting Point - 86 °F (30 °C) 68 °F (20 °C)
F Counterclockwise 1 90 °F (32 °C) 72 °F (22 °C)
G 2 94 °F (34 °C) 75 °F (24 °C)
H 3 96 °F (36 °C) 79 °F (26 °C)
I 4 100 °F (38 °C) 83 °F (28 °C)
NO. SETTING DATE SETTING NO. SETTING DATE SETTING
0 - E 11
• Dec. 10, 2010 B •
• Apr. 10, 2011 D •
• Aug. 10, 2011 G •
10 21
