Installation

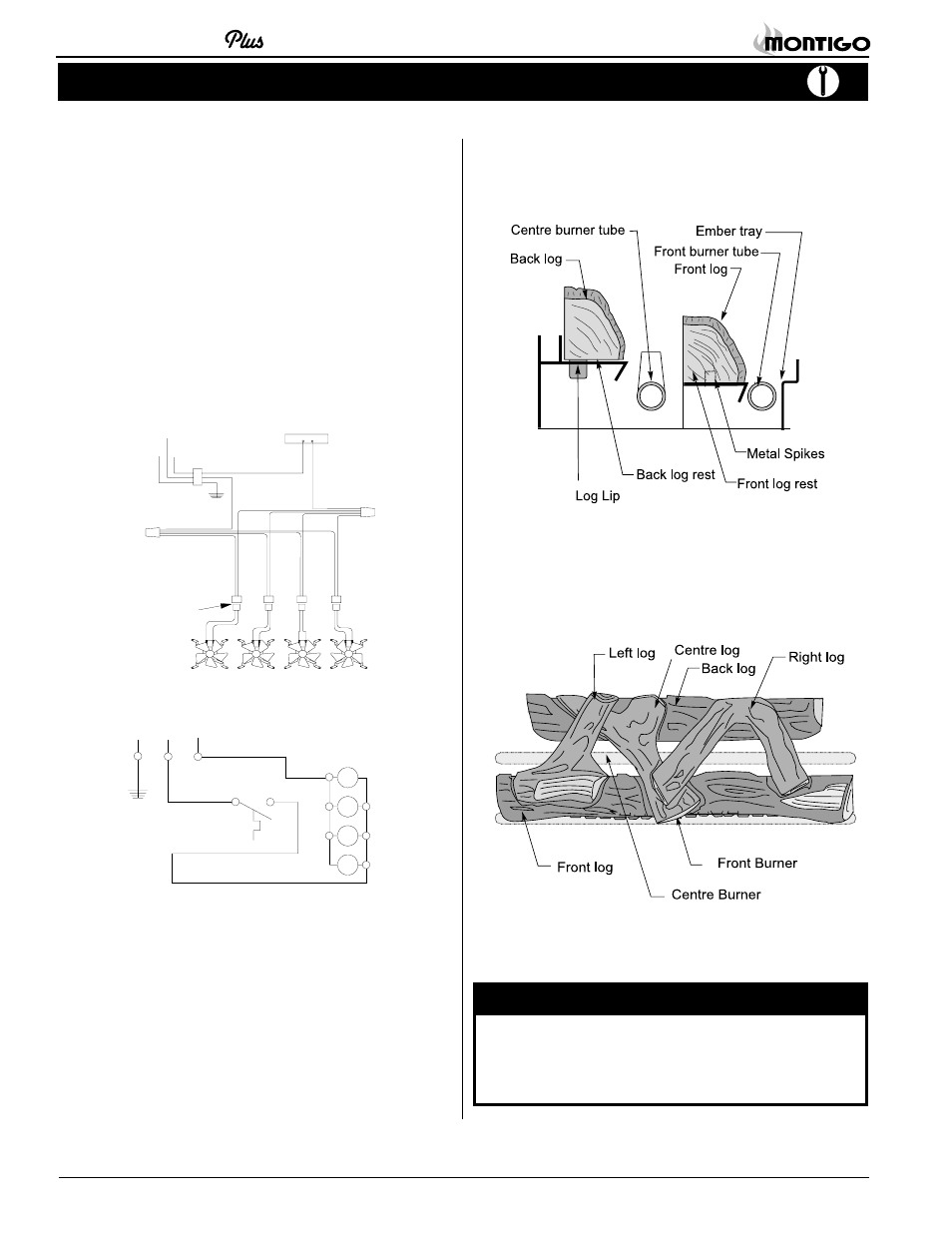

Figure 7a. Wiring for optional air circulating fan kit.
G
L1-WH
L2-BLK
Quick Connect
plug to motor
Wiring for the optional Fan Kit
All 38 Series Modular fireplaces may be equipped with optional fan or
blower kits for circulating heat into the living space.
Installations in Canada which employ the fans must be electrically
grounded in accordance with CSA C22.1 Canadian Electrical Code
Part 1 and/or Local Codes.
Installations in the USA which employ the fans must be grounded in
accordance with local codes or, in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70-1987.
For more information see the Fan Kit Installation Guide included
with the fan kit.
NOTE: If any of the original wire supplied with the appliance is replaced, it
must be replaced with the same type, or its equivalent.
Figure 7b. Wiring schematic for optional fan kit.
115/1/60 Supply
G L1 L2
Embers
Log 'D' Log 'E'
Log 'A'
Installing the Log Set
Installing the Logs:
The MD38-BV is supplied with five ceramic fibre logs. Unpack the logs
and handle them very carefully.
1. Remove the door cover and the glass door.
2. Place the Back log onto the back log rest as shown below in figure
8a. The log has lip on the bottom which fits into the slot on the log rest.
4. Place the top logs in position as shown in figure 8b, place the
centre log down first, then the right and left logs.
5. Start the fireplace. If the flame appears satisfactory, replace the
glass door and door cover.
Figure 8a. Positioning for the front and back logs.
Figure 8b. Proper log placement.
NOTES :
n If logs are not placed properly, excessive sooting will result.
n The surface of the logs will crack due to the heat from the
flames. This is a normal occurance.
Flame Shaper
3. Place the Front log onto the front log rest as shown in figure 8a.
Centre the log from side to side, and push it against the back of
the log rest. Carefully push the log onto the metal spikes on the log rest.
