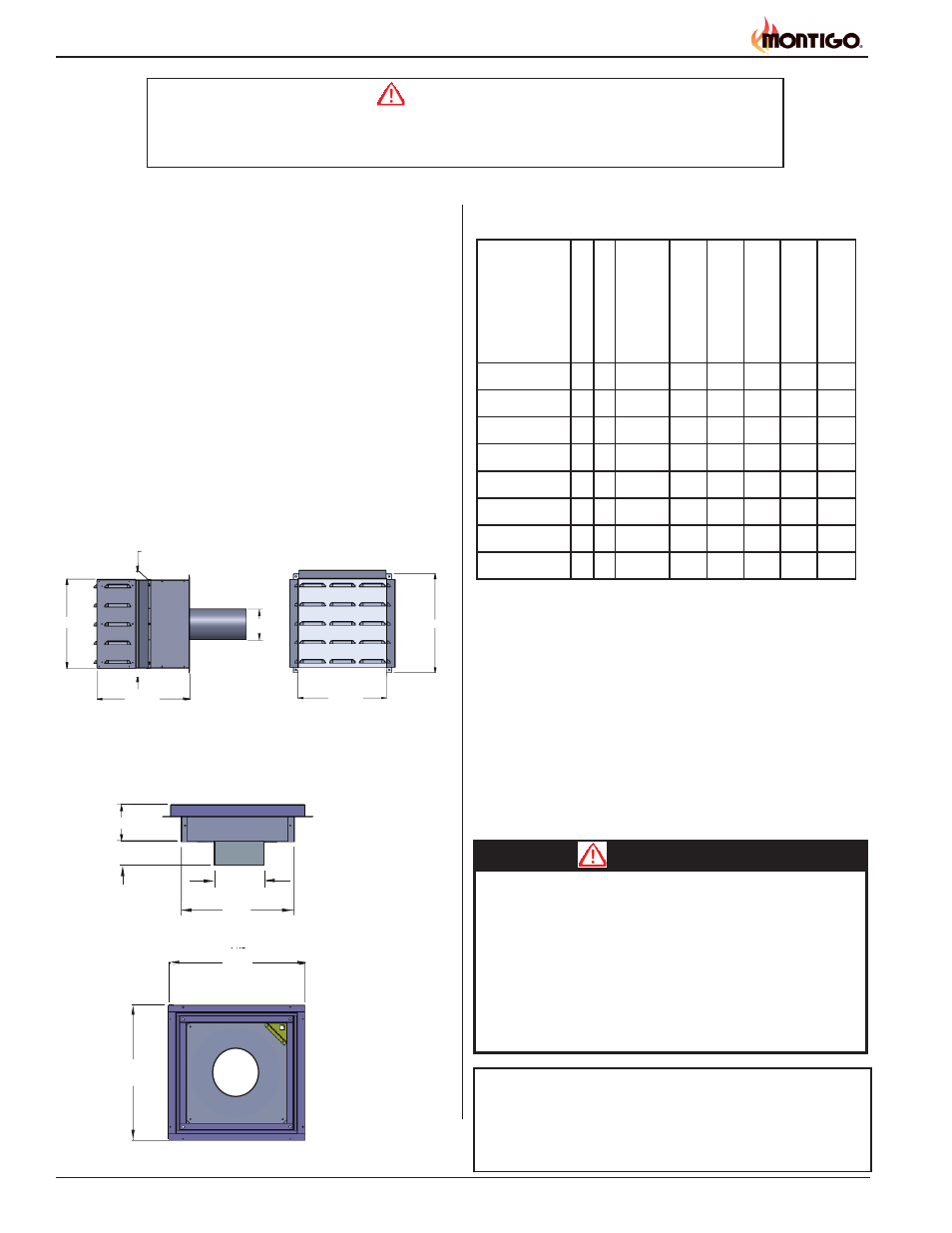

EPVRW Residential Power Vent System
Part No. XG1305 - 022813
Warning:
Read this manual before installing, operating or troubleshooting this
appliance. Please retain this owner's manual for future reference.
CAUTION :
When cold air enters the warmer building interior, primarily at
the air intake end, condensation may occur on the exterior of the
pipe. To limit this condensation, install insulation over the last
twenty feet of pipe. Also, by sloping the last 20'-0" feet of pipe
downward toward the exterior of the building, elimination of most
of the condensation problems should occur. Ensure the termina-
tion is securely fastened, and sealed to the pipe. Fasten the
termination to exterior of the building with water tight sealant and
the appropriate fasteners.
Important:
All dimensions, and design specifications are
subject to approval upon quotation of fire-
place and associated equipment.
Power Vent Specifications
Voltage: 110 Volts
Frequency: 50 Hz
Current draw: 1.41 Amp
Power consumption: 155 W
Speed: 2850 RPM
Maximum air movement: 400 CFM at zero restriction
Minimum air movement: 50CFM at 2.2" WC
Protection: Thermal switch
Bearings Ball bearings
Ø 8”
14”
3”
4 5/8"
Front View Side View
Ø 5.0"
14 3/4”
14 1/8” Ø 5”
16 3/4”
15 5/8”
14 1/8”
Front View
The EPVRWF Rough-in Frame dimensions:
18 3/4"
18 3/4"
R520N-I X 80,000 X X
R520L-I X 65,000 X X
R520STN-I X 80,000 X X
R520STL-I X 80,000 X X
R620N-I X 100,000 X X
R620L-I X 80,000 X X
R620STN-I X 100,000 X X
R620STL-I X 100,000 X X
MODEL Natural Gas Liquid Propane Gas Rating (BTU hr) Traditional Burner / Logset Linear Burner w/ Glass
Accessories
Standing Pilot Ignition Honeywell Hot Surface Ignition SIT Electronic Ignition
The power vent EPVRW can only be used with the following
R-Series Fireplaces:
For installation instructions for the power vent EPVRW,
refer to the appropriate R-Series instruction guide
provided with the firebox.
The EPVRWF dimensions:
