Installing the RFK1080 Blower Kit
General Information
This blower kit is for installation on the following models:
„ DelRay Rio Pedestal Stove (model WFSP)
KIT # Contents
RFK1080 1 x blower assembly
1 x heat sensor / wire harness
1 x speed control c/w knob and locking nut
2 x mounting screws
Rio Pedestal Stove Rio Pedestal Stove Rio Pedestal Stove Rio Pedestal Stove Rio Pedestal Stove
XG0626 Rev. 01 - 09/99
1. Turn off the stove's main burner and pilot burner.
2. Close the gas shutoff valve between the gas supply pipe and the
flex connector.
3. Mount the fan's speed control from the back of the control panel.
When the control is in position, screw the retaining nut on from the
front of the control panel and push the knob in place. See figure 2.
4. Plug the speed control into the bottom quick connect on the

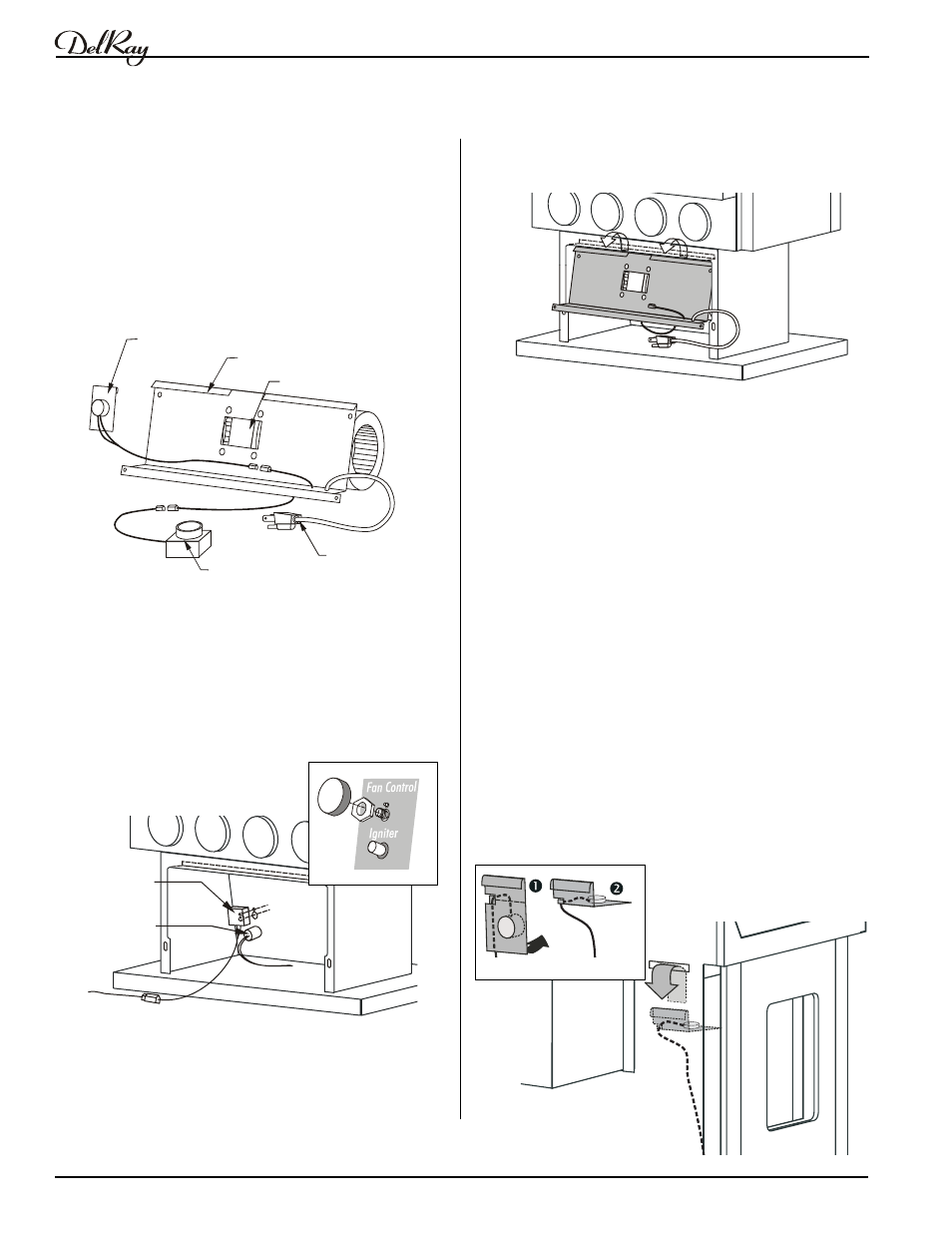

Figure 1. RFK1080 Blower and components.
Figure 3. Installing the blower assembly in the stove's pedestal
base.
kit. If the blower assembly is correctly positioned, the two screw
holes will line up with the slots in the pedestal.
7. Bend the heat sensor mounting bracket approximately 75°, as
shown in Inset 1 of Figure 4. Plug the heat sensor into its
connector as shown in Figure 1.
8. Attach the heat sensor to back of the stove. A slot is provided for
hanging the sensor's mounting plate onto the inside of the stove's
back panel. See figure 4.
9. Plug the electrical cord into a 110 V AC outlet.
10. Re-open the gas shutoff valve and re-light the stove.
Figure 2. Installing the fan speed control. The inset shows how
to install the retaining nut and the knob on the front of the
control panel.
Piezo igniter
Fan speed
control
n
o
Figure 4. Installing the heat sensor.
Installation
Heat sensor
Mounting bracket
Power cord
Speed control
Fan motor
blower assembly, as shown in Figure 1.
5. Position the blower assembly on the stove's pedestal base. The
mounting bracket hooks over the metal tab at the top of the
pedestal base, as shown in Figure 3.
6. Secure the blower assembly with the two screws supplied in this
Inset 1. Bend Bracket 75°.
