Mounting Installation
DIN-Rail Mounting

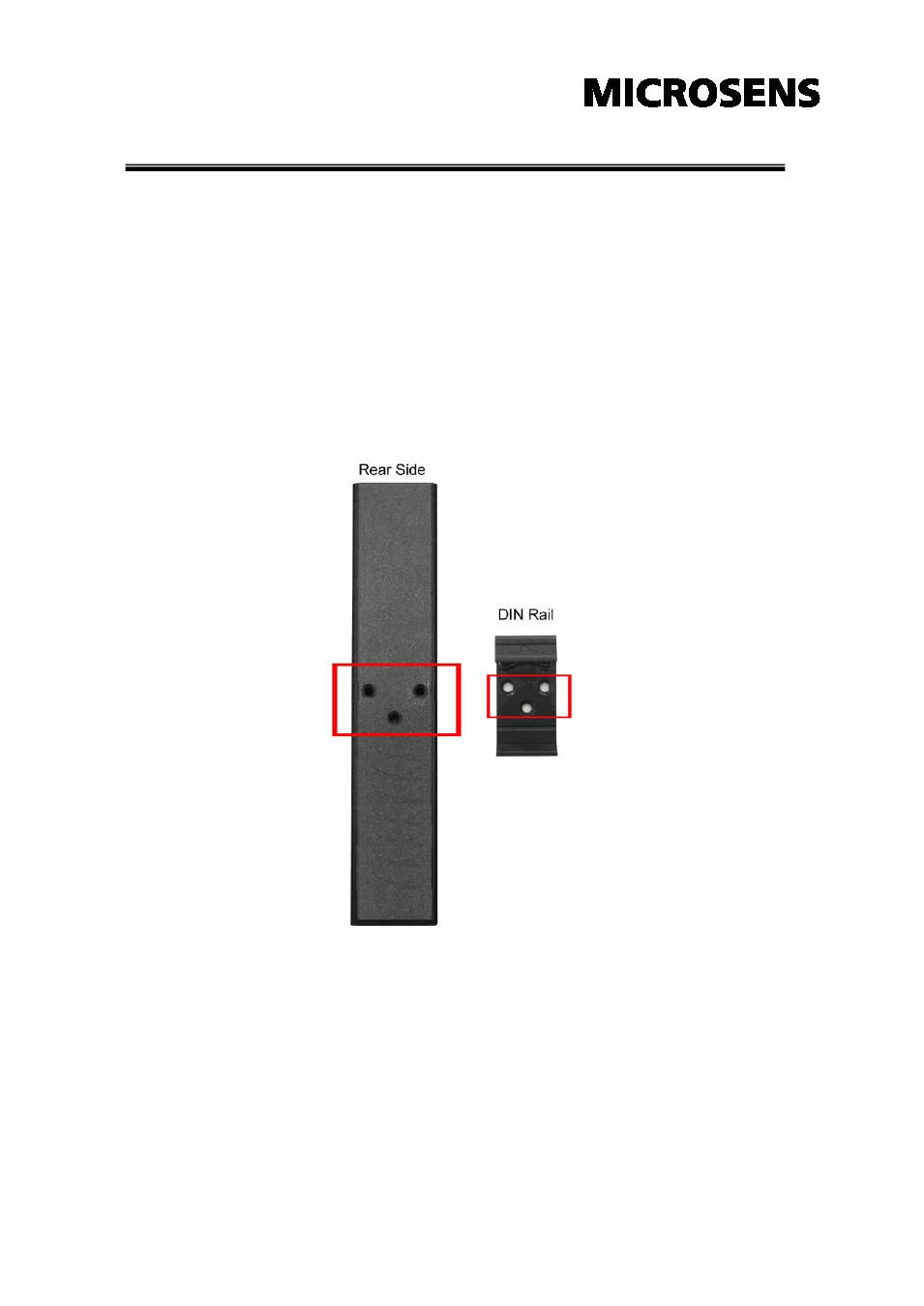

The DIN-Rail is screwed on the unit when out of factory. If the DIN-Rail is
not screwed on the unit, please see the pictures and follow the steps
below to screw the DIN-Rail on the unit.
1. Use the screws to screw the DIN-Rail on the rear side of the unit.
2. To remove the DIN-Rail, reverse the step 1.
