10
2 Receive Data minus (RD-) Transmit Data minus (TD-)
3 Transmit Data plus (TD+) Receive Data plus (RD+)
6 Transmit Data minus (TD-) Receive Data minus (RD-)

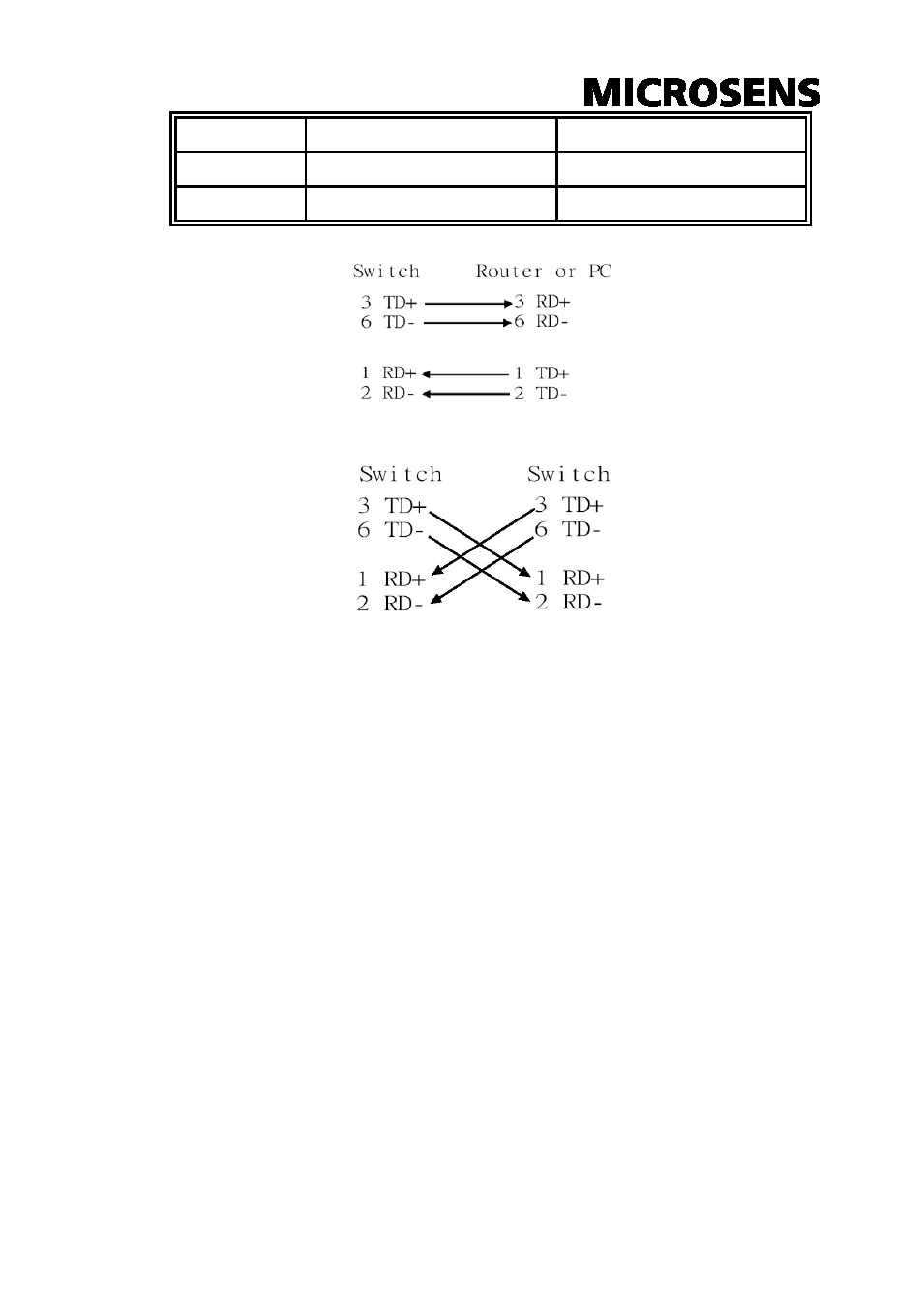

Straight Through Cable Schematic
Cross Over Cable Schematic
 Fiber Port
The fiber port of SC type connector can work in multi mode (2Km) or
single mode (30Km).
When you connect the fiber port to another one, please follow the figure
below to connect accordingly. Wrong connection will cause the port
cannot work normally.
