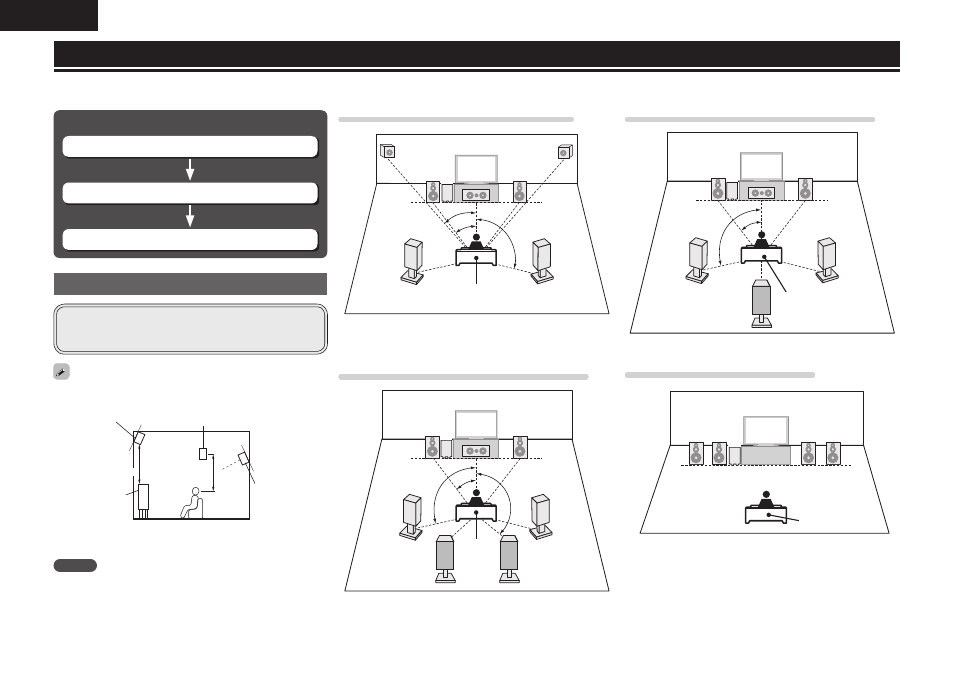

When 6.1ch (Surround back speaker) installed
FL FR
C
SB
SL SR
SW
z 1 z 2
Listening position
z 1 22˚ – 30˚ z 2 90˚ – 110˚
When Front A/B speakers installed
FR(A) FR(B)
SW
FL(B) FL(A)
Listening position
FL Front speaker (L) SBL Surround back speaker (L)
FR Front speaker (R) SBR Surround back speaker (R)
C Center speaker FHL Front height speaker (L)
SW Subwoofer FHR Front height speaker (R)
SL Surround speaker (L)
SR Surround speaker (R)
Procedure for speaker settings
Install
Connect (vpage 29)
Set up speakers (vpage 31)
Install
This unit is compatible with Dolby Pro Logic gz (vpage 69),
which offers an even wider and deeper surround sensation.
When using Dolby Pro Logic gz, install front height speakers.
Install the surround back speakers in a position 2 to 3 ft (60 to 90 cm)
higher than ear level.
z
Surround
speaker
2 – 3 ft /
60 – 90 cm
G Viewed from the sideH
Front height
speaker
• Point slightly
downwards
At least
3.3 ft / 1 m
Surround back
speaker
• Point slightly
downwards
Front
speaker
z Recommended for Dolby Pro Logic gz
NOTE
It is not possible to use the surround back speakers and front height
speakers simultaneously.
When 7.1ch (Front height speaker) installed
FL FR
FHR FHL
C
SL SR
SW
z 1
z 2
z 3
Listening position
z 1 22˚ – 30˚ z 2 22˚ – 45˚ z 3 90˚ – 110˚
When 7.1ch (Surround back speaker) installed
FL FR
C
SBL SBR
SL SR
SW
z 1
z 2
z 3
Listening
position
z 1 22˚ – 30˚ z 2 90˚ – 110˚ z 3 135˚ – 150˚
Speaker installation/connection (Other than 5.1-channel)
Here we describe the installation, connection and setup methods for speakers other than 5.1-channel speakers. For the installation, connection and setup methods
for 5.1-channel speakers, see “Simple version (Simple setup guide)” (vpage 3).
