Metro TM MPE-7800 Series NiMH Power Supply Operations Manual Supplement, Doc. No. L01-504 35
InterMetro Industries Corporation
Status
Click on the “Status” tab to view a quick glance summary of the power supply battery history
and the BatteryPro version.

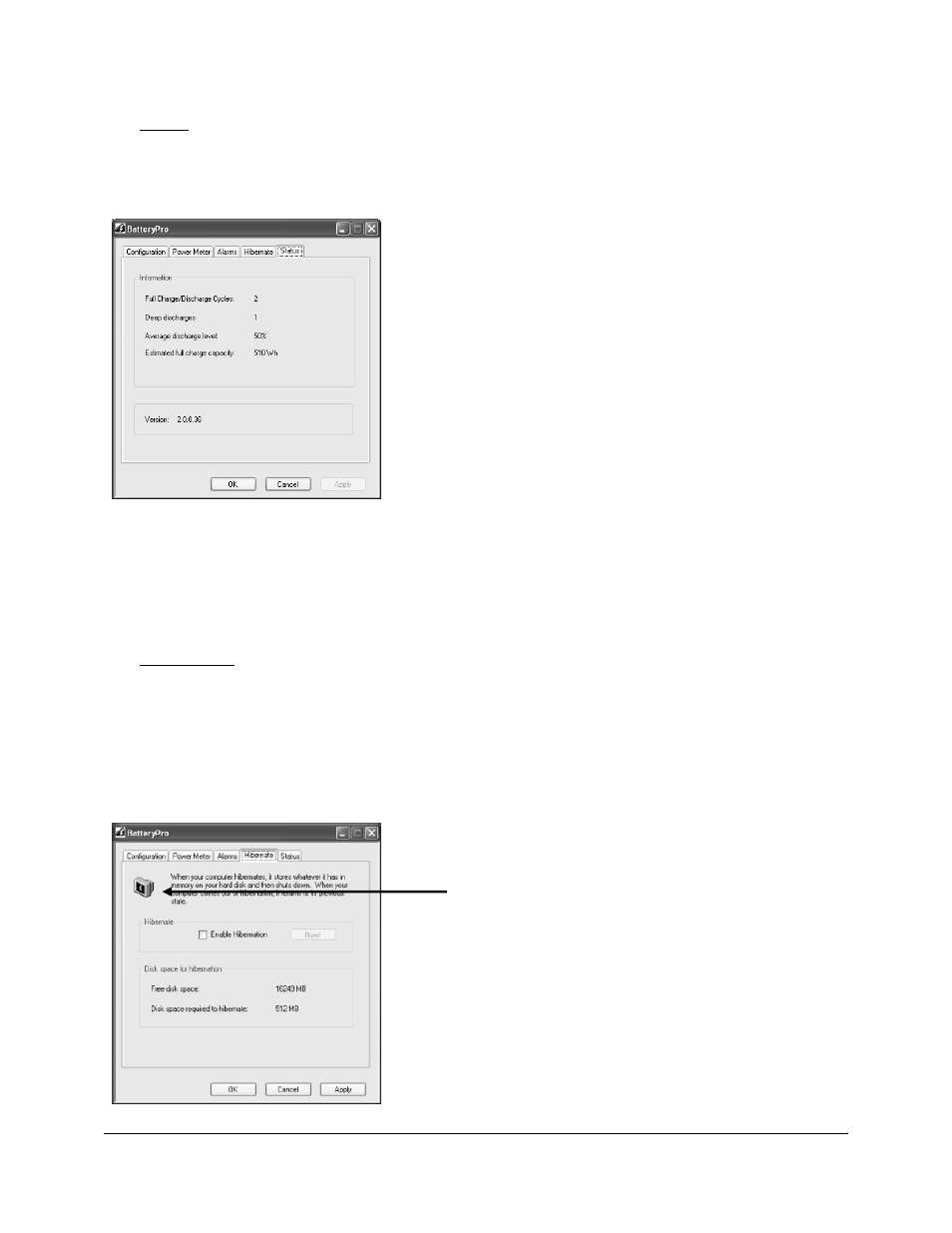

Status Tab Display
Select “Status” tab in BatteryPro dialog.
Display includes power supply battery
information:
1. Charge cycle history
2. Estimated capacity
Display also includes current BatteryPro software
version.
Click on “Apply” or “OK” button to apply new
values. “OK” also minimizes the dialog back to
the status tray.
Click on “Cancel” button or “X” to minimize the
dialog back to the status tray icon without
applying changes.
Click on another tab to view or edit other settings.
Diagnostics
When revealed, clicking on the “Diagnostics” tab provides a running list of power supply and
battery data for troubleshooting purposes. The “Diagnostics” tab is advanced functionality not
meant for the general user.
Notice: The hidden BatteryPro “Diagnostics” tab is revealed by holding down the “Ctrl” key and
clicking on the Monitor icon in the “Hibernate” tab display: see “Hibernate” above.
Reveal Diagnostics Tab
Select “Hibernate” tab in BatteryPro dialog.
While holding down “Ctrl” key, click on Monitor
icon in upper left of dialog to reveal hidden
“Diagnostics” tab.
