Metro TM MPE-7800 Series NiMH Power Supply Operations Manual Supplement, Doc. No. L01-504 31
InterMetro Industries Corporation
Alarms
Click on the “Alarms” tab to view or allow authorized users to change low and critical battery
alert levels and actions settings. Clicking on the “Alarm Action” buttons displays additional
options for setting the messages and actions to be taken by BatteryPro when the alarms occur.

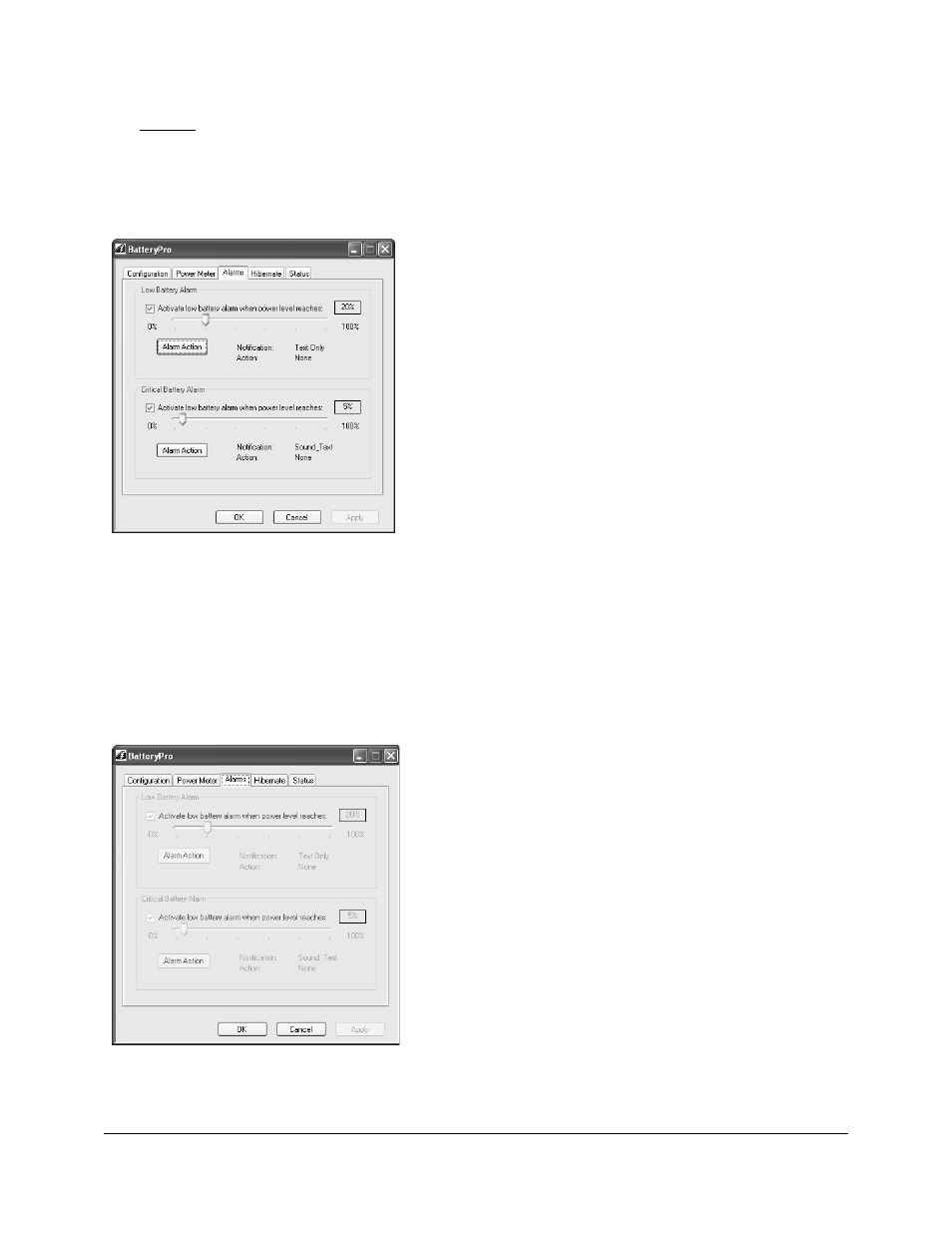

Default Alarms Tab Display
Select “Alarms” tab in BatteryPro dialog.
Set Low Battery and Critical Battery Alarm
threshold levels by:
1. Click check box to activate alarm.
2. Click on and while holding down mouse
button, drag pointer on threshold slide
bar. Percentage is battery discharge
level when the alarm will activate
Notification and perform the Action
shown.
3. Click on “Alarm Action” button to set
Alarm actions. New dialog will pop up
(see below).
Click on “Apply” or “OK” button to apply new
values. “OK” also minimizes the dialog back to
the status tray.
Click on “Cancel” button or “X” to minimize the
dialog back to the status tray icon without
applying changes.
Click on another tab to view or edit other settings.
Alarms Tab Display When User Access Is
Restricted
Alarms settings are grayed out and not available
to be changed when a user has been restricted.
Click on “Apply” or “OK” button to apply new
values. “OK” also minimizes the dialog back to
the status tray.
Click on “Cancel” button or “X” to minimize the
dialog back to the status tray icon without
applying changes.
Click on another tab to view or edit other settings.
