30 Metro TM MPE-7800 Series NiMH Power Supply Operations Manual Supplement
InterMetro Industries Corporation
• The Desktop Status Window is disabled and hidden from view immediately by left clicking on
to un-check or clear the box on the Scheme tab. This performs the same function as the
procedure in “Hiding the Desktop Status Window” above.
Power Meter
Click on the “Power Meter” tab to view the current summary information about the power source
and batteries.

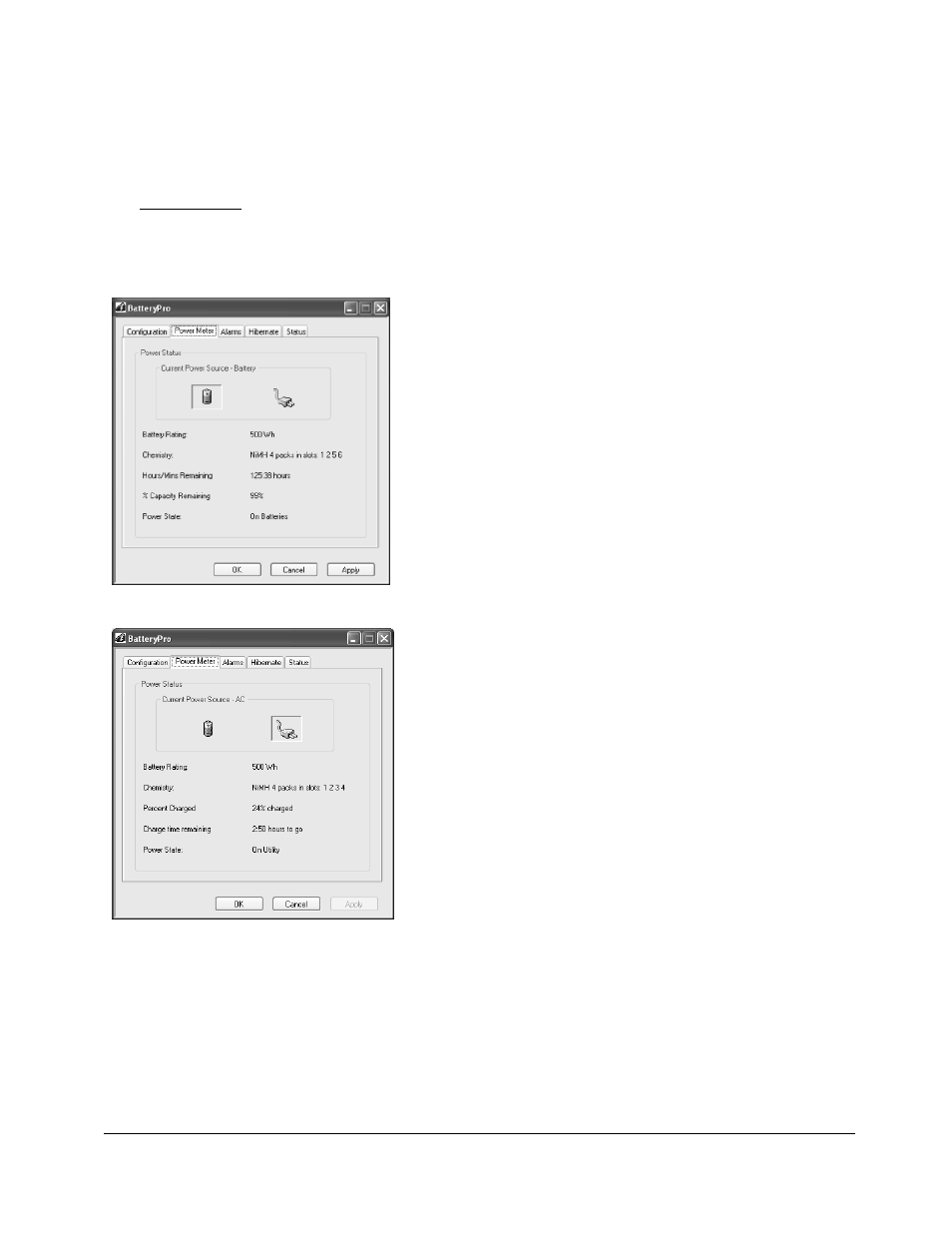

Power Meter Tab Display: On Batteries
Select “Power Meter” tab in BatteryPro dialog.
Shown at left is indication of running off battery.
Display includes battery specifications, calculated
run time and percent capacity of charge
remaining.
Click on “Apply” or “OK” button to apply new
values. “OK” also minimizes the dialog back to
the status tray.
Click on “Cancel” button or “X” to minimize the
dialog back to the status tray icon without
applying changes.
Click on another tab to view or edit other settings.
Power Meter Tab Display: On AC
Select “Power Meter” tab in BatteryPro dialog.
Shown at left is indication of plugged in and
running off AC and charging.
Display includes battery specifications, percent of
capacity charged and time remaining until fully
charged.
Click on “Apply” or “OK” button to apply new
values. “OK” also minimizes the dialog back to
the status tray.
Click on “Cancel” button or “X” to minimize the
dialog back to the status tray icon without
applying changes.
Click on another tab to view or edit other settings.
