Pointscan/204, Overview, Wiring – Measurement Computing PointScan 200 Series rev.1.0 User Manual

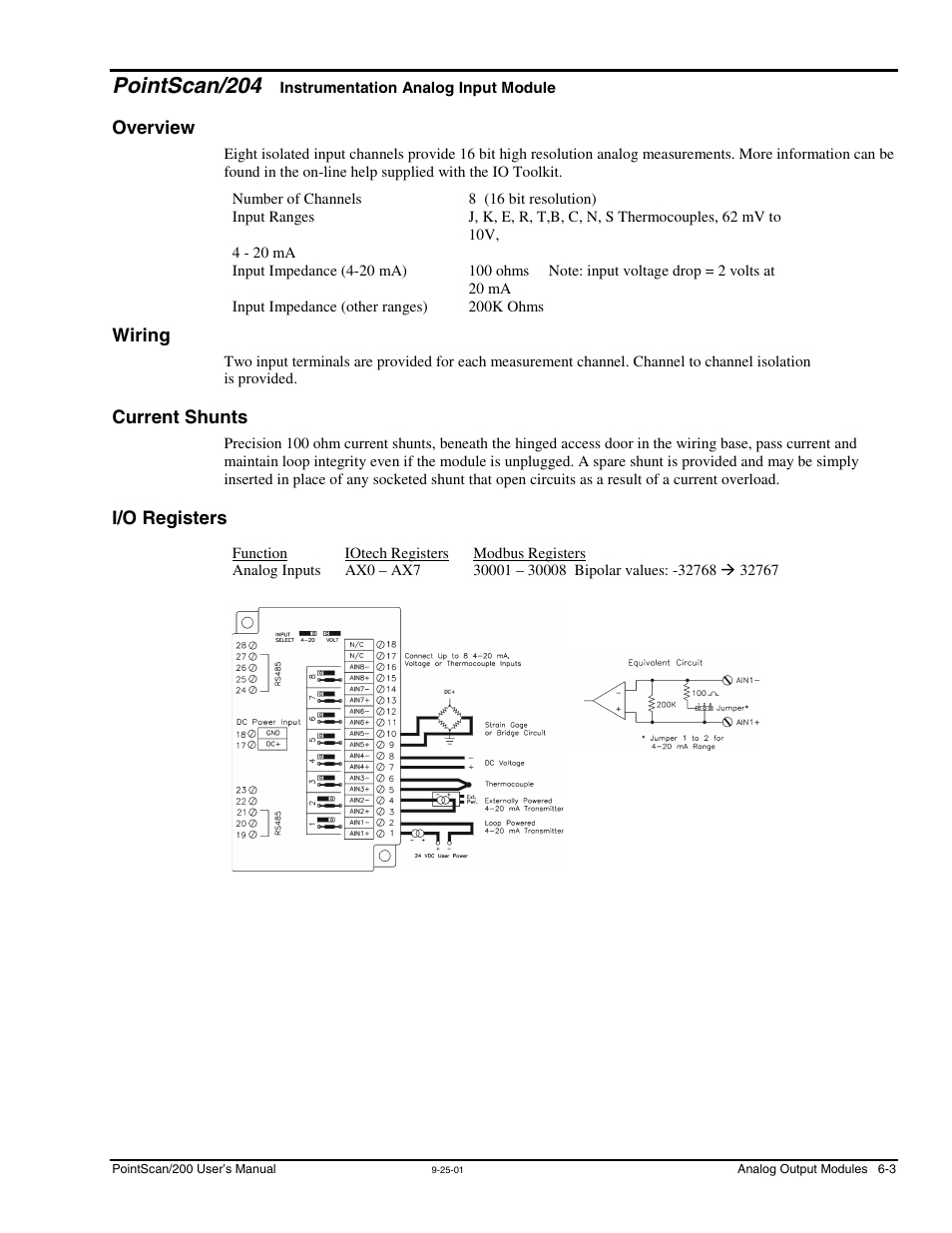

Page 27: Current shunts, I/o registers, Instrumentation analog input, Module
