Measurement Computing CIO-DAC08/16 - Manual (Page 12)

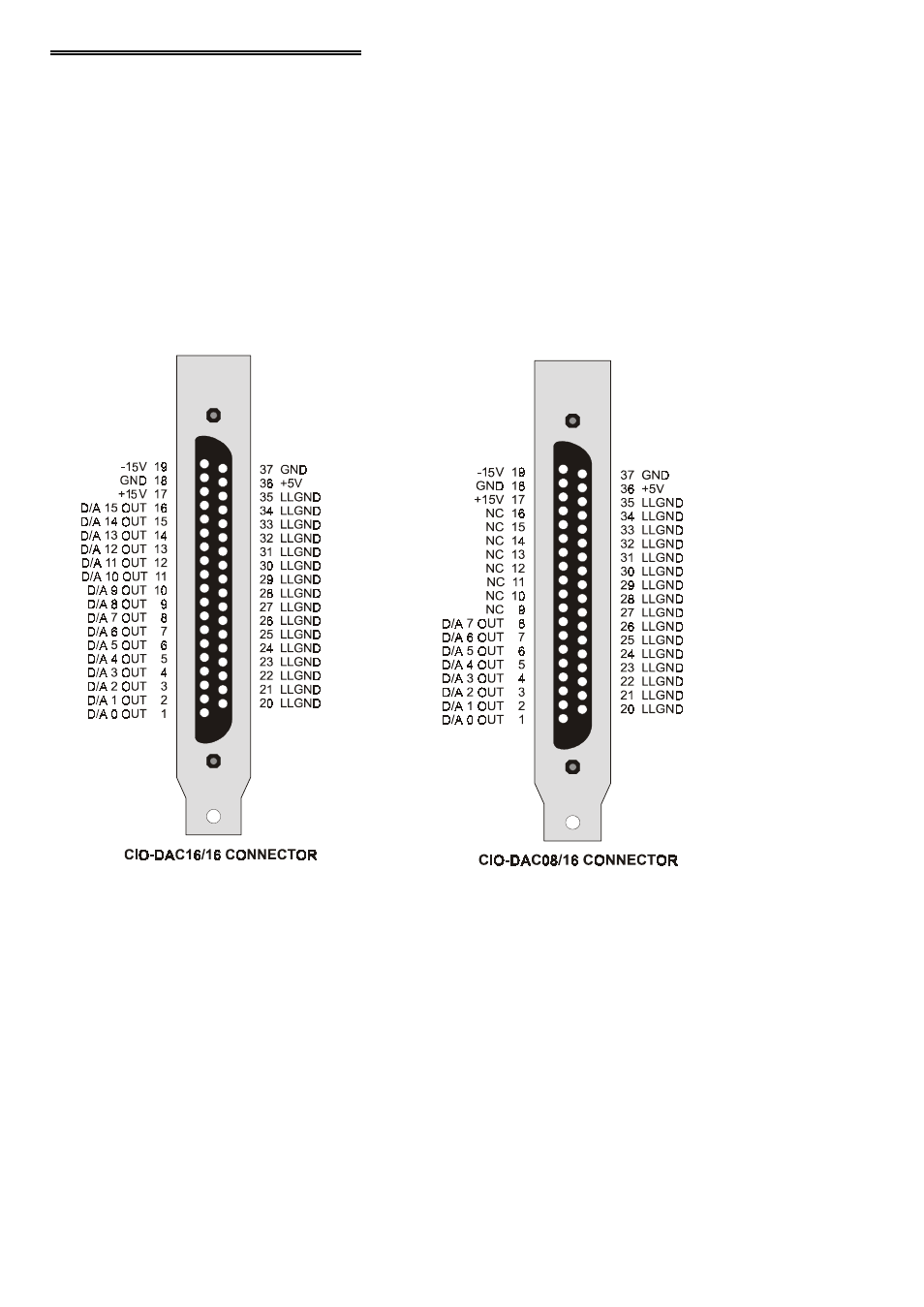

3.8 CONNECTOR DIAGRAM
Both the CIO-DAC16/16 and DAC08/16 are 37 pin D type connectors accessible
from the rear of the PC through the expansion backplate.
The connector accepts female 37-pin, D-type connectors, such as those on the
C37FF-2, a 2-foot cable with connectors.
If frequent changes to signal connections or signal conditioning is required, please
refer to the information on the CIO-TERMINAL, CIO-SPADE50 and CIO-MINI37
screw terminal boards in the Measurement Computing catalog.
8
