Rac system (rotary actuated creasing), Assembly – MBM Corporation iCREASE AIR User Manual
Page 32

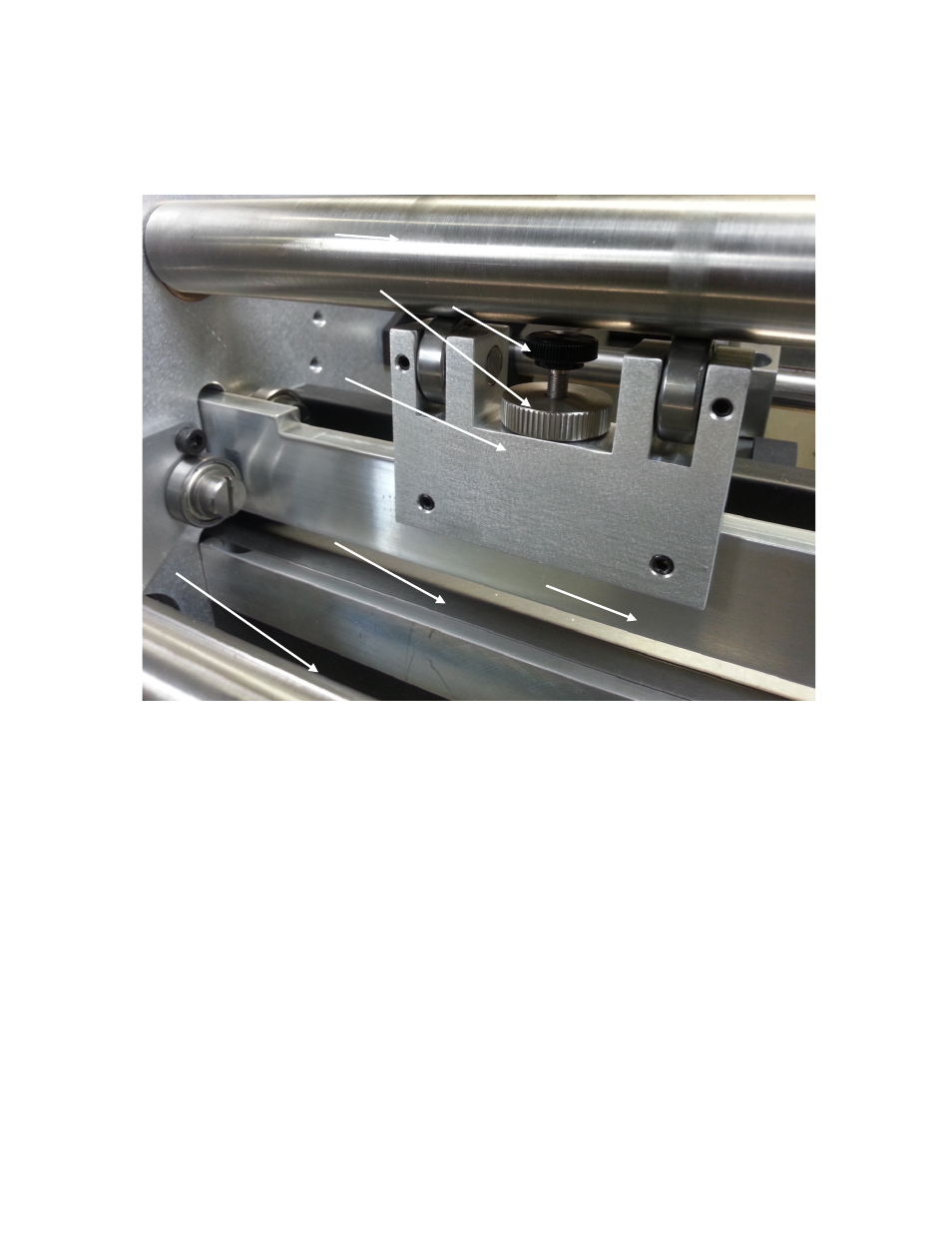

RAC System (Rotary Actuated Creasing)
Assembly
Component ID
A. RAC drive motor
B. Eccentric Drive Shaft
C. Upper crease die
D. Pressure Adjust bearing blocks (RAC Rollers)
E. Lower crease die
F. Drive chain & tensioner SEE DRIVE CHAIN TENSIONER ON PAGE 13
G. Return springs SEE SERVICE DIAGRAM A ON PAGE 21
H. Compression bracket RAC locknut F-2640
I. Compression Bracket Adjust Screw Assy
29
A
B
C
D
E
H
I
