Interfaces

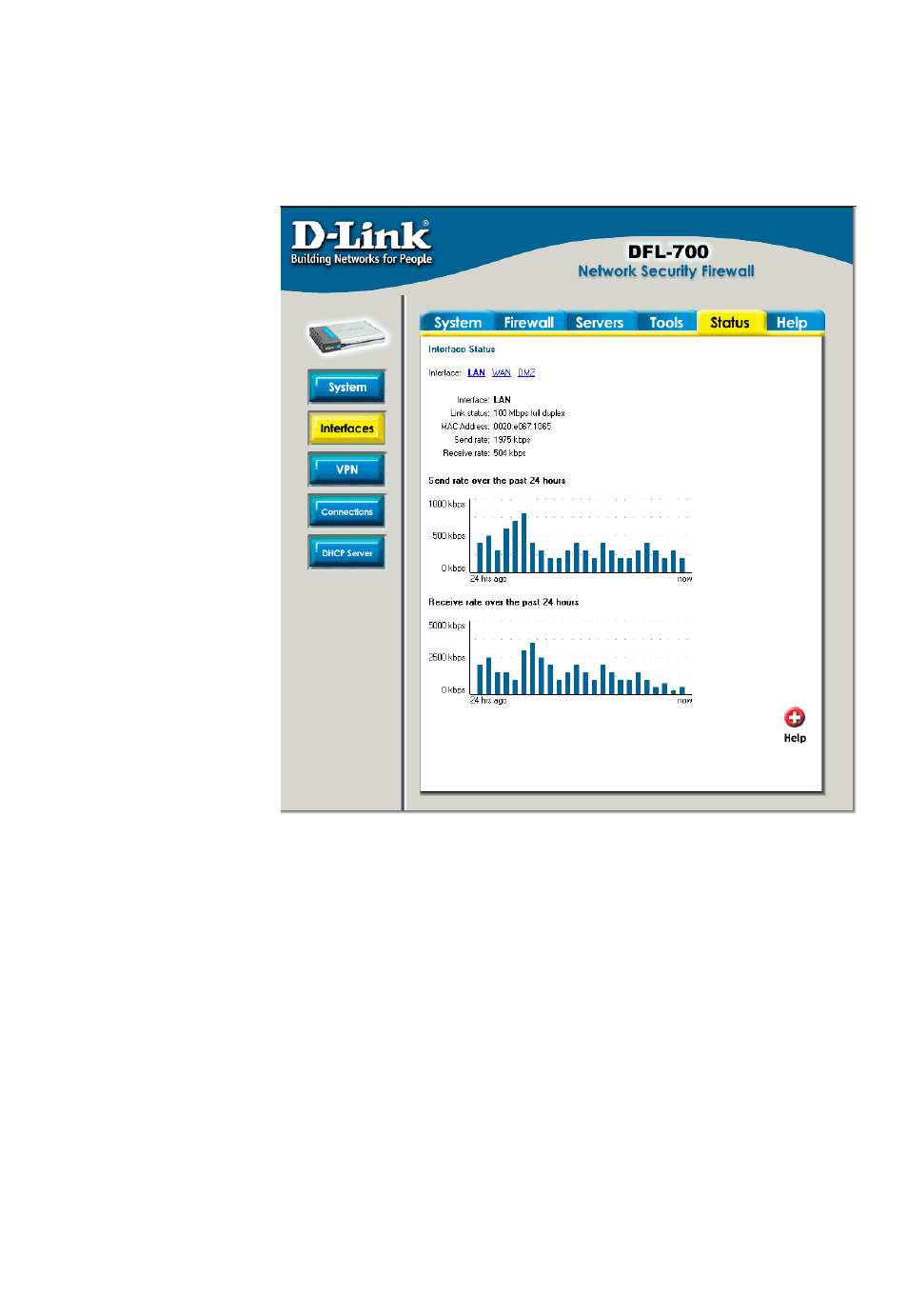

Click on Status in the menu bar, and then click Interfaces below it. A window will appear
providing information about the interfaces in the DFL-700. By default information about the
LAN interface will be show, to see another one click on that interface (WAN or DMZ).
Interface – Name of
the interface shown,
LAN, WAN or DMZ.
Link status –
Displays what link the
current interface has,
the speed can be 10 or
100 Mbps and the
duplex can be Half or
Full.
MAC Address –
MAC address of the
interface.
Send rate – Current
amount of traffic sent
trough the interface.
Receive rate –
Current amount of traffic
received trough the
interface.
There are also two
graphs displaying the
send and receive rate
trough the interfaces
during the last 24 hours.
