Electrical characteristics curves – Delta Electronics F48SA User Manual
Page 7
ELECTRICAL CHARACTERISTICS CURVES

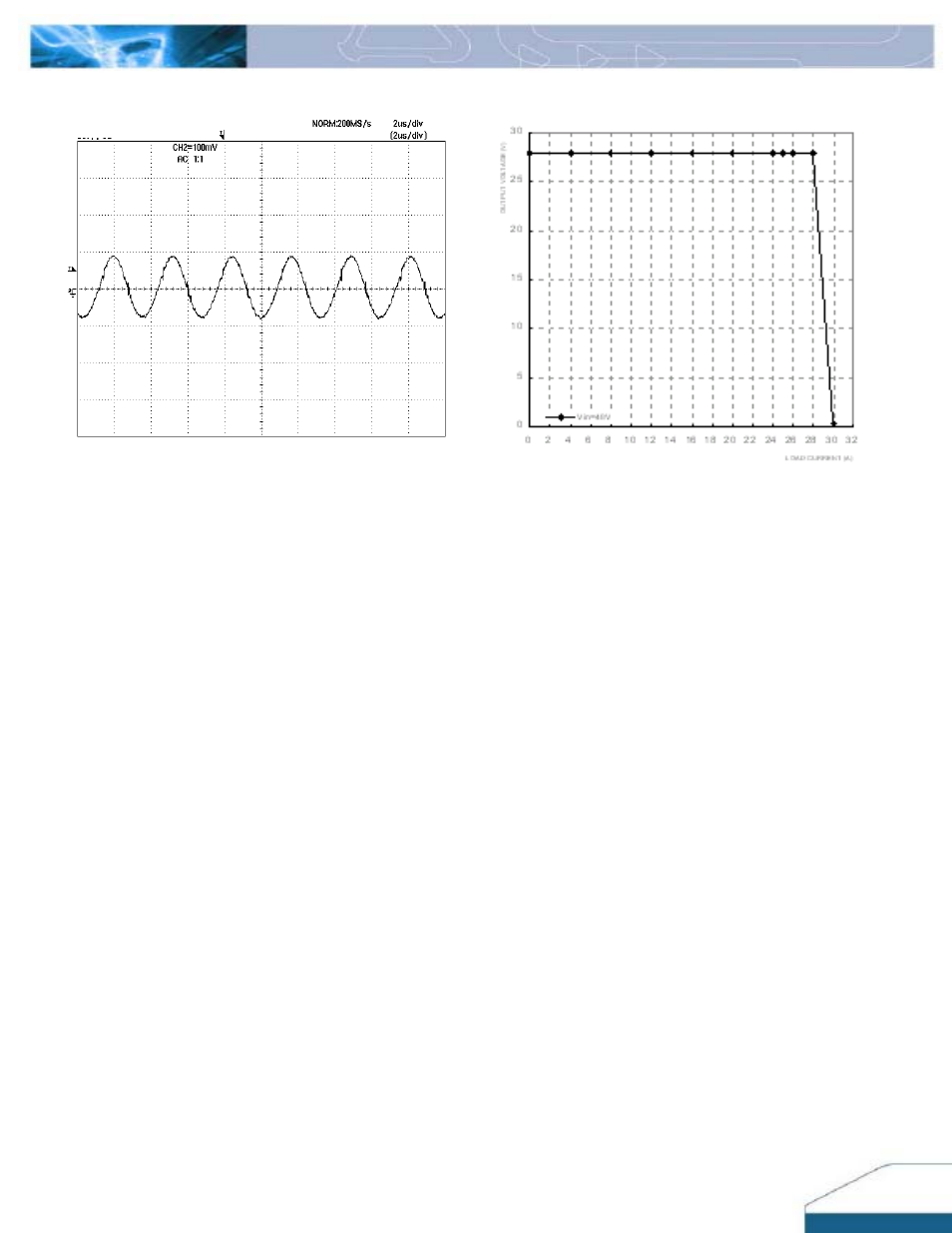

Figure 13:
Output voltage ripple at nominal input voltage and
rated load current (100 mV/div). Load capacitance:470uF
aluminum, 1µF ceramic capacitor and 10µFlow ESR capacitor.
Bandwidth: 20 MHz. Scope measurement should be made
using a BNC cable (length shorter than 20 inches). Position the
load between 51 mm to 76 mm (2 inches to 3 inches) from the
module.
Figure 14:
Output voltage vs. load current showing typical
current limit curves and converter shutdown points.
DS_F48SA28025_12072007
7
