Electrical characteristics curves – Delta Electronics F48SA User Manual
Page 4

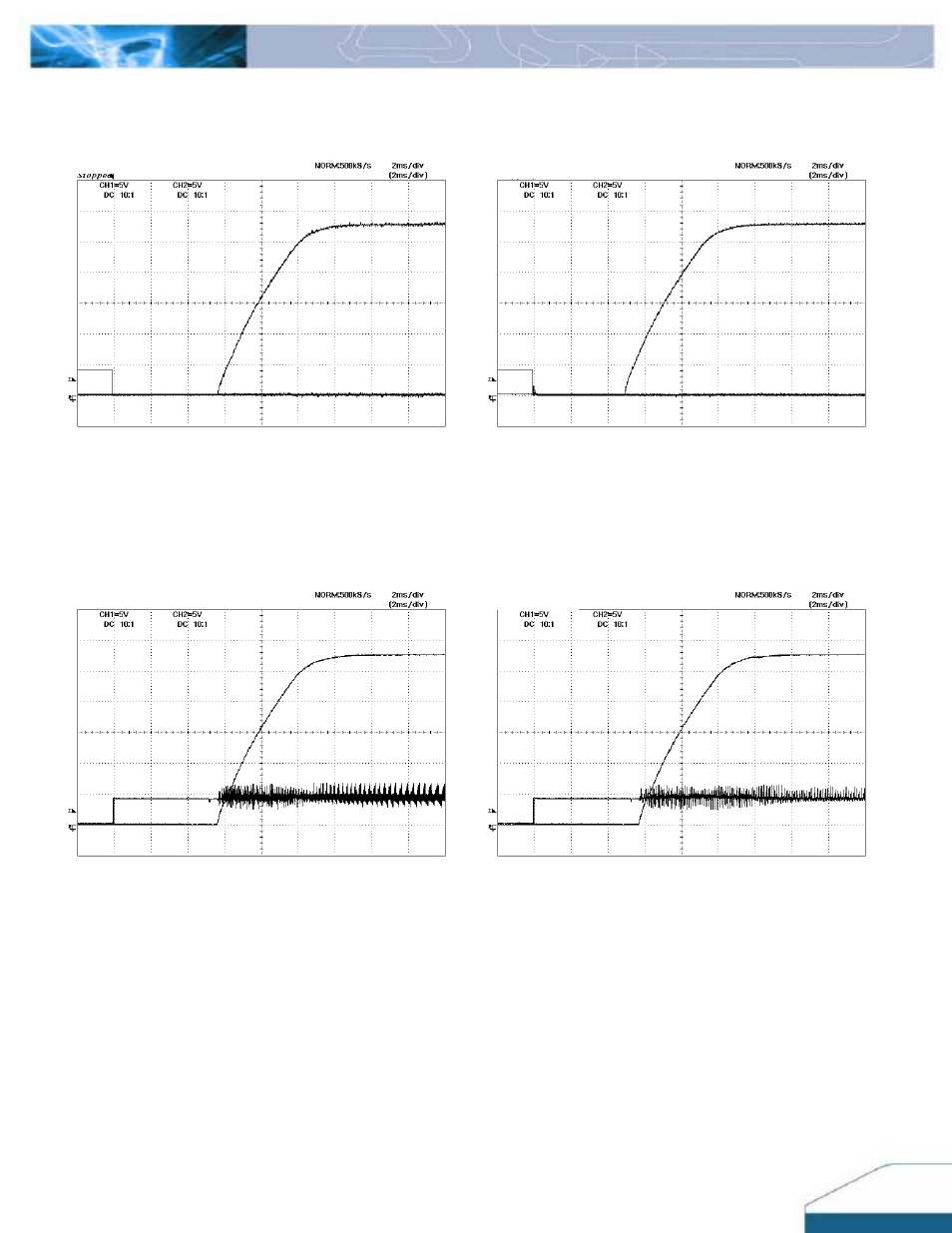

ELECTRICAL CHARACTERISTICS CURVES
For Negative Remote On/Off Logic
Figure 3:
Turn-on transient at full rated load current (resistive
load). CH3: Vout;5V/div; CH1: ON/OFF input: 5V/div
Figure
4:
Turn-on transient at minimum load current
. CH3: Vout: 5V/div; CH1: ON/OFF input:5V/div
For Positive Remote On/Off Logic
Figure 5:
Turn-on transient at full rated load current (resistive
load) (10ms/div). Top Trace: Vout; 5V/div; Bottom Trace:
ON/OFF input: 2V/div
Figure
6:
Turn-on transient at minimum load current
(10ms/div). Top Trace: Vout: 5V/div; Bottom Trace: ON/OFF
input: 2V/div
DS_F48SA28025_12072007
4
