step 7 (optional)
Auxiliary Channel
When the button is pressed for 1.5 seconds the
RED/WHITE (H1/14) wire will supply (-)200 mA output as
long as the transmission continues. This is often used to operate
a trunk/hatch release or other relay-driven functions.
note: If the on-line wiring information shows a 5-wire
trunk release system, please contact READY REMOTE
Technical Support for further instructions.

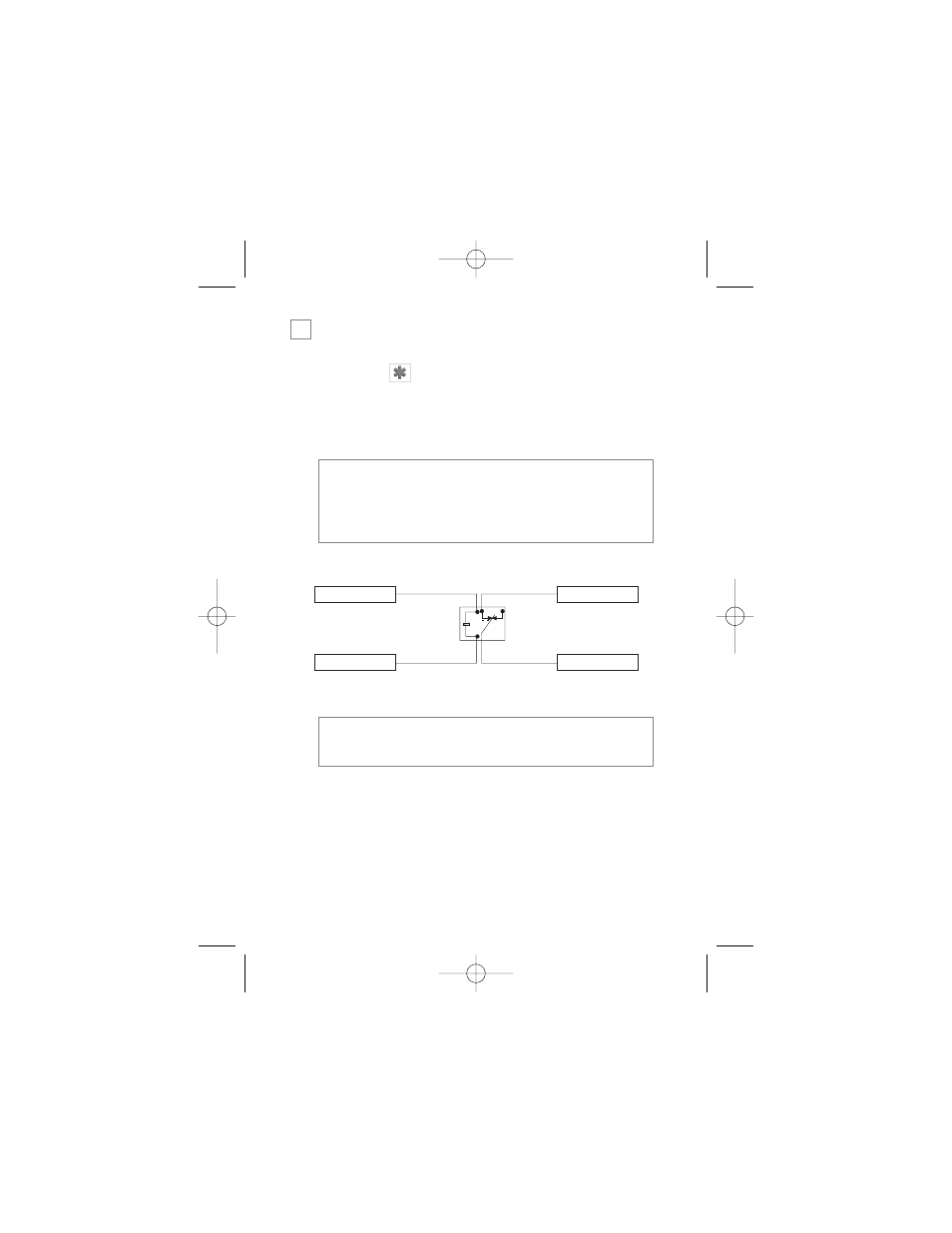

H1/12 RED/WHITE
(+) 12V CONSTANT FUSED
85
86
30
87 87A
DIA-4
(+) 12V IF (+) SWITCHED
(-) GROUND IF (-) SWITCHED
SWITCHED TRUNK
RELEASE WIRE
iim mp poorrttaan ntt:: Never use these wires to drive anything but a
relay or a low-current input! The transistorized output
can only supply (-)200 mA of current. Connecting
directly to a solenoid motor, or other high-current device
will cause it to fail.
PROG PROG
ARM ARM
DISARM DISARM
➜
