17 © 2 0 0 6 d i r e c t e d e l e c t r o n i c s
H2/7
H2/6
H2/5
H2/4
H2/3
H2/2
LOCK
RELAY
UNLOCK
RELAY
#87
#87A
#30A
#87
#87A
#30A

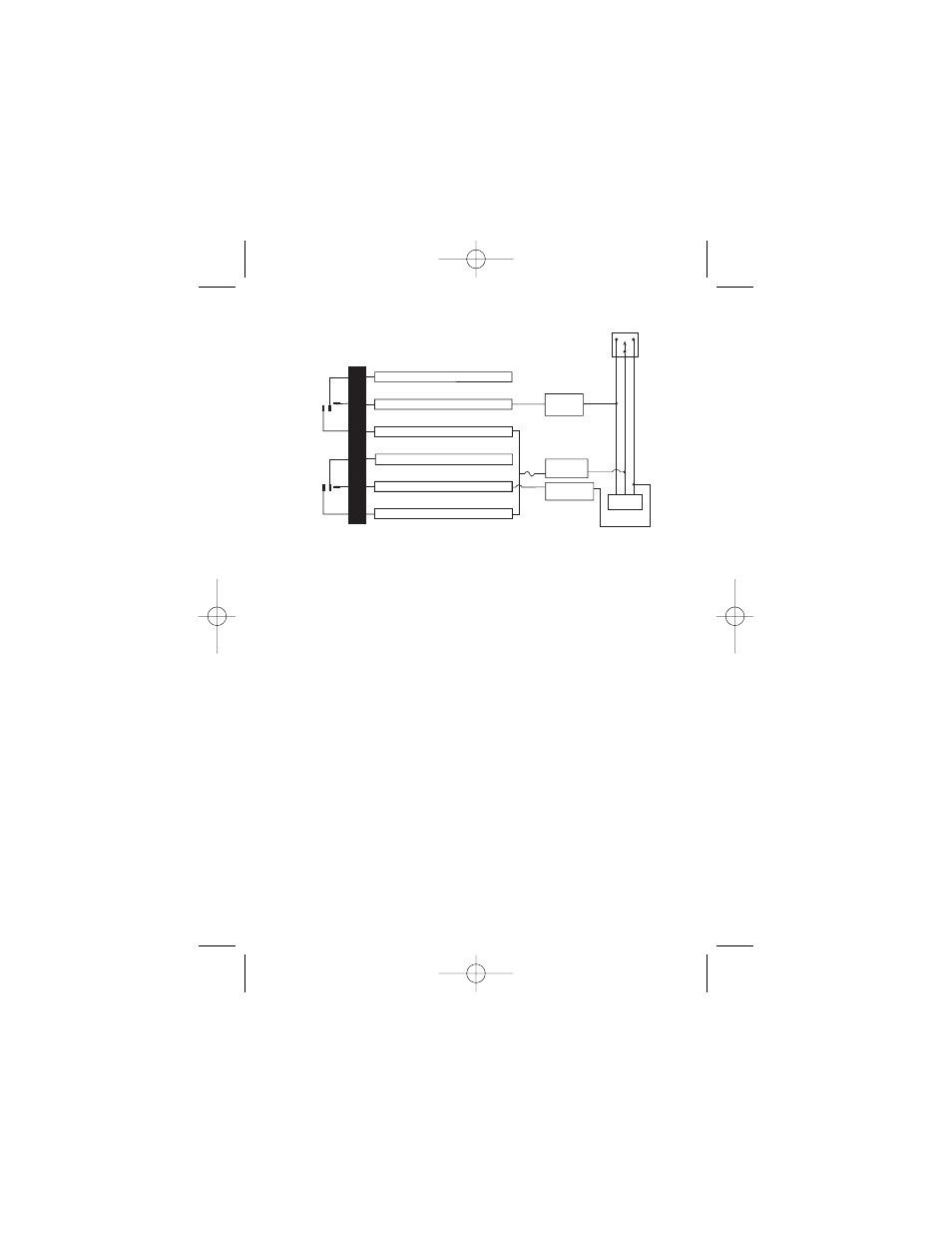

VEHICLE (+)
LOCK TRIGGER
CIRCUIT
VEHICLE FUSED
+12 VOLT
CONSTANT
VEHICLE (+)
UNLOCK TRIGGER
CIRCUIT
LOCK UNLOCK
FACTORY LOCK
SWITCH
TO FACTORY
RELAYS
GREEN/BLACK LOCK #30 COMMON (OUTPUT)
WHITE/BLACK NOT USED
VIOLET/BLACK LOCK #87 NORMALLY OPEN (INPUT)
BROWN/BLACK NOT USED
BLUE/BLACK UNLOCK #30 COMMON (OUTPUT)
VIOLET UNLOCK #87 NORMALLY OPEN (INPUT)
15A
