- 21 -
Installation

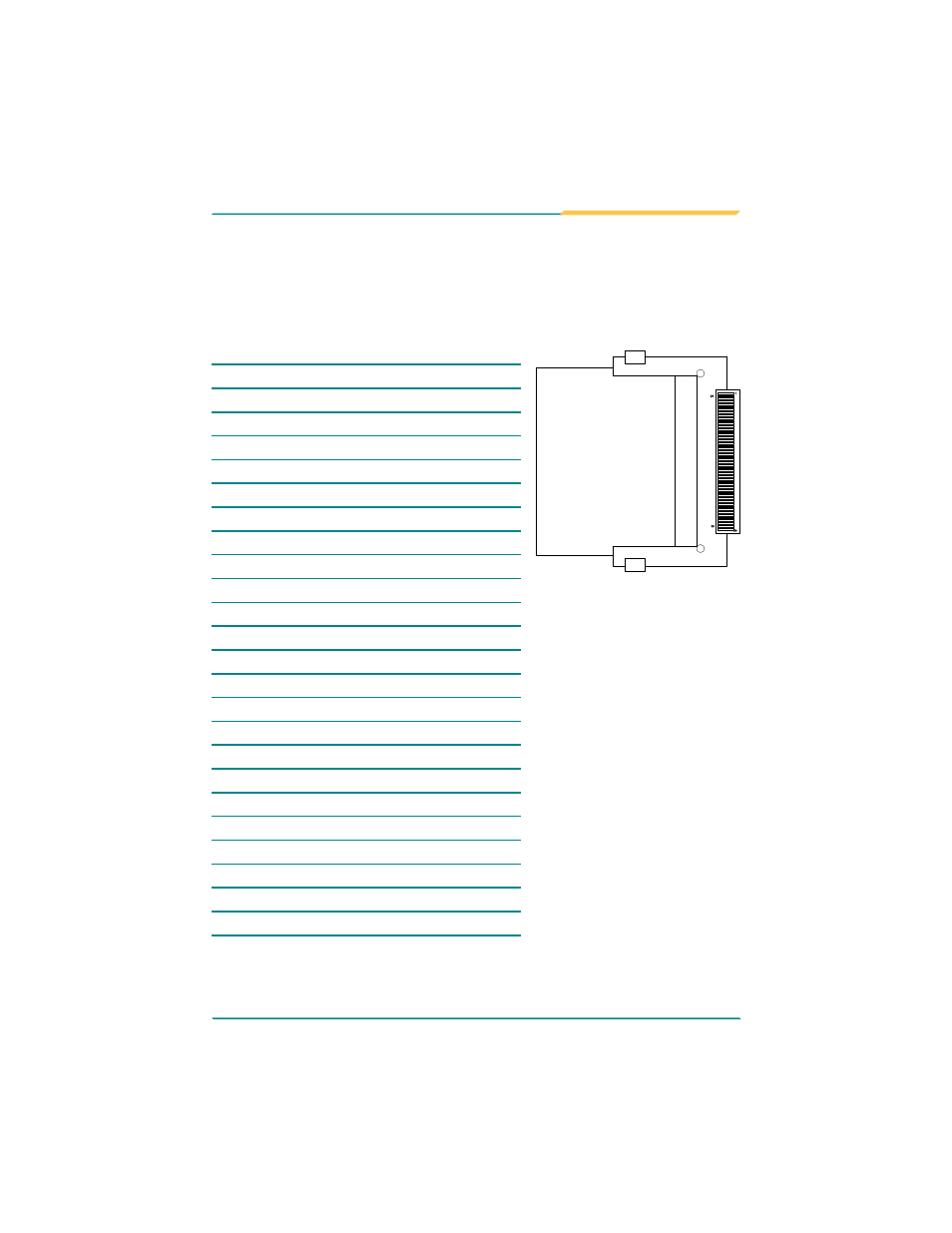

CFD1: CompactFlash II Socket
CFD1 does not support hot swap.
'HIDXOWHGE\¿UVW,'(6ODYH
2 5
5 0
2 6 1
Pin Description Pin Description
1 PDD3 26 GND
2 PDD4 27 PDD11
3 PDD5 28 PDD12
4 PDD6 29 PDD13
5 PDD7 30 PDD14
6 CS#0 31 PDD15
7 GND 32 CS#1
8 GND 33 GND
9 GND 34 PDIOR#
10 GND 35 PDIOW#
11 GND 36 +5V
12 GND 37 IRQ14
13 +5V 38 +5V
14 GND 39 CSEL#
15 GND 40 N/C
16 GND 41 IDE_RST#
17 GND 42 PDRDY
18 PDA2 43 PDREQ
19 PDA1 44 PDACK#
20 PDA0 45 IDE_ACT#
21 PDD0 46 CFDIAG
22 PDD1 47 PDD8
23 PDD2 48 PDD9
24 CF_ICS16# 49 PDD10
25 GND 50 GND
