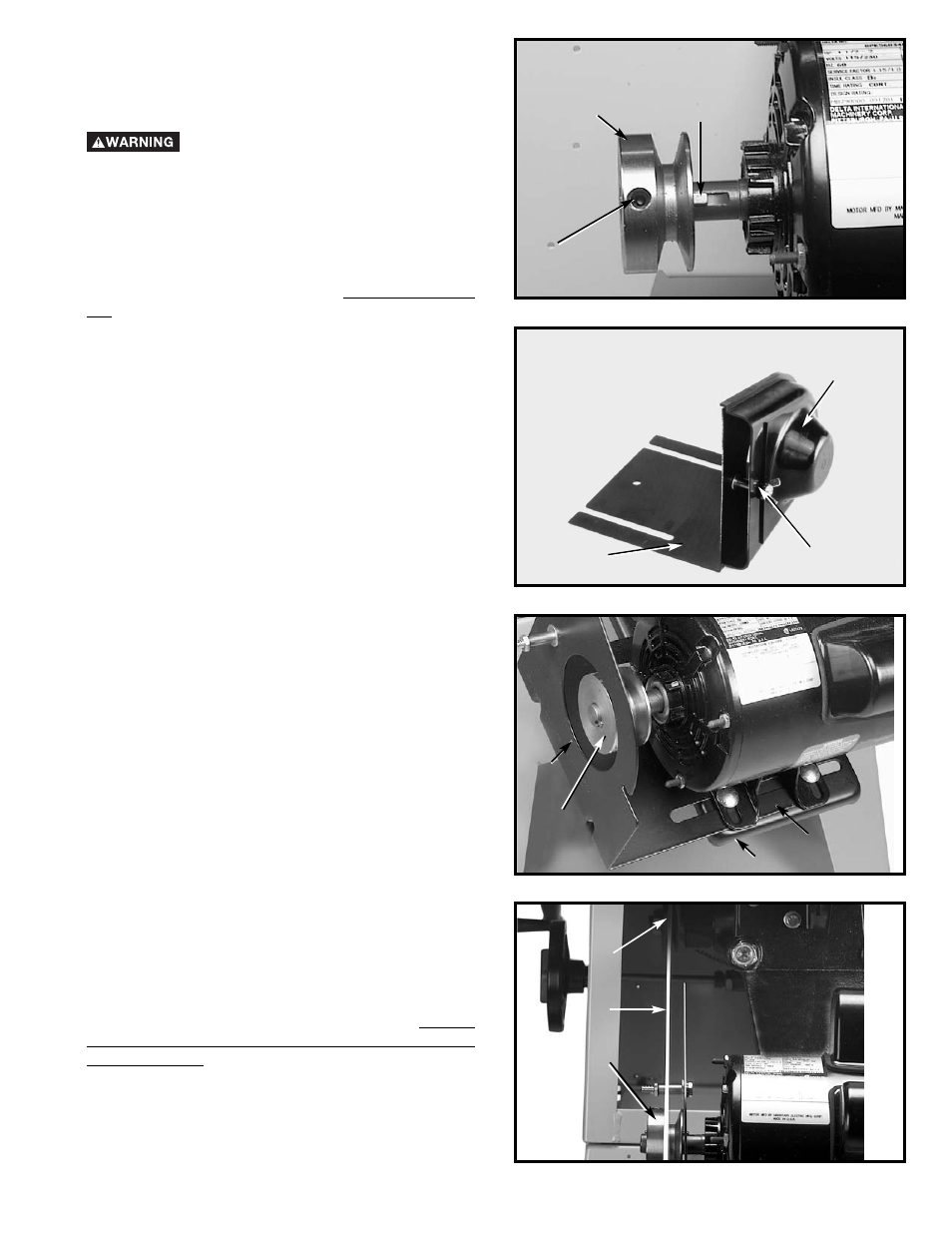

ASSEMBLING MOTOR

PULLEY, BELT PULLEY GUARD, AND

DRIVE BELT

DISCONNECT MACHINE FROM THE

POWER SOURCE.

Remove the motor shaft key that is taped to the

motor.

Insert the key (A) Fig. 15 in the keyway on the motor

shaft. Assemble the motor pulley (B) on the motor shaft
with the hub of the pulley facing out. Tighten set screw
(C).

Remove wing nut and external tooth lockwasher (D)

Fig. 16, and outer cover (E) from belt and pulley guard (G).

Slide the belt and pulley guard bracket (G) Fig. 17

between the motor plate (M) and motor mounting plate
(L), as shown.

Position belt and pulley guard bracket (G) Fig. 17, so

that the motor pulley (B) is centered and through the
hole in the belt and pulley guard bracket.

Use a straight edge (E) to align the motor pulley (B)

Fig. 18 with the arbor pulley (G). If necessary, adjust the
motor pulley (B) in or out on the motor shaft. Tighten
the four hex nuts that fasten the motor to the motor
mounting plate. See section “ASSEMBLING MOTOR
TO MOTOR MOUNTING PLATE”.
