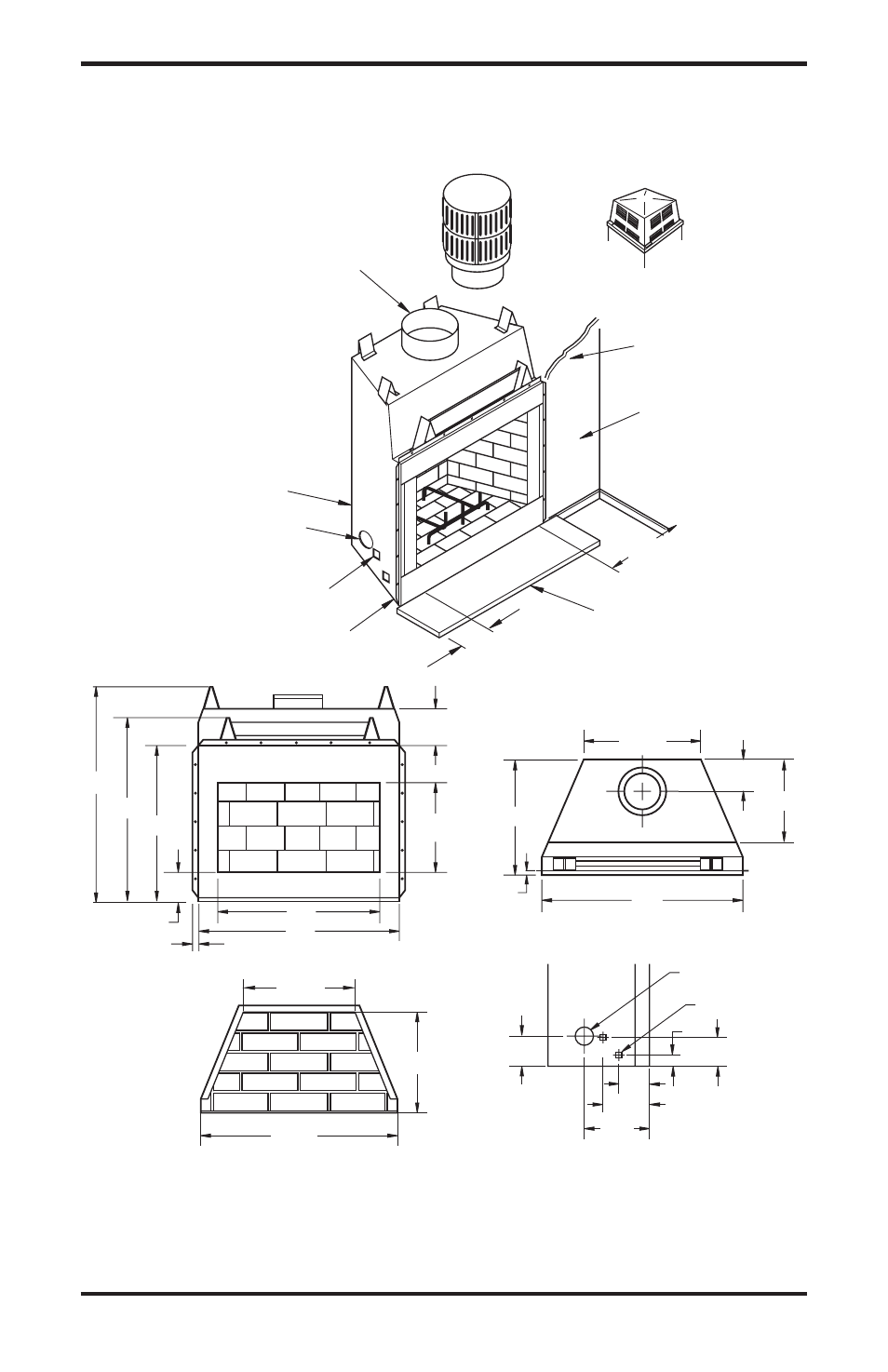

speciFications
Continued
MODELS VGM50(H) AND GM50(H)
10.5"
17"
50"
23.5"
32.75"
3.5"
13"
9.5"
8.5"
2" CHIMNEY AIRSPACE
CLEARANCE TO
COMBUSTIBLE MATERIAL
TERMINATION
SQUARE CHASE-TOP ROUND TOP TERMINATION
COMBUSTIBLE
WALL BOARD
NO COMBUSTIBLE
MATERIAL ON FACE
0" TO
BOTTOM
OUTSIDE AIR
1 1 /
2
" AIR SPACE
BACK AND SIDES
GAS LINE
KNOCKOUTS
12" EACH SIDE
MINIMUM 18" TO
PERPENDICULAR
SIDEWALL
HEARTH EXTENSION
74" X 20"
0.625"
59"
38.5"
28.5"
21.25"
11"
1"
49"
8"
58"
30"
50"
59"
12"
67"
LEFT SIDE
GAS LINE
KNOCK OUTS
AIR KIT
KNOCK OUT
