www.desatech.com 112435-01N 22
glass dooR
installation
IMPORTANT: Install glass door
frame before installing glass
door.
DOOR MODELS BDM36E/G/C,
BDM42E/G/C AND BDM50E/G/C
Assembly
Insert L-shaped gussets starting at left top por-
tion of door frame. Gusset holes should align
with screw holes on the frame. Secure using flat
head screws.

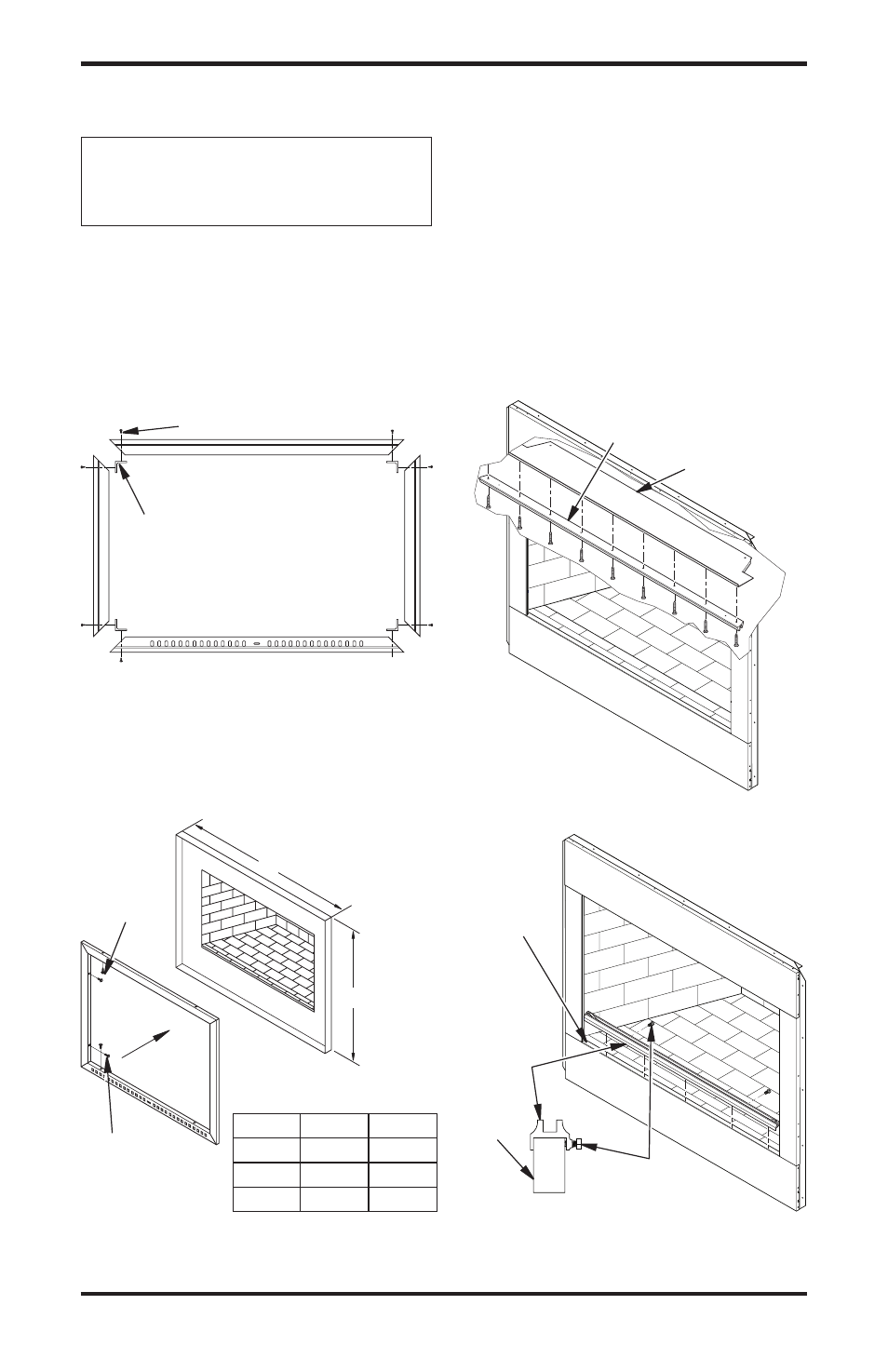

Figure 24 - Assembling Door Frame
Installation
To install glass door frame, construct an opening
(see table) on front face of fireplace. Insert door
frame into face opening and tighten screws (see
Figure 25).
Figure 25 - Installing Door Frame
1" Cap Screw
Left and Right
3/4" Cap
Screw
Top and
Bottom
A
B
L-Shaped Gusset
Flat Head Screw
Top
Bottom
MODEL A B
GM36 3"±1/4" 34"±1/4"
GM42 43"±1/4" 34"±1/4"
GM50 51"±1/4" 34"±1/4"
DOOR FRAME MODELS
BDMO36E/G/C, BDMO42E/G/C AND
BDMO50E/G/C
Installation
1. Remove screws from smoke shelf (see
Figure 26).
2. Mount top door frame and secure with screws
provided (see Figure 26).
3. Place bottom door frame on top of ash lip at
front of fireplace (see Figure 27).
4. Secure bottom door frame to brick with two
hex screws provided as shown in Figure 27 us-
ing a 7/16" open end or adjustable wrench.
Figure 27 - Installing Bottom Door Frame
Hex
Screw
Bottom
Door
Frame
Figure 26 - Installing Top Door Frame
Top Door
Frame
Smoke Shelf
Ash Lip
Ash Lip
