bRick installation
Installation of brick should be
done after the fireplace is placed
in a permanent location.
The brick housing panels are already installed in
the firebox. Each housing is stamped with a letter
(full size bricks are not stamped). These letters will
help identify the brick when installing. It is impor-
tant to install these bricks exactly as instructed.
Press the brick firmly into the brick housing until
it snaps. The groove line on the side of the brick
will come in contact with the flange on the brick
housing. This secures the brick into the housing.
See Figure 20.
The bricks are packaged in four separate boxes.
These boxes are labeled by sections of the fire-
box.
Box #1 - Hearth Panel
Box #2 - Rear Panel
Box #3 - Left or Right Panel
Box #4 - Left or Right Panel
Install the bricks one section at a time starting
with the hearth panel followed by the rear panel
and then the left or right panel. It is important to
install the bricks in sequence. Note: The left and
right panels have identical bricks. Please note, full
size bricks are NOT stamped.

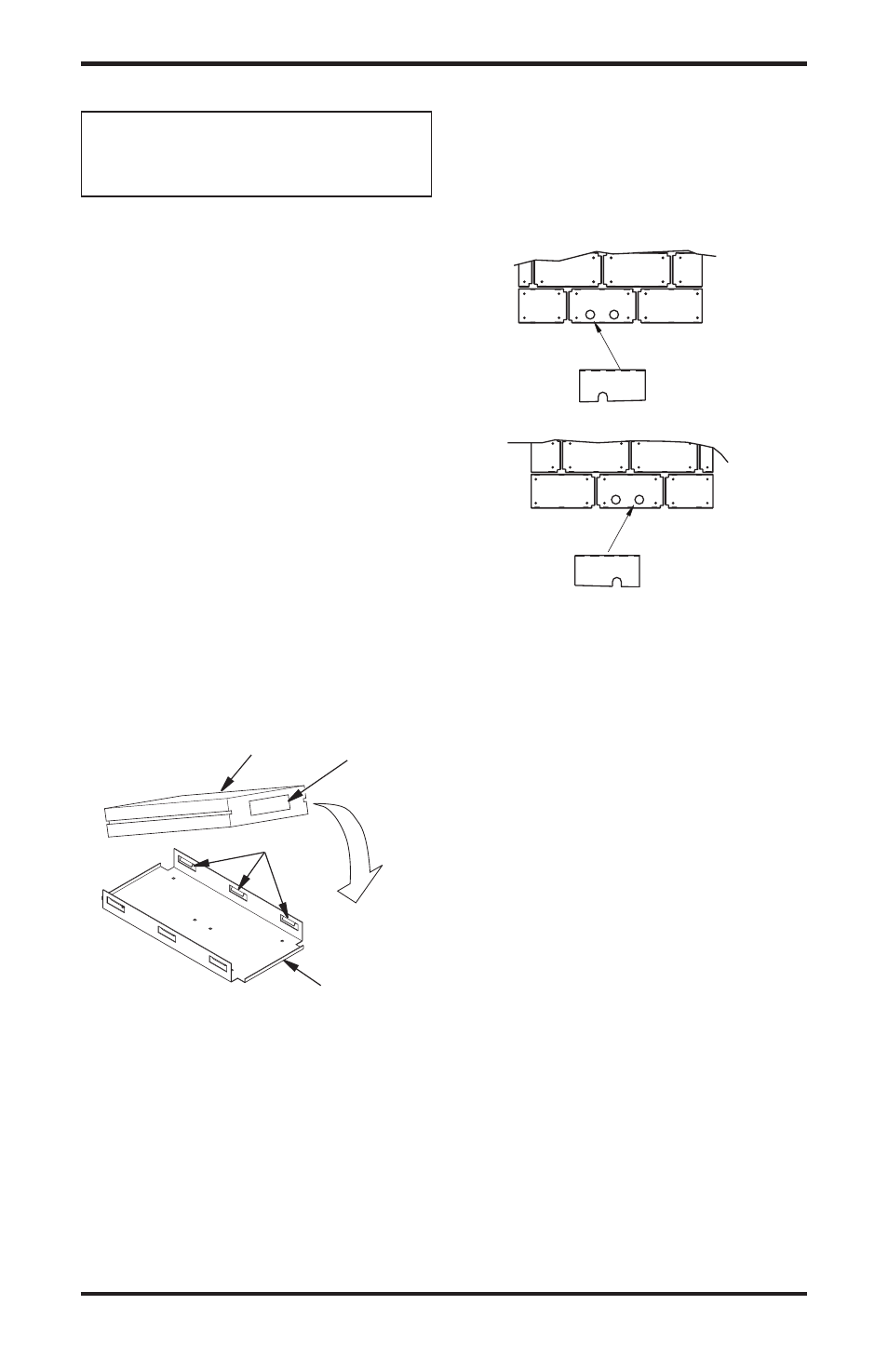

Figure 20 - Installing Brick
Brick
Stamped
Letter
Location
Brick Housing
Flanges
INSTALLING BRICK "S"
Use brick “S” if an optional gas line is installed.
Mount brick “S” as shown in Figure 21. It is
important that the knockout hole is in its proper
location. The knockout hole on brick “S” should
align with the hole on the brick housing.
LEFT PANEL
FULL FULL D
C
B
A
RIGHT PANEL
B
C A
FULL FULL D
S S
LEFT PANEL
FULL FULL D
C
B
A
RIGHT PANEL
B
C A
FULL FULL D
S S
Figure 21 - Installing Brick “S”
